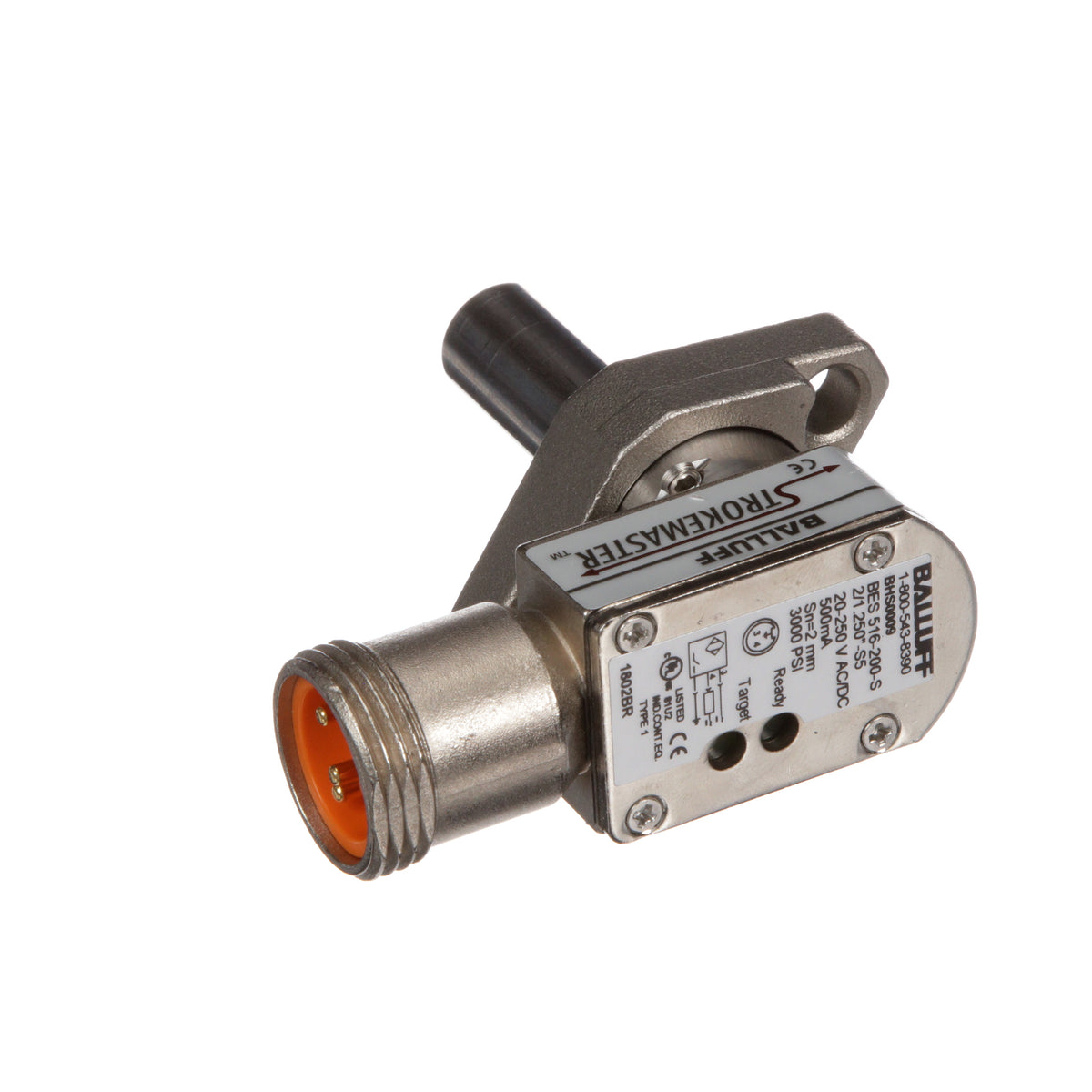

Balluff BHS0009 BES Inductive Proximity Sensor 2 mm Flush Mount 206 Bar
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BHS0009
Description
The Balluff BHS0009 is a pressure-rated inductive proximity sensor designed to detect metal objects in industrial automation applications. It features a 2 mm sensing range, a normally open switching output, and a flush-mount cylindrical design. The sensor operates on 20–250 V AC/DC and is rated for pressures up to 206 bar.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BHS0009 |
|
Subcategory |
Inductive Proximity Sensors |
|
Series |
BES |
|
Sensing Range |
2 mm |
|
Switching Output |
Normally open (NO) |
|
Switching Frequency |
50 Hz |
|
Operating Voltage |
20–250 V AC/DC |
|
Housing Diameter |
12.7 mm |
|
Installation |
Flush mounting |
|
Connection |
7/8"-16 UN, 3-pin as listed |
|
Maximum Pressure Rating |
206 bar |
|
Protection Rating |
IP67 |
|
Housing Material |
Conflicting supplier listings: zinc/aluminum or stainless steel; verify the exact version |
|
Sensing Surface Material |
Duroplast |
|
Ambient Temperature |
-25 to 70 °C |
|
Approvals |
CE, EAC, cULus, WEEE |
|
Weight |
0.50 lb |
Information About BHS0009
The BHS0009 belongs to Balluff’s BES series of inductive proximity sensors. Its compact 12.7 mm housing supports installation in space-constrained industrial equipment, while the 7/8"-16 UN connection provides the specified electrical interface. The sensor has an IP67 protection rating and is designed for ambient temperatures from -25 to 70 °C. Its pressure-resistant construction makes it suitable for demanding applications where reliable metal detection is required.
Key Features:
-
Inductive Detection: Detects metal objects without requiring physical contact.
-
2 mm Sensing Range: Provides short-range proximity detection for industrial equipment.
-
Flush Mounting: Designed for installation flush with the surrounding mounting surface.
-
Normally Open Output: Switches the output when a target is detected, according to the specified operating principle.
-
Wide Voltage Range: Supports 20–250 V AC or DC operation.
-
Pressure Resistance: Rated for pressures up to 206 bar.
-
IP67 Protection: Protects against dust ingress and temporary immersion under specified test conditions.
-
Industrial Temperature Range: Supports ambient temperatures from -25 to 70 °C.
The BHS0009 delivers the reliability and precision required for metal detection, position sensing, and industrial process control in high-pressure environments.
