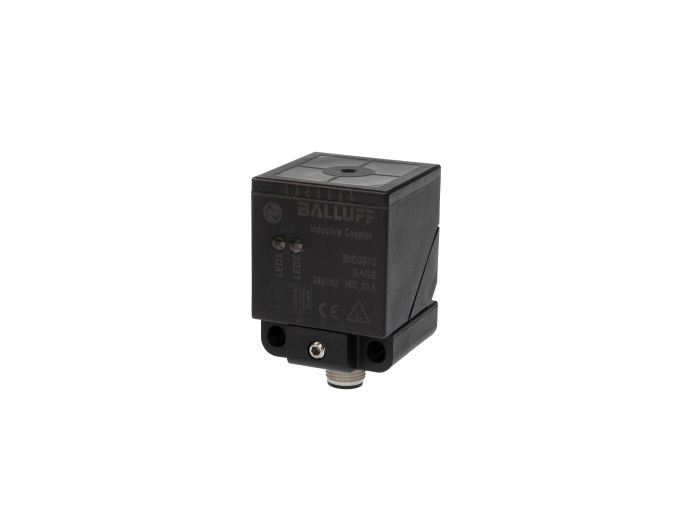

Balluff BIC0070 Inductive Coupler Base IO-Link 1.1 5 mm
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BIC0070
Description
The Balluff BIC0070 is an inductive coupler base designed for contactless, bidirectional transmission of power and IO-Link data across an air gap. It supports a transmission distance of up to 5 mm and enables reliable signal transfer between compatible components in industrial automation systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BIC0070 |
|
Subcategory |
Inductive Couplers |
|
Model |
BIC 1B0-ITA50-Q40KFU-SM4A4A |
|
Function |
IO-Link Signal Transmission |
|
Signal Type |
Bidirectional |
|
Interface |
IO-Link 1.1 |
|
Transfer Rate |
COM2, 38.4 kBaud |
|
Transmission Distance |
0–5 mm |
|
Process Data Input |
0–32 bytes |
|
Additive Cycle Time |
Device + 2.0 ms |
|
Rated Operating Voltage |
24 VDC |
|
Rated Operating Current |
1,000 mA |
|
Connection |
M12 × 1 male connector, 4-pin |
|
Housing Material |
PBT / PBTP |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
-5 to 55 °C (one supplied specification lists up to 65 °C) |
|
Dimensions |
40 × 40 × 63 mm |
|
Weight |
0.30 lb |
Information About BIC0070
The BIC0070 belongs to Balluff’s BIC series of non-contact inductive coupling devices and corresponds to model BIC 1B0-ITA50-Q40KFU-SM4A4A. It functions as the base component and supports IO-Link 1.1 communication with COM2 transfer rates of 38.4 kBaud. The device operates at 24 VDC and uses a 4-pin M12 male connector. Its PBT-based housing and IP67 protection rating support installation in industrial environments.
Key Features:
-
Contactless Data Transmission: Transfers signals across an air gap without conventional electrical plug contacts.
-
Bidirectional Communication: Supports two-way IO-Link data transmission between compatible components.
-
Transmission Distance: Operates across a gap of 0–5 mm.
-
IO-Link Compatibility: Supports IO-Link 1.1 and COM2 communication at 38.4 kBaud.
-
Process Data Capacity: Supports up to 32 bytes of process data input and 32 bytes of process data output.
-
Electrical Connection: Uses a 4-pin M12 × 1 male connector.
-
Industrial Housing: Features a PBT-based housing and sensing surface.
-
Environmental Protection: Provides IP67 protection and operates across the specified industrial temperature range.
The BIC0070 delivers the reliability and precision required for contactless data transfer, flexible machine connections, and industrial automation systems.
