Balluff BIS VM-305-001-S4 HF RFID Read/Write Head with Cable
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BIS VM-305-001-S4
Description
The Balluff BIS VM-305-001-S4 is an HF RFID read/write head operating at 13.56 MHz for contactless identification in industrial automation. It supports DIN ISO 14443 and DIN ISO 15693 data carriers and is designed for installation with a metal-free clear zone.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | RFID Systems |
| Part Number | BIS VM-305-001-S4 |
| Subcategory | RF Assembly |
| Order Code | BIS00T9 |
| Product Type | HF RFID read/write head |
| Operating Frequency | 13.56 MHz |
| Supported Data Carrier Standards | DIN ISO 14443; DIN ISO 15693 |
| Antenna Type | Round |
| Dimensions | 25 × 10 × 50 mm |
| Installation Requirement | Metal-free mounting area with clear zone |
| Connection Type | Four-pin male connector |
| Cable Length | 0.50 m |
| Cable Jacket Material | Polyurethane (PU) |
| Housing Materials | ABS, GF16; aluminum interface |
| Ambient Temperature | 0 °C to +70 °C |
| Protection Rating | IP67 |
| Weight | 2.20 lbs |
Information About BIS VM-305-001-S4

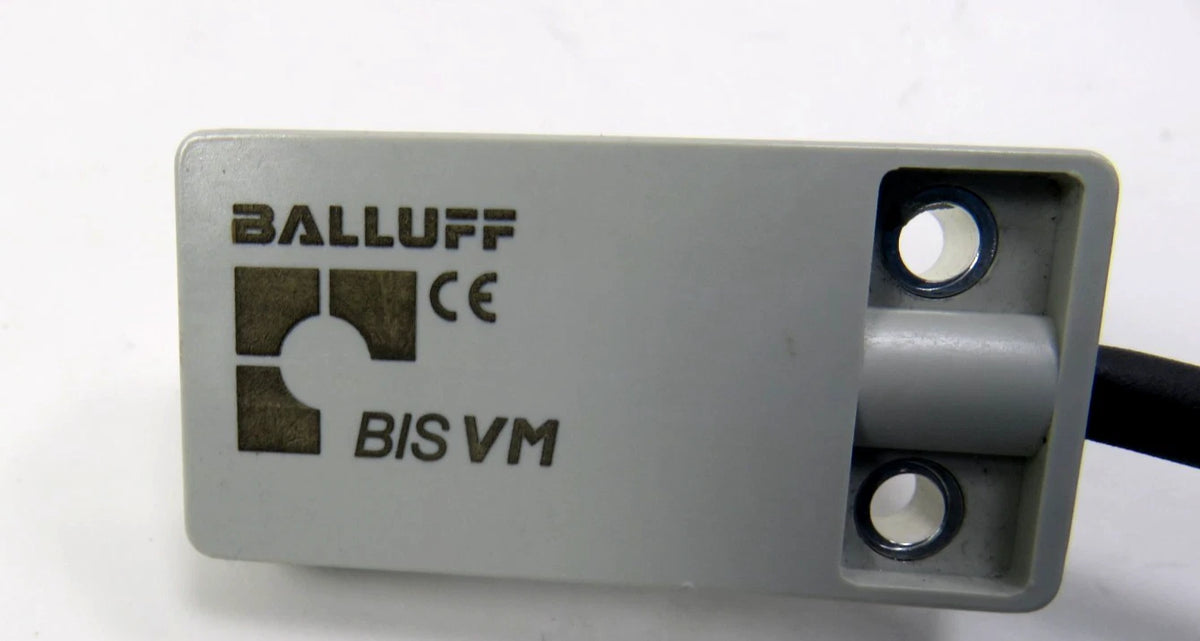

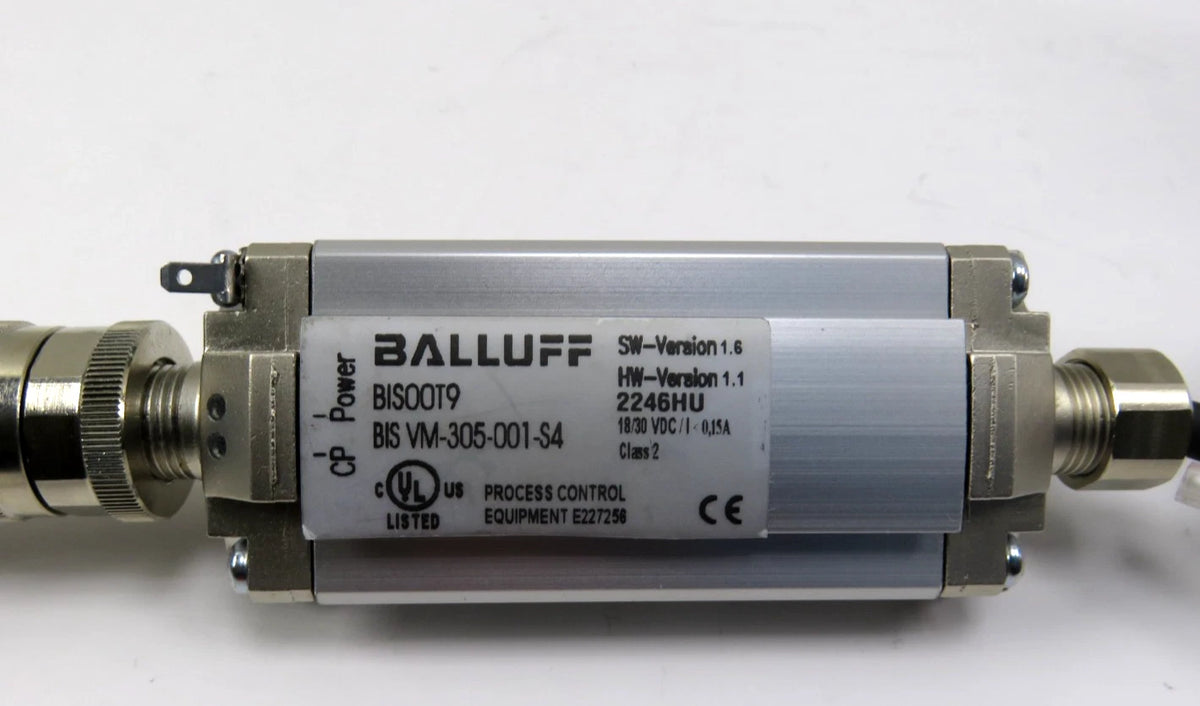

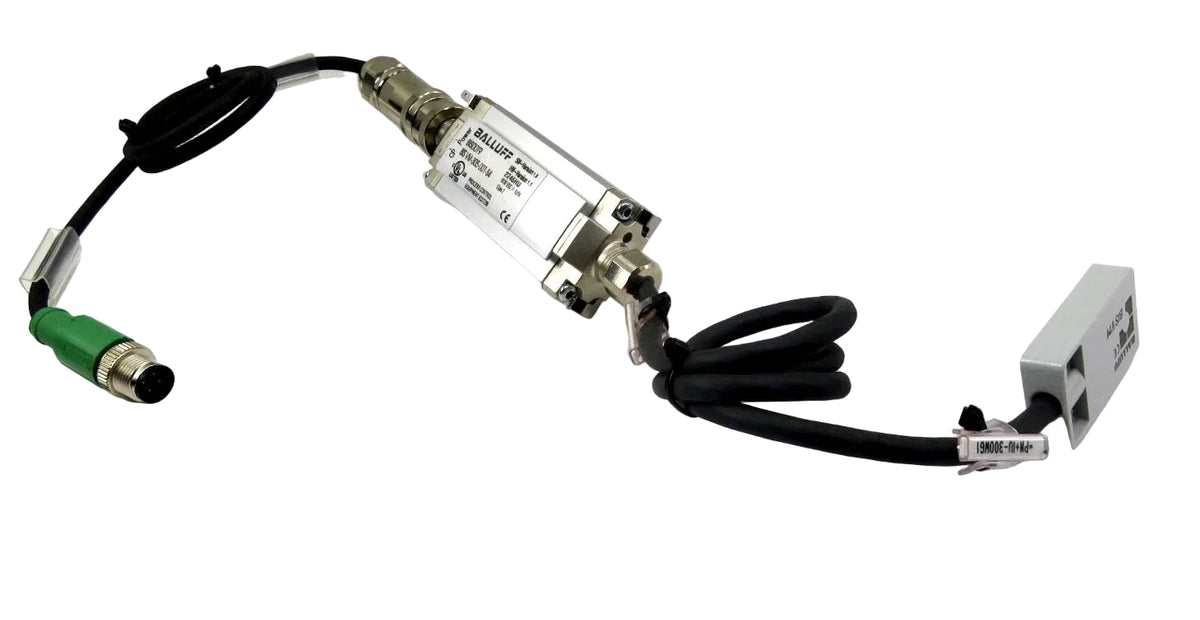

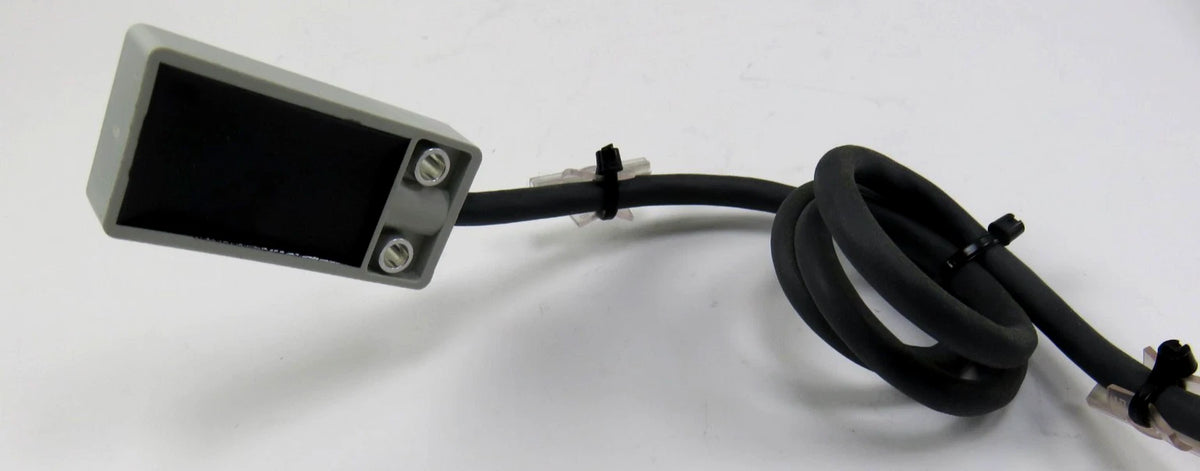

The BIS VM-305-001-S4 is identified by Balluff order code BIS00T9. Its round antenna is integrated into a compact rectangular housing measuring 25 × 10 × 50 mm. A 0.50 m polyurethane-jacketed cable terminates in a four-pin male connector for connection to compatible RFID equipment. The IP67 enclosure and specified ambient temperature range support installation near production and handling machinery.
Key Features:
- HF Identification: Operates at 13.56 MHz for contactless communication with compatible RFID data carriers.
- Dual Standard Support: Accepts data carrier types conforming to DIN ISO 14443 and DIN ISO 15693.
- Round Antenna: Uses a circular antenna arrangement within the rectangular housing.
- Compact Dimensions: Measures 25 × 10 × 50 mm for installation in restricted spaces.
- Cable Connection: Includes a 0.50 m PU cable with a four-pin male connector.
- Defined Mounting Clearance: Requires a metal-free clear zone around the installation.
- Environmental Protection: Provides an IP67-rated enclosure for industrial use.
- Temperature Range: Supports operation at ambient temperatures from 0 °C to +70 °C.
The BIS VM-305-001-S4 delivers the reliability and precision required for contactless identification and data exchange in automated production systems.
