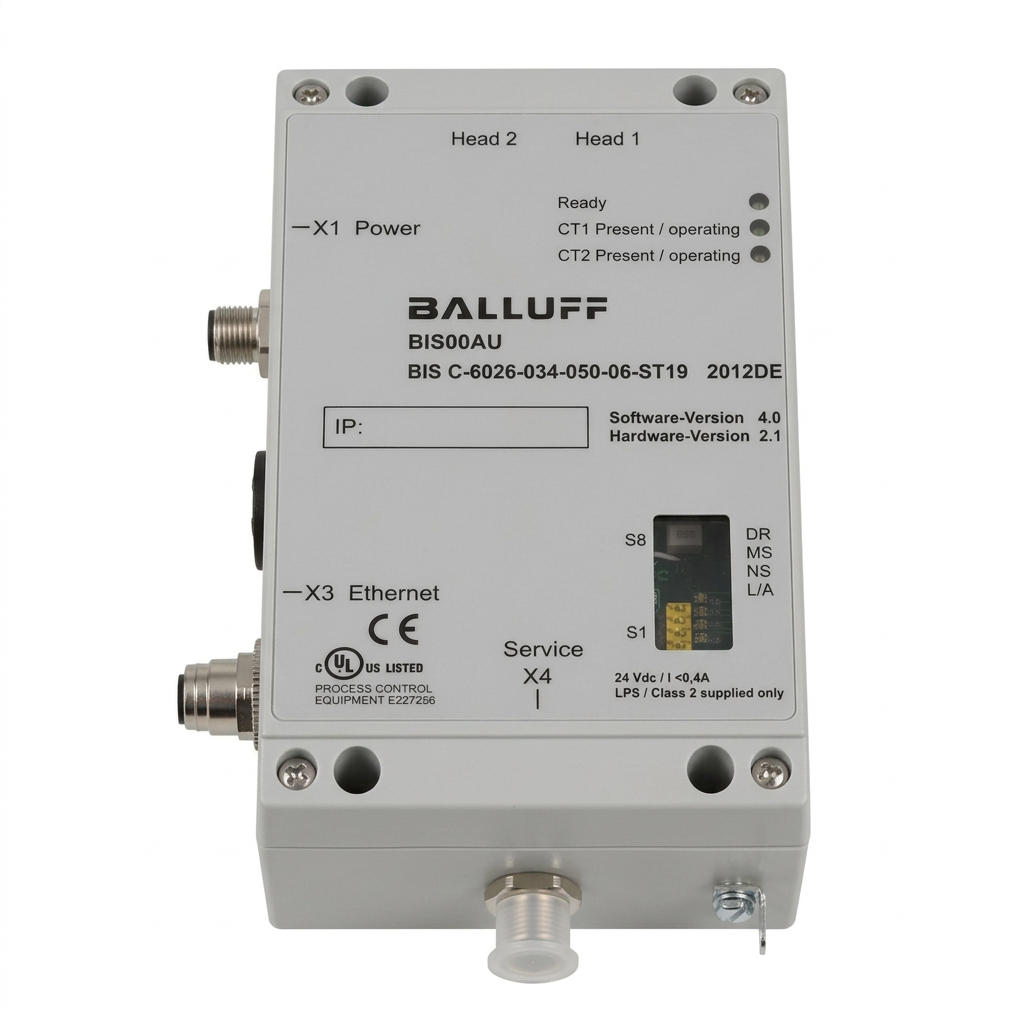

Balluff BIS00AU Ethernet/IP LF RFID Processor BIS C Dual Channel
- Regular price
- $6,999.00
- Sale price
- $6,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BIS00AU
Description
The Balluff BIS00AU (BIS V-6102-048-C001) is a high-performance industrial RFID processor module engineered for real-time tracking, asset management, and identification across automated production networks. Operating on a 19.2 to 28.8 VDC power supply, this processor features an integrated Ethernet/IP network interface for high-speed data exchange with control systems. Housed in a durable enclosure measuring 160 x 100 x 60 mm and weighing 0.56 kg, it provides dependable multi-channel RFID connectivity in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | PLCs/Machine Control |
| Part Number | BIS00AU |
| Subcategory | VDC Logic I/O Module / RFID Processor |
| Product Group | LF (70/455 kHz) |
| Interface Protocol | Ethernet/IP |
| Supported RFID Technologies | LF 70/455 kHz (BIS C) |
| Supported Read/Write Heads | Up to 2 Channels |
| Operating Voltage | 19.2 to 28.8 VDC |
| Housing Material | Die-Cast Aluminum |
| IP Rating | IP65 (with connector) |
| Ambient Operating Temperature | 0 °C to 60 °C |
| Network Connection | M12 Female, 4-Pin, D-Coded |
| Power Connection | Male, 5-Pin |
| Approvals / Conformity | UKCA, cULus, WEEE |
| Dimensions | 160 x 100 x 60 mm |
| Weight | 0.56 kg |
Information About BIS00AU
The BIS00AU is part of Balluff's Low Frequency (LF) RFID system lineup, engineered specifically for industrial tool tracking, workpiece tray identification, and pallet routing. Utilizing the 70/455 kHz frequency spectrum (BIS C standard), it ensures robust data transmission even in environments with high metal proximity or electromagnetic interference. The module features 4-pin D-coded female M12 connectors for Ethernet/IP networking alongside a 5-pin male power interface. Compatibility covers standard EtherNet/IP PLCs, Balluff BIS C LF read/write heads, and 24 VDC industrial power systems. It is widely used in CNC tool management systems, automotive assembly lines, robotic cell indexing, and automated material handling.
Key Features:
-
Frequency Standard: Low Frequency (LF 70/455 kHz) BIS C RFID processing
-
Network Interface: Industrial Ethernet/IP communication protocol
-
Head Capacity: Supports up to 2 connectable BIS C read/write heads or antennas
-
Power Input: 19.2 to 28.8 VDC operating voltage range
-
Network & Power Connections: 4-pin D-coded female Ethernet interface and 5-pin male power connection
-
Housing & Rating: Die-cast aluminum enclosure with IP65 ingress protection (with connector)
-
Environmental Range: Operational ambient temperature range from 0 °C to 60 °C
-
Certifications & Conformity: UKCA, cULus, and WEEE compliant
-
Physical Dimensions & Weight: 160 x 100 x 60 mm form factor weighing 0.56 kg
The BIS00AU delivers secure data evaluation, rapid PLC communication, and long-term mechanical durability for modern smart manufacturing processes.
