Balluff BIS00LH HF RFID Read/Write Head IO-Link M30 Brass

Description

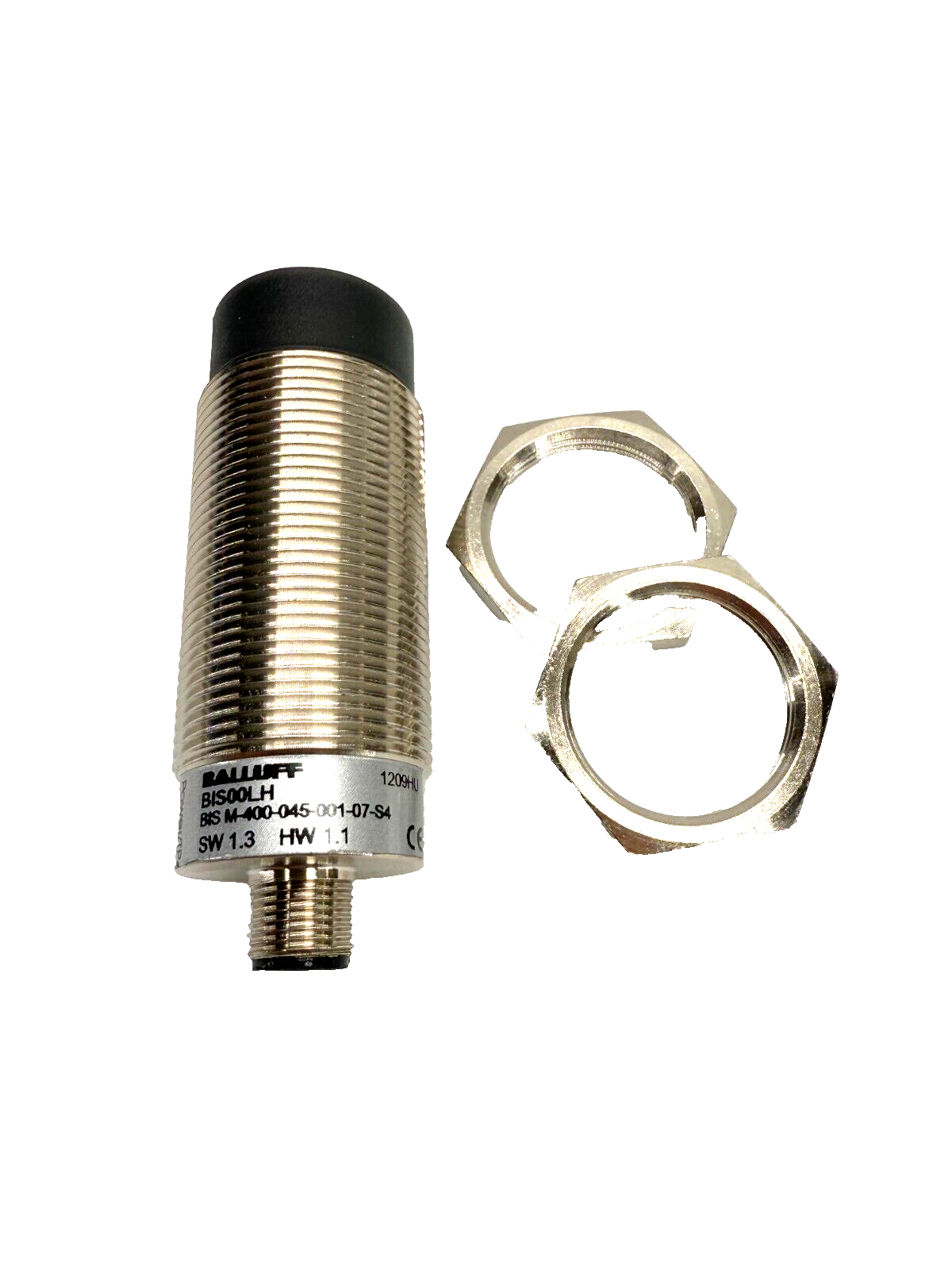

The Balluff BIS00LH is a compact 13.56 MHz High Frequency (HF) RFID read/write head designed for contactless industrial identification and data tracking. Featuring a robust M30x1.5 threaded nickel-plated brass cylindrical body and an integrated round antenna, this sensor operates via an IO-Link interface (Protocol Version 1.1) for fast and standardized digital integration. Built to an IP67 protection rating and requiring installation with a clear zone, this lightweight 0.07 kg RFID head provides highly dependable performance in automated assembly and material handling lines.

Technical Specifications

Information About BIS00LH

The BIS00LH is part of Balluff’s BIS M high-frequency RFID series (13.56 MHz), engineered according to ISO 15693 and ISO 14443 standards. The IO-Link V1.1 connection allows simple point-to-point wiring to any standard IO-Link master module, streamlining setup and providing advanced diagnostic capabilities without needing dedicated complex RFID cards. Compatibility covers standard M12 4-pin connection cables, Balluff IO-Link master blocks, and 13.56 MHz HF transponders/tags. It is widely applied in CNC tool identification, assembly pallet tracking, automated flexible manufacturing, and industrial quality control systems.

Key Features:

• RFID Frequency & Technology: HF (13.56 MHz) BIS M series read/write technology

• Interface Standard: Point-to-point IO-Link digital interface (Protocol Version 1.1)

• Antenna Design & Dimensions: Integrated round antenna in an M30 diameter (30 mm) housing with an 83.00 mm overall length

• Primary Material: Durable nickel-plated brass threaded cylinder

• Installation Requirements: Designed for non-flush mounting with a specified clear zone requirement

• Environmental Rating: IP67 ingress protection against dust and liquid immersion

• Construction Weight: Ultra-compact, modular assembly weighing just 0.07 kg

The BIS00LH delivers accurate RFID tracking, simple IO-Link connectivity, and rugged durability for modern smart factory networks.
