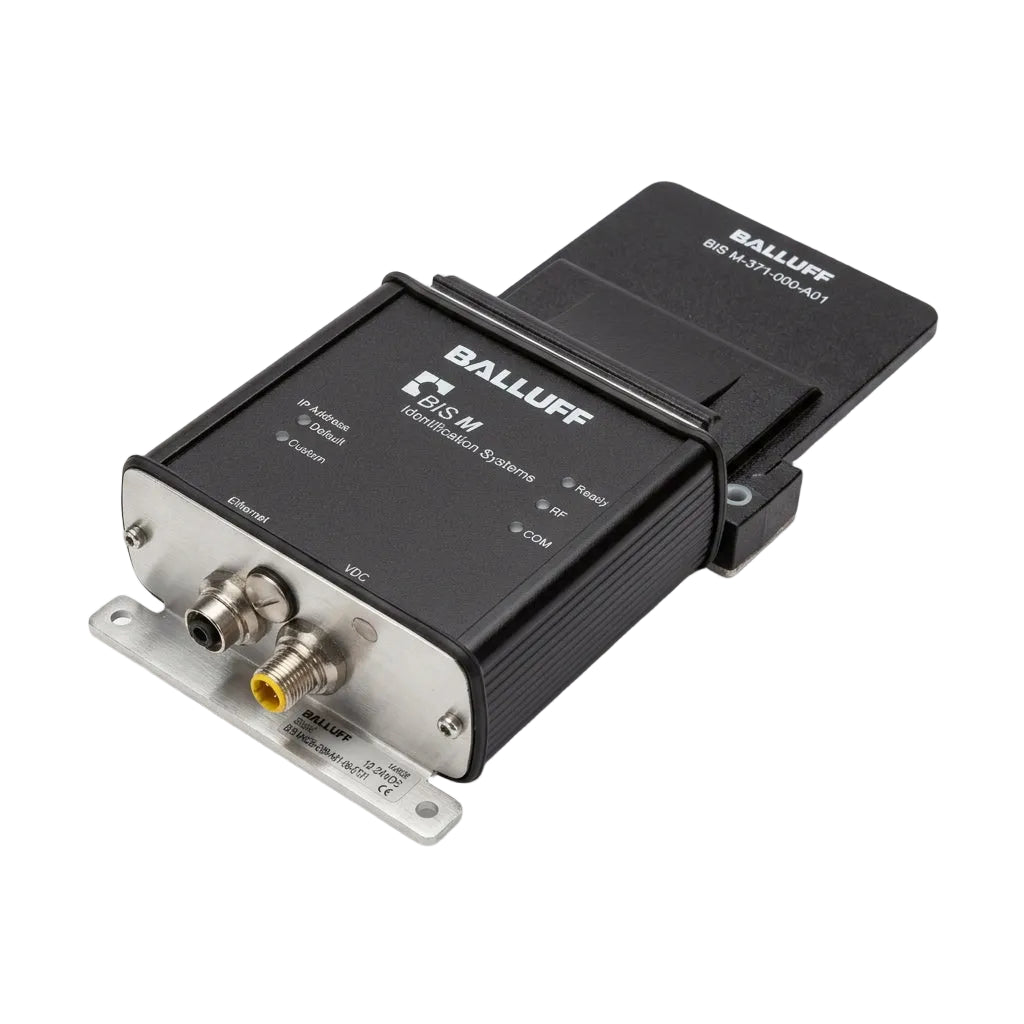

Balluff BIS00ZC HF RFID Processor Unit 13.56 MHz Ethernet Modbus TCP
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BIS00ZC
Description
The Balluff BIS00ZC is an HF RFID processor unit designed for industrial identification and data communication applications using 13.56 MHz technology. It supports Ethernet-based communication, including Ethernet TCP/IP and Modbus TCP, for integration with compatible automation systems. The unit connects to one RFID read/write head and operates on a 24 V DC nominal supply.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BIS00ZC |
|
Subcategory |
RFID Systems and Components |
|
Product Type |
HF RFID Processor Unit |
|
RFID Frequency |
13.56 MHz |
|
RFID Technology |
HF (BIS M) |
|
Communication Interfaces |
Ethernet TCP/IP, Modbus TCP |
|
Operating Voltage |
19.2–28.8 V DC |
|
Current Consumption |
500 mA maximum at 24 V DC |
|
Housing Material |
Aluminum |
|
Protection Rating |
IP65 |
|
Ambient Temperature |
-20 to 50 °C |
|
Connectors |
4-pin D-coded M12 female; 5-pin M12 male |
|
Dimensions |
48 × 112 × 137 mm |
|
Weight |
0.55 kg |
Information About BIS00ZC
The BIS00ZC belongs to Balluff’s BIS M high-frequency RFID product range. It is associated with model BIS M-626-069-A01-06-ST31 and supports HF RFID technology at 13.56 MHz. The processor features an aluminum housing with an IP65 protection rating when connected as specified. Its M12 connectors provide the listed interfaces for industrial network communication and RFID head connection.
Key Features:
-
HF RFID Technology: Operates at 13.56 MHz for industrial identification applications.
-
Ethernet Communication: Supports Ethernet TCP/IP and Modbus TCP interfaces.
-
Single Read/Write Head: Connects to one compatible RFID head or antenna.
-
24 V DC Nominal Supply: Operates within a listed supply range of 19.2–28.8 V DC.
-
Low Power Consumption: Maximum current consumption is listed as 500 mA at 24 V DC.
-
IP65 Protection: Aluminum housing provides protection against dust and water jets when properly connected.
-
Industrial Temperature Range: Rated for ambient temperatures from -20 to 50 °C.
-
M12 Connectivity: Uses 4-pin D-coded female and 5-pin male M12 connectors, according to the supplied specifications.
The BIS00ZC delivers the reliability and precision required for industrial RFID identification, asset tracking, and automated data collection.
Description
The Balluff BIS00ZC is an HF RFID processor unit designed for industrial identification and data communication applications using 13.56 MHz technology. It supports Ethernet-based communication, including Ethernet TCP/IP and Modbus TCP, for integration with compatible automation systems. The unit connects to one RFID read/write head and operates on a 24 V DC nominal supply.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BIS00ZC |
|
Subcategory |
RFID Systems and Components |
|
Product Type |
HF RFID Processor Unit |
|
RFID Frequency |
13.56 MHz |
|
RFID Technology |
HF (BIS M) |
|
Communication Interfaces |
Ethernet TCP/IP, Modbus TCP |
|
Operating Voltage |
19.2–28.8 V DC |
|
Current Consumption |
500 mA maximum at 24 V DC |
|
Housing Material |
Aluminum |
|
Protection Rating |
IP65 |
|
Ambient Temperature |
-20 to 50 °C |
|
Connectors |
4-pin D-coded M12 female; 5-pin M12 male |
|
Dimensions |
48 × 112 × 137 mm |
|
Weight |
0.55 kg |
Information About BIS00ZC
The BIS00ZC belongs to Balluff’s BIS M high-frequency RFID product range. It is associated with model BIS M-626-069-A01-06-ST31 and supports HF RFID technology at 13.56 MHz. The processor features an aluminum housing with an IP65 protection rating when connected as specified. Its M12 connectors provide the listed interfaces for industrial network communication and RFID head connection.
Key Features:
-
HF RFID Technology: Operates at 13.56 MHz for industrial identification applications.
-
Ethernet Communication: Supports Ethernet TCP/IP and Modbus TCP interfaces.
-
Single Read/Write Head: Connects to one compatible RFID head or antenna.
-
24 V DC Nominal Supply: Operates within a listed supply range of 19.2–28.8 V DC.
-
Low Power Consumption: Maximum current consumption is listed as 500 mA at 24 V DC.
-
IP65 Protection: Aluminum housing provides protection against dust and water jets when properly connected.
-
Industrial Temperature Range: Rated for ambient temperatures from -20 to 50 °C.
-
M12 Connectivity: Uses 4-pin D-coded female and 5-pin male M12 connectors, according to the supplied specifications.
The BIS00ZC delivers the reliability and precision required for industrial RFID identification, asset tracking, and automated data collection.
