Balluff BIS0122 Multi-Frequency RFID Processor EtherNet/IP
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BIS0122
Description

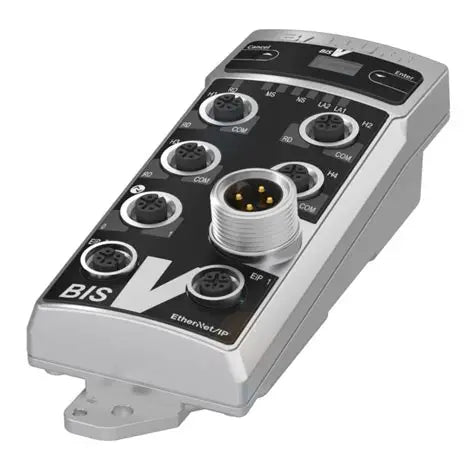

The Balluff BIS0122 RFID processor is designed to connect and manage RFID read/write heads in industrial identification and tracking systems. It supports LF, HF, and UHF RFID technologies and communicates with control systems through an EtherNet/IP interface.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
RFID Systems |
|
Part Number |
BIS0122 |
|
Subcategory |
RFID Processor |
|
Product Group |
Multi-Frequency Processor |
|
Model |
BIS V-6106-034-C004 |
|
Interface |
EtherNet/IP |
|
Supported RFID Technologies |
LF 125 kHz, HF 13.56 MHz, UHF 860–930 MHz |
|
Operating Voltage |
24 V DC SELV/PELV |
|
IO-Link Function |
Master, maximum 500 mA |
|
Housing Material |
Zinc die casting |
|
Connection |
2 × M12 × 1 female, 4-pin, D-coded; 1 × 7/8-inch male, 4-pin |
|
Protection Rating |
IP65 with connectors |
|
Ambient Temperature |
0 to 60 °C |
|
Dimensions |
48 × 62 × 172 mm |
|
Approvals and Conformity |
CE, UKCA, cULus, WEEE |
|
Weight |
1.65 lb |
Information About BIS0122
The BIS0122 is a multi-frequency RFID processor from Balluff’s BIS V product family. It supports LF 125 kHz, HF 13.56 MHz, and UHF 860–930 MHz technologies, allowing it to work with compatible RFID read/write heads and antennas. The unit supports up to four connected read/write heads or antennas and operates from a 24 V DC SELV/PELV supply. Its die-cast zinc housing and IP65 protection rating when connected make it suitable for industrial environments with dust and water exposure.
Key Features:
-
Multi-Frequency Support: Supports LF 125 kHz, HF 13.56 MHz, and UHF 860–930 MHz RFID technologies.
-
EtherNet/IP Interface: Enables communication with industrial automation and control systems.
-
Four Connections: Supports up to four compatible RFID read/write heads or antennas.
-
24 V DC Supply: Operates with a 24 V DC SELV/PELV power supply.
-
Durable Housing: Features a zinc die-cast enclosure for industrial use.
-
IP65 Protection: Provides IP65 protection when connectors are properly connected.
-
Industrial Connectors: Includes two 4-pin M12 D-coded female connectors and one 4-pin 7/8-inch male connector.
-
Status Indicators: Provides LED indicators for readiness, link/activity, module status, and network status.
The BIS0122 delivers the reliability and precision required for industrial RFID identification, tracking, and automation applications.
