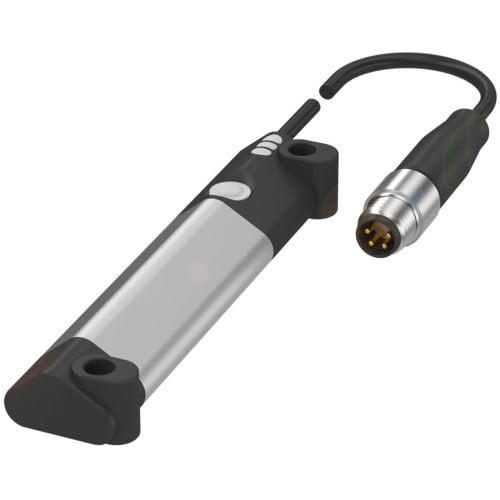

Balluff BMP0005 Magnetic Linear Position Sensor 64 mm IO-Link
- Regular price
- $745.00
- Sale price
- $745.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMP0005
Description
The Balluff BMP0005 is a magnetic field positioning sensor designed for precise, non-contact linear position measurement in industrial automation systems. It offers a 64 mm measuring range with selectable 0–10 V analog voltage or 4–20 mA analog current output, along with IO-Link communication for integration into compatible control systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BMP0005 |
|
Subcategory |
Magnetic Position Sensor |
|
Full Model |
BMP 01-EL1PP21A-0064-00-P00.5-S75 |
|
Measuring Range |
64 mm |
|
Analog Output |
Selectable 0–10 V or 4–20 mA |
|
Interface |
IO-Link 1.1 |
|
Resolution |
≤1 µm (IO-Link); 12-bit (analog) |
|
Repeat Accuracy |
100 µm |
|
Typical Non-Linearity |
±250 µm |
|
Operating Voltage |
15–30 V DC |
|
Rated Operating Voltage |
24 V DC |
|
Connection |
0.5 m PUR cable with 4-pin M8 × 1 male connector |
|
Housing Material |
Aluminum and PA 12 |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
−25 to 85 °C |
|
Dimensions |
17.5 × 9.6 × 74 mm |
|
Approvals and Conformity |
CE, UKCA, cULus, WEEE |
|
Weight |
0.31 lb |
Information About BMP0005
The BMP0005 belongs to Balluff’s BMP series of magnetic field positioning systems and is designed for monitoring linear movement in applications such as compact grippers, punching devices, and tool changers. It supports IO-Link 1.1 and provides a resolution of ≤1 µm through IO-Link or 12-bit resolution in analog mode. The sensor has a typical non-linearity of ±250 µm and repeat accuracy of 100 µm. Its aluminum and PA 12 housing, IP67 protection rating, and PUR cable with an M8 connector support use in industrial environments.
Key Features:
-
Magnetic Position Measurement: Detects linear position using a magnetic field-based sensing principle.
-
64 mm Measuring Range: Supports position measurement across a 64 mm travel range.
-
Selectable Analog Output: Provides either 0–10 V voltage or 4–20 mA current output.
-
IO-Link Communication: Supports IO-Link 1.1 for process data and device integration.
-
High Resolution: Offers ≤1 µm resolution via IO-Link and 12-bit resolution in analog mode.
-
Repeat Accuracy: Provides repeat accuracy of 100 µm.
-
Industrial Protection: Features an IP67 rating for protection against dust and temporary water immersion when properly installed.
-
Compact Connection: Includes a 0.5 m PUR cable with a 4-pin M8 male connector.
The BMP0005 delivers the reliability and precision required for linear position feedback, machine monitoring, and industrial automation applications.
