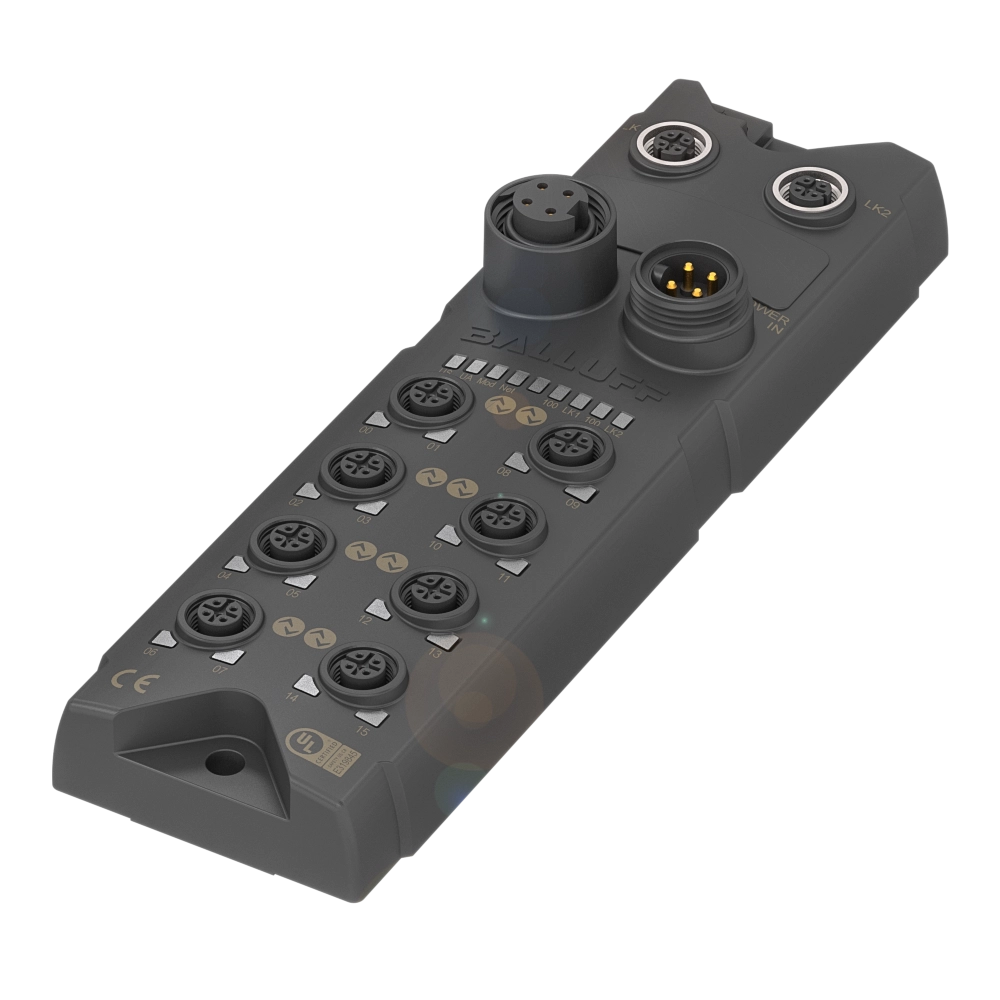

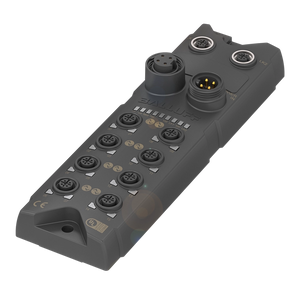

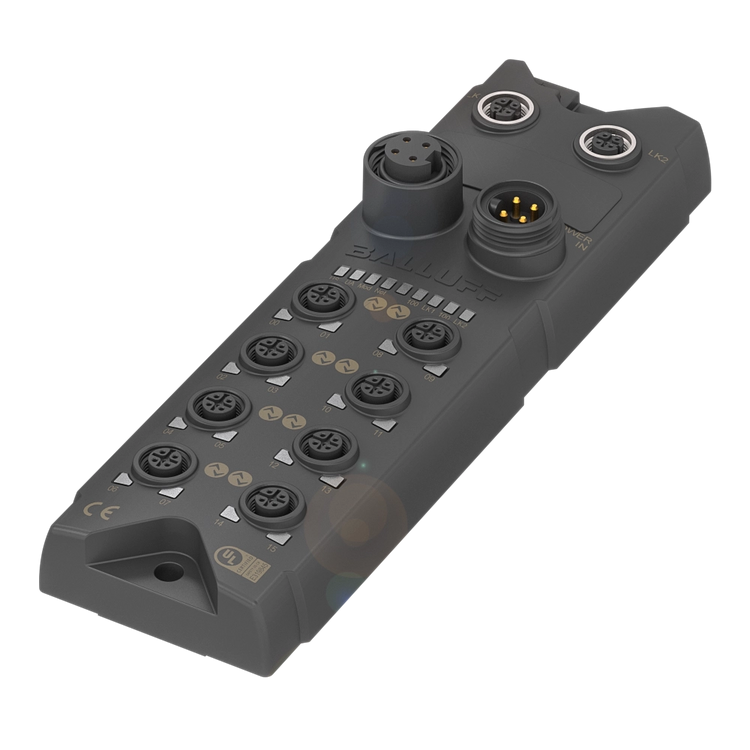

Balluff BNI EIP-508-005-R015-013 EtherNet/IP IO-Link Network Module
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI EIP-508-005-R015-013
Description
The Balluff BNI EIP-508-005-R015-013 is an EtherNet/IP network interface module designed to connect IO-Link devices and digital I/O to industrial automation systems. It provides eight IO-Link master ports, 16 PNP digital inputs, and 16 PNP digital outputs, supporting flexible sensor and actuator integration. Its IP67-rated housing and industrial communication interfaces make it suitable for distributed machine-control applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BNI EIP-508-005-R015-013 |
|
Subcategory |
Industrial Network Interface Module |
|
Model / Alternate Part Number |
BNI00HW |
|
Interface |
EtherNet/IP |
|
Transfer Rate |
10/100 Mbit/s |
|
Operating Voltage |
18–30.2 VDC |
|
Rated Operating Voltage |
24 VDC |
|
Auxiliary Interfaces |
8 × IO-Link |
|
IO-Link Version |
1.1.3 |
|
Port Class |
Type A |
|
Digital Inputs |
16 × PNP, Type 3 |
|
Maximum Output Current |
2 A per output; short-circuit and overload protected |
|
Sensor Supply Current Sum |
9.0 A |
|
Communication Connectors |
2 × M12 × 1 female, 4-pin, D-coded |
|
Supply Output Connector |
7/8-inch female, 4-pin |
|
I/O Connectors |
8 × M12 × 1 female, 5-pin, A-coded |
|
IIoT Interfaces |
REST API, MQTT |
|
Housing Material |
PPS plastic |
|
Dimensions |
68 × 42.9 × 226 mm |
|
Mounting |
Two-hole screw mount |
|
Ambient Temperature |
-25 to 70 °C |
|
Protection Rating |
IP67 when connectors are properly mated |
|
Approvals and Conformity |
CE, UKCA, WEEE, cULus |
|
Weight |
1.23 lb |
Information About BNI EIP-508-005-R015-013
The BNI EIP-508-005-R015-013 belongs to Balluff’s BNI network block series and supports EtherNet/IP communication at 10/100 Mbit/s. It uses IO-Link version 1.1.3 with Type A ports and supports configurable inputs and outputs. The module operates on 18–30.2 VDC and provides separate power connections for supply input and output. REST API and MQTT interfaces support industrial data access and integration with IIoT systems.
Key Features:
-
EtherNet/IP Interface: Connects distributed I/O and IO-Link devices to industrial Ethernet networks.
-
Eight IO-Link Master Ports: Supports up to eight connected IO-Link devices through M12 5-pin ports.
-
16 PNP Digital Inputs: Provides digital input channels with Type 3 input specifications.
-
16 PNP Digital Outputs: Supports control of connected actuators and other output devices.
-
Configurable I/O: Allows inputs and outputs to be configured according to system requirements.
-
Industrial Power Connections: Uses 7/8-inch 4-pin connectors for supply input and output.
-
IIoT Connectivity: Supports REST API and MQTT interfaces for industrial data integration.
-
IP67 Protection: Designed to resist dust and temporary water immersion when properly connected.
The BNI EIP-508-005-R015-013 delivers the reliability and precision required for distributed industrial I/O, machine automation, and IO-Link device integration.
