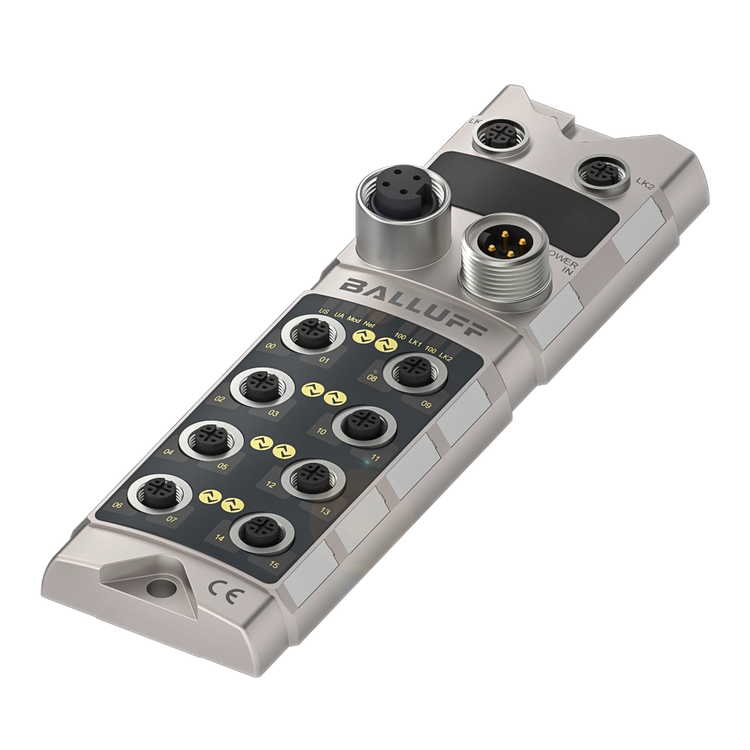

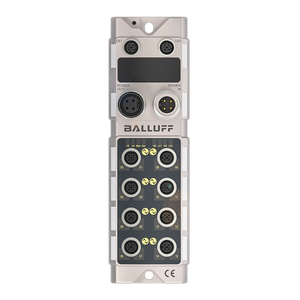

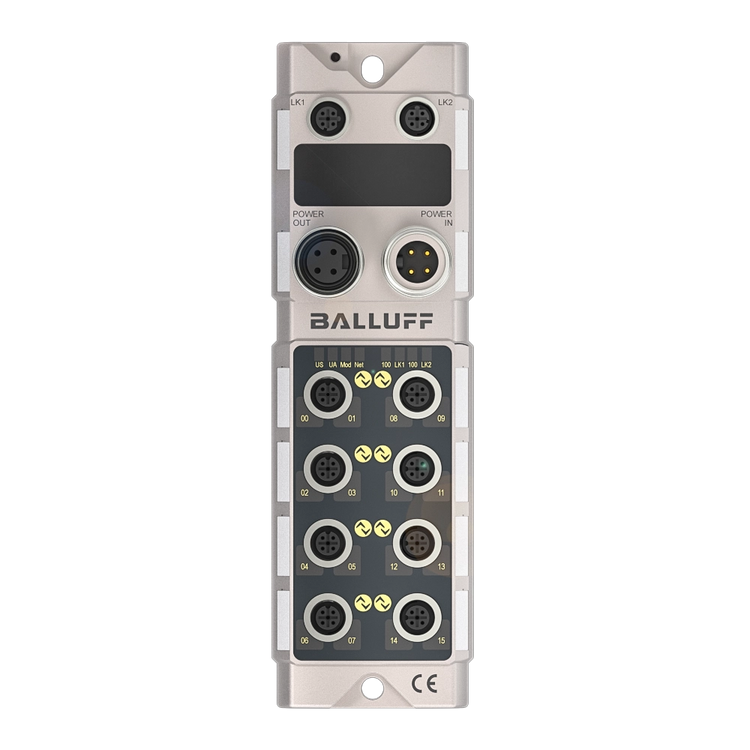

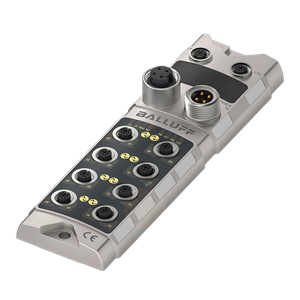

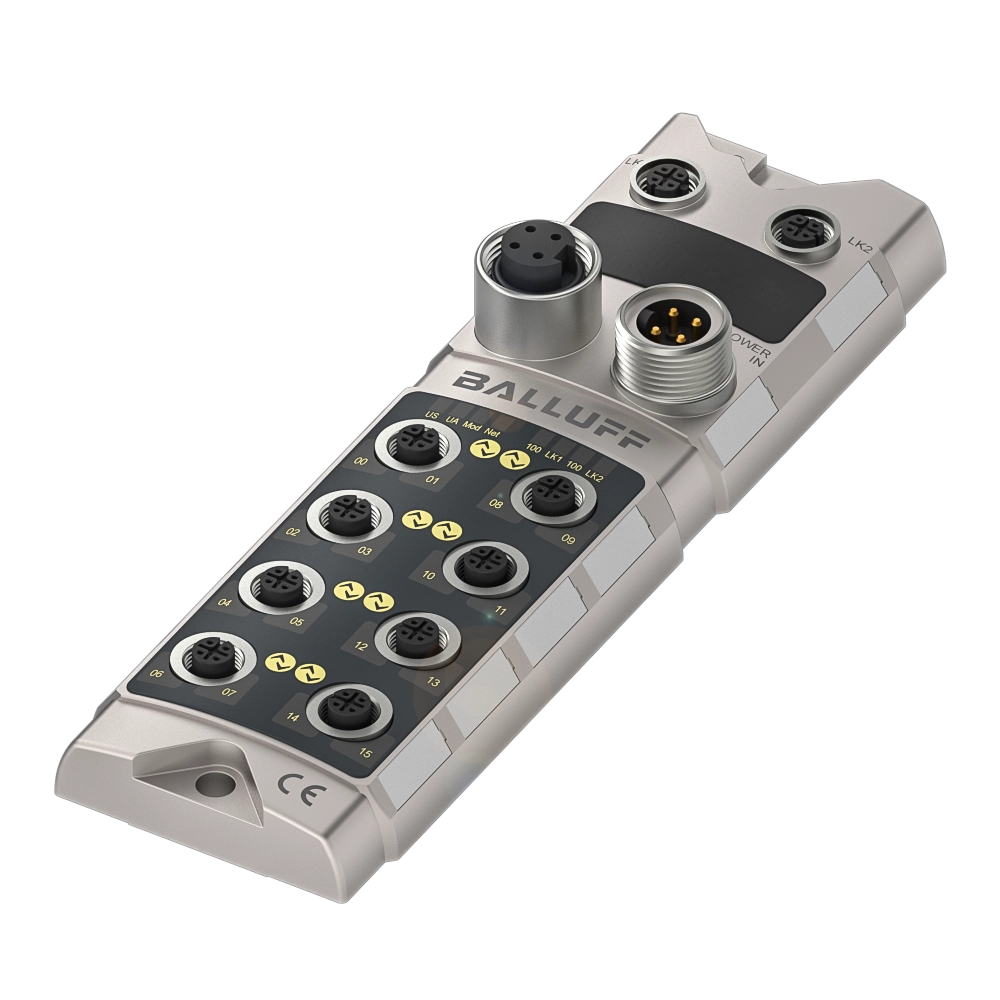

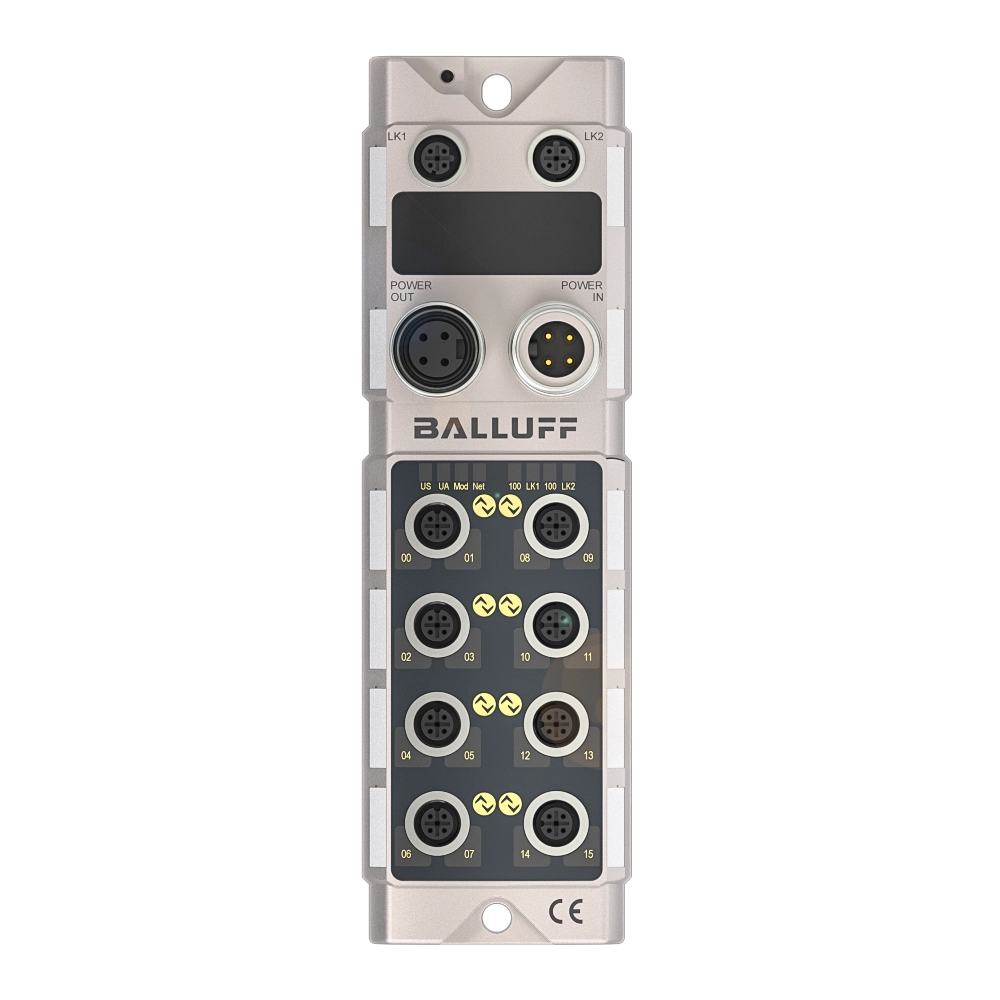

Balluff BNI EIP-508-005-Z015-013 EtherNet/IP IO-Link Network Module
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI EIP-508-005-Z015-013
Description
The Balluff BNI EIP-508-005-Z015-013 is an EtherNet/IP network interface module designed to connect IO-Link devices and digital I/O to industrial automation systems. It provides eight IO-Link master ports, 16 PNP digital inputs, and 16 PNP digital outputs for flexible sensor and actuator integration. Its nickel-plated die-cast zinc housing and IP67 protection support use in demanding industrial environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BNI EIP-508-005-Z015-013 |
|
Subcategory |
Industrial Network Interface Module |
|
Model / Alternate Part Number |
BNI00HM |
|
Interface |
EtherNet/IP |
|
Transfer Rate |
10/100 Mbit/s |
|
Operating Voltage |
18–30.2 VDC |
|
Auxiliary Interfaces |
8 × IO-Link |
|
IO-Link Version |
1.1.3 |
|
Port Class |
Type A |
|
Digital Inputs |
16 × PNP, Type 3 |
|
Maximum Output Current |
2 A per output; short-circuit and overload protected |
|
Sensor Supply Current Sum |
9.0 A |
|
Communication Connectors |
2 × M12 × 1 female, 4-pin, D-coded |
|
I/O Connectors |
8 × M12 × 1 female, 5-pin, A-coded |
|
IIoT Interfaces |
REST API, MQTT |
|
Housing Material |
Nickel-plated die-cast zinc |
|
Dimensions |
68 × 37.9 × 224 mm |
|
Mounting |
Two-hole screw mount |
|
Ambient Temperature |
-25 to 70 °C |
|
Protection Rating |
IP67 when connectors are properly mated |
|
Approvals and Conformity |
CE, UKCA, WEEE, cULus |
|
Weight |
0.44 lb |
Information About BNI EIP-508-005-Z015-013
The BNI EIP-508-005-Z015-013 belongs to Balluff’s BNI series of industrial network blocks and supports EtherNet/IP communication at 10/100 Mbit/s. It uses IO-Link version 1.1.3 with Type A ports and supports configurable inputs and outputs. The module operates on 18–30.2 VDC, with separate power connections for supply input and output. REST API and MQTT interfaces provide options for industrial data access and IIoT integration.
Key Features:
-
EtherNet/IP Communication: Connects distributed I/O and IO-Link devices to industrial Ethernet networks.
-
Eight IO-Link Master Ports: Supports up to eight IO-Link devices through M12 5-pin connections.
-
16 PNP Digital Inputs: Provides Type 3 digital input channels for monitoring connected devices.
-
16 PNP Digital Outputs: Supports control of actuators and other output devices.
-
Configurable I/O: Allows input and output functions to be configured for system requirements.
-
Nickel-Plated Zinc Housing: Provides a durable metal enclosure for industrial installations.
-
IIoT Connectivity: Supports REST API and MQTT interfaces for industrial data integration.
-
IP67 Protection: Provides dust-tight protection and protection against temporary immersion when properly connected.
The BNI EIP-508-005-Z015-013 delivers the reliability and precision required for distributed industrial I/O, machine automation, and IO-Link device integration.
