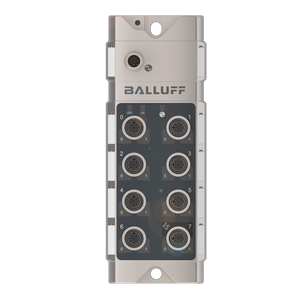

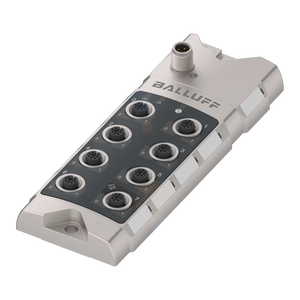

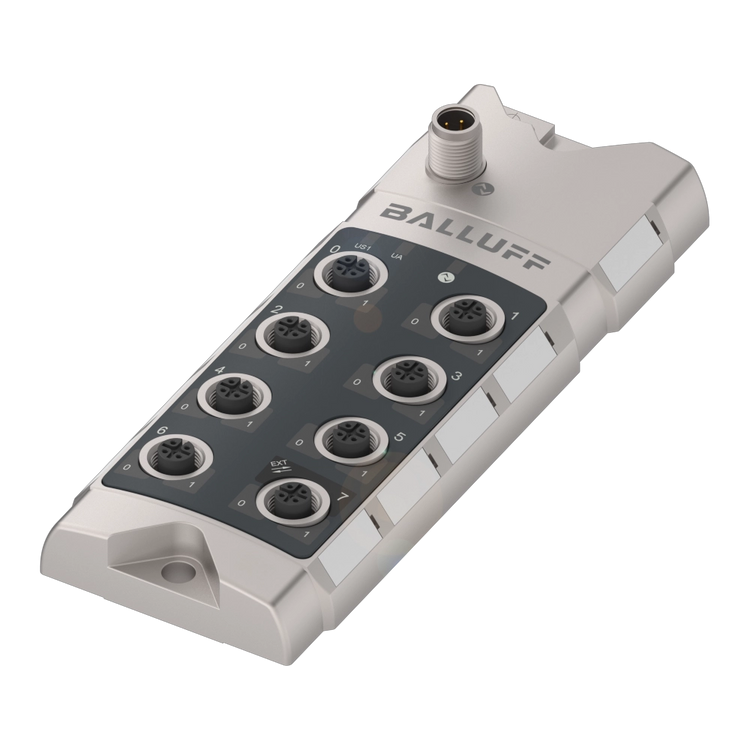

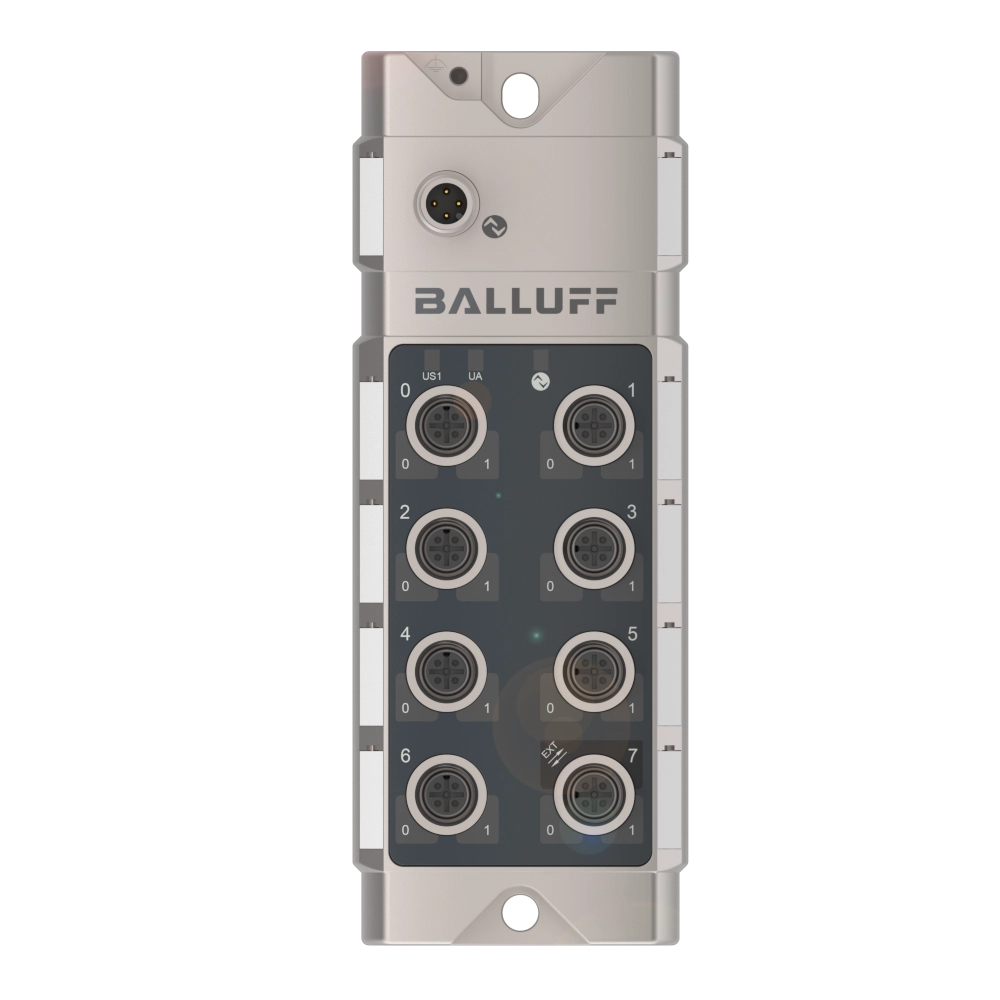

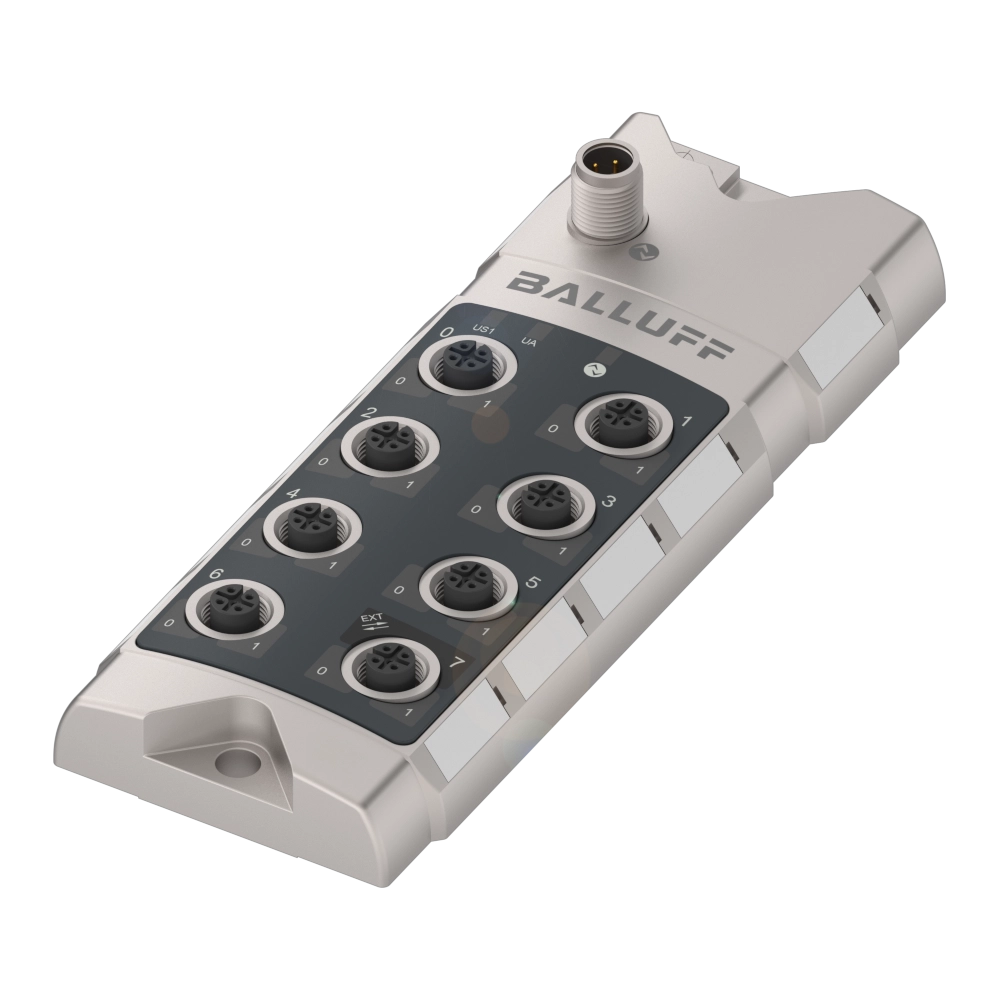

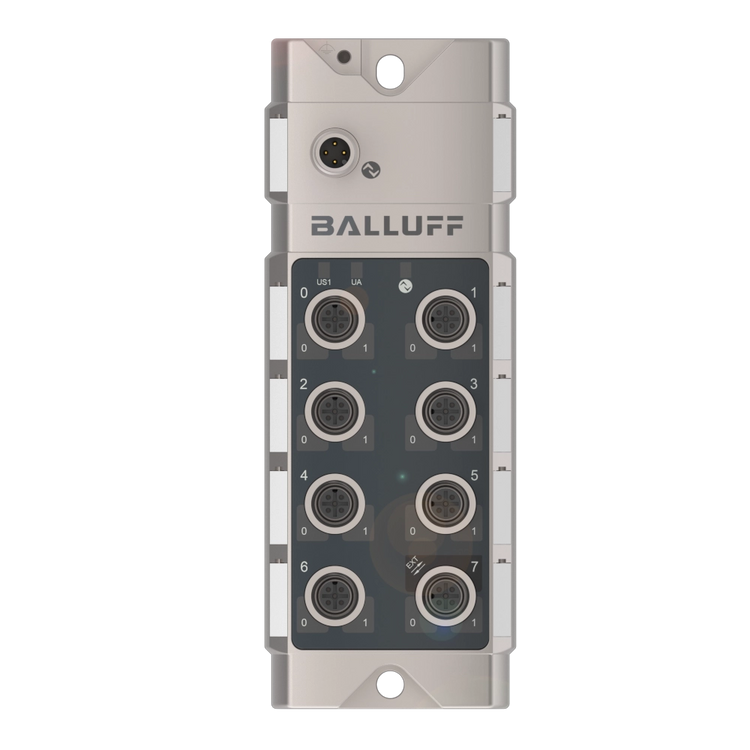

Balluff BNI IOL-302-S02-Z012 Configurable IO-Link Digital I/O Module
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI IOL-302-S02-Z012
Description
The Balluff BNI IOL-302-S02-Z012 is an IO-Link I/O module for connecting digital sensors and actuators to an automation system. It provides configurable PNP inputs and outputs through eight M12 sockets, with channel monitoring and an IP67 enclosure for installation near machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | PLCs/Machine Control |
| Part Number | BNI IOL-302-S02-Z012 |
| Subcategory | I/O Module |
| Order Code | BNI00CN |
| Communication Interface | IO-Link 1.1 device; COM2, 38.4 kbaud |
| IO-Link Connection | One A-coded M12 × 1 male connector, four-pin |
| Device Connections | Eight A-coded M12 × 1 female sockets, five-pin |
| Digital Channel Functions | 16 PNP inputs, type 3; 16 PNP outputs; configurable I/O |
| Operating Voltage | 18–30.2 V DC; nominal 24 V DC |
| Maximum No-Load Current | 50 mA |
| Output Switching Current | 200 mA per channel |
| Total Supply Current | Sensor supply US: 4 A; actuator supply UA: 4 A |
| Minimum Cycle Time | 6.2 ms |
| Process Data | Input: 8 bytes; output: 2 bytes |
| Protection Rating | IP67 when properly connected and sealed |
| Ambient Temperature | −5 °C to +55 °C |
| Housing Material | Nickel-plated zinc die-cast |
| Dimensions | 68 × 31.8 × 181.5 mm |
| Weight | 1.38 lbs |
Information About BNI IOL-302-S02-Z012
The BNI IOL-302-S02-Z012 is a Balluff network interface module identified by order code BNI00CN. It operates as an IO-Link 1.1 device using COM2 communication at 38.4 kbaud. Its two-row construction combines a nickel-plated zinc die-cast housing with separate sensor and actuator supply indicators. Configurable channels and an expansion port support distributed signal collection and control in production equipment.
Key Features:
- Configurable Digital Channels: Supports digital input and output assignments for connected sensors and actuators.
- PNP Signal Handling: Provides 16 PNP input channels and 16 PNP output channels as configurable functions.
- Eight Device Sockets: Uses eight A-coded, five-pin M12 female connectors for field connections.
- IO-Link Communication: Exchanges process data through an IO-Link 1.1 connection at COM2 speed.
- Channel Monitoring: Supports individual channel monitoring for diagnostic purposes.
- LED Indication: Displays switching status, supply conditions, and IO-Link communication locally.
- Expansion Connection: Includes an expansion port for extending the connected I/O arrangement.
- Industrial Enclosure: Provides IP67 protection when connectors are properly secured and unused sockets are sealed.
The BNI IOL-302-S02-Z012 delivers the reliability and precision required for distributed digital signal handling in automated manufacturing systems.
