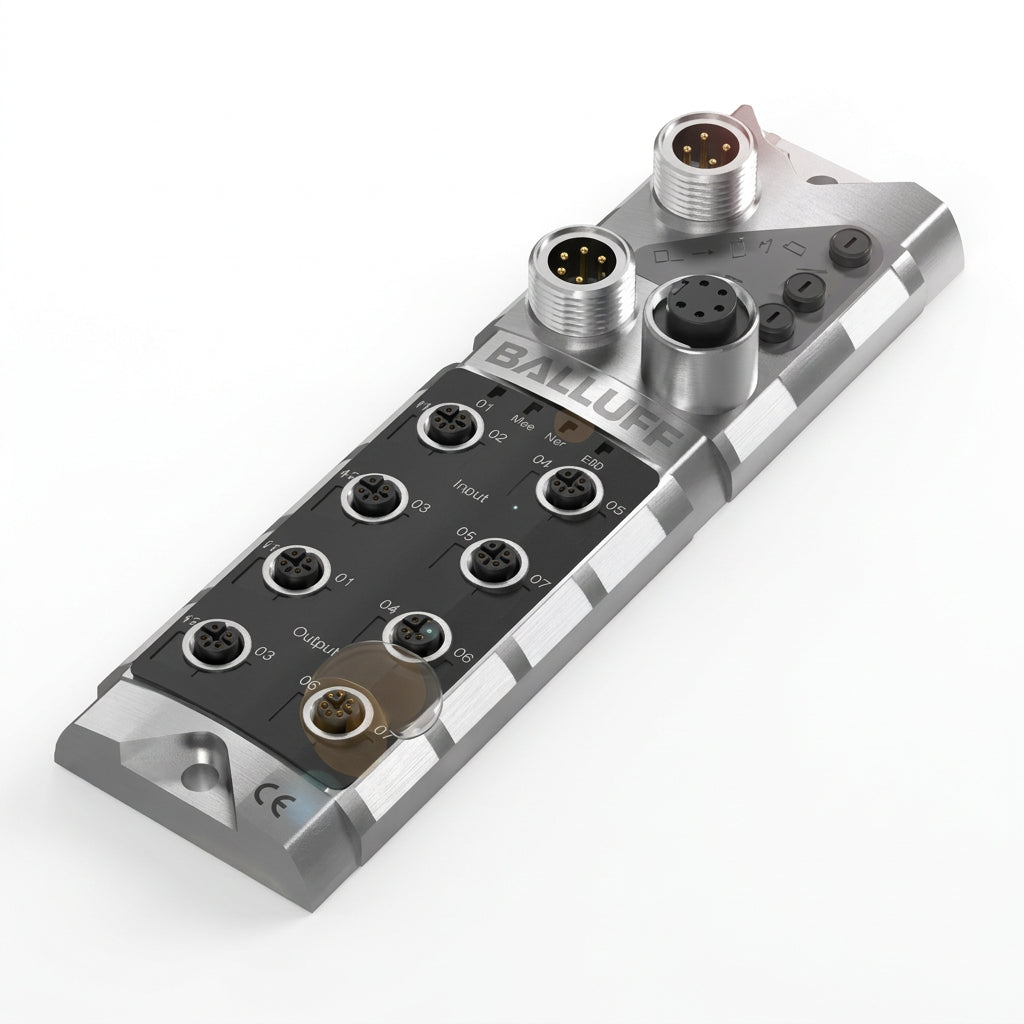

Balluff BNI005A DeviceNet Network Block with IO-Link Master
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI005A
Description
The Balluff BNI005A is a DeviceNet network block with an integrated IO-Link master for connecting sensors and actuators to industrial automation systems. It supports 16 digital inputs, 16 digital outputs, and four IO-Link ports for collecting field-level signals and simplifying machine communication.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BNI005A |
|
Subcategory |
Network I/O Modules |
|
Model |
BNI DNT-502-100-Z001 |
|
Interface |
DeviceNet |
|
IO-Link Function |
Master |
|
Connection Slots |
8 × M12 × 1 female, 5-pin, A-coded |
|
Digital Inputs |
16 × PNP, Type 2 |
|
Operating Voltage |
18–30.2 VDC |
|
Rated Operating Voltage |
24 VDC |
|
DeviceNet Transfer Rate |
125–500 kBaud |
|
Maximum Output Current |
350 mA per output (supplier specification) |
|
Sensor Supply Current Sum |
9.0 A |
|
Housing Material |
Nickel-plated die-cast zinc |
|
Dimensions |
68 × 37.9 × 224 mm |
|
Ambient Temperature |
-5 to 70 °C |
|
Protection Rating |
IP67 when connectors are mated |
|
Mounting |
Two-hole screw mount |
|
Approvals |
CE |
|
Weight |
1.46 lb |
Information About BNI005A
The BNI005A belongs to Balluff’s BNI network interface product family and is identified as model BNI DNT-502-100-Z001. It uses a nickel-plated die-cast zinc housing designed for industrial environments and provides eight 5-pin M12 sensor and actuator connection ports. The module operates on 18–30.2 VDC and supports IO-Link specification 1.1 with DeviceNet communication at transfer rates of 125–500 kBaud. Its IP67 protection rating applies when the connectors are properly mated.
Key Features:
-
DeviceNet Interface: Connects field devices to a DeviceNet industrial network.
-
Integrated IO-Link Master: Provides four IO-Link ports for compatible sensors and devices.
-
Digital Inputs: Supports 16 PNP Type 2 digital inputs.
-
Digital Outputs: Provides 16 PNP digital outputs.
-
Industrial Connectivity: Includes eight 5-pin M12 female ports with A-coded connections.
-
Power Connections: Uses 7/8-inch male and female connectors for supply voltage input and output.
-
Rugged Housing: Features nickel-plated die-cast zinc construction for industrial use.
-
Environmental Protection: Offers IP67 protection when connectors are properly mated.
The BNI005A delivers the reliability and precision required for distributed I/O, sensor integration, and industrial network communication.
