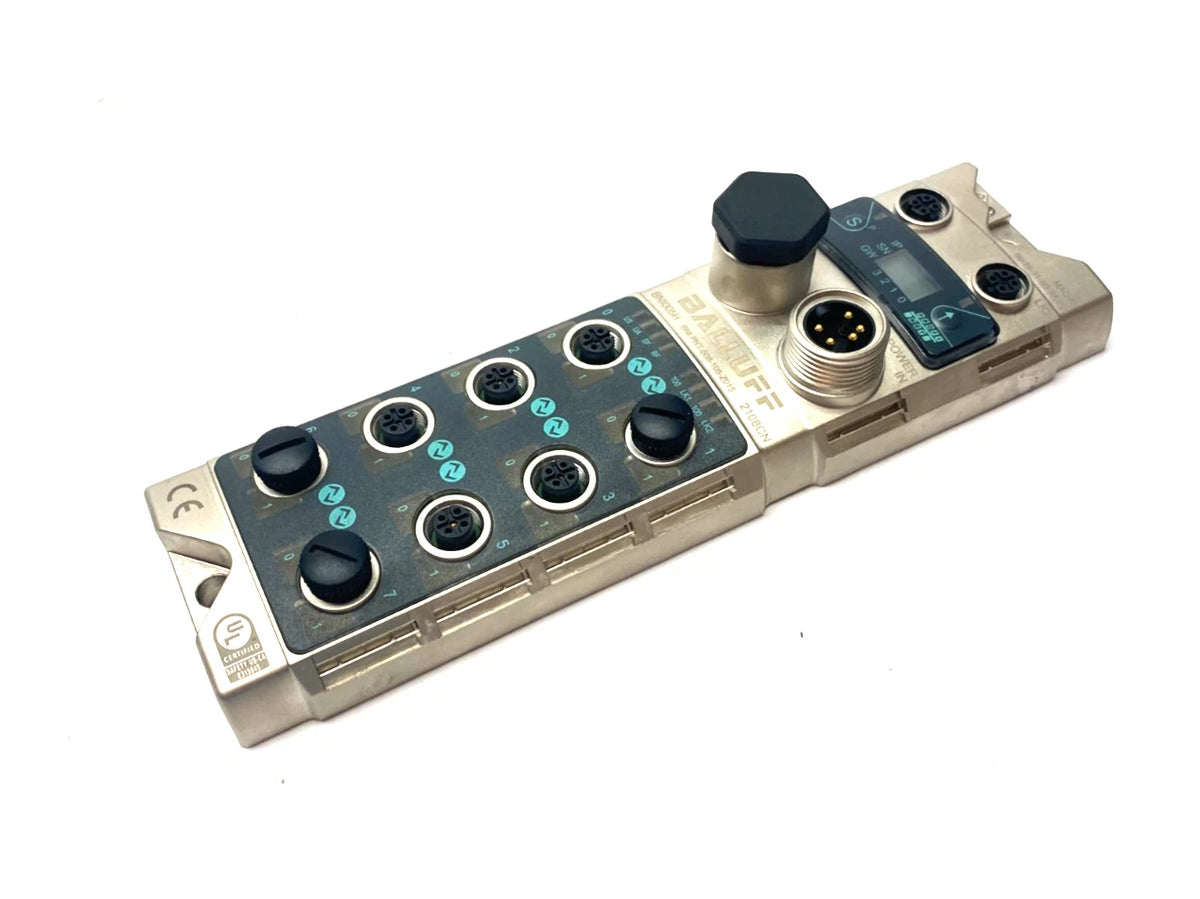

Balluff BNI005H PROFINET IO-Link Master Module
- Regular price
- $805.00
- Sale price
- $805.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI005H
Description
The Balluff BNI005H is a PROFINET network module designed to connect industrial sensors and actuators to higher-level automation systems through IO-Link. It provides eight IO-Link ports, configurable digital inputs and outputs, and an IP67-rated metal housing for reliable operation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Industrial Automation |
| Part Number | BNI005H |
| Subcategory | PROFINET IO-Link Master Module |
| Auxiliary Interfaces | 8 × IO-Link |
| IO-Link Version | 1.1 |
| Port Class | Type A |
| Operating Voltage | 18–30.2 VDC |
| Digital Inputs | 16 × PNP, Type 3 |
| Digital Outputs | 16 × PNP |
| Maximum Output Current | 2 A |
| Sensor Current Sum | 9.0 A |
| Actuator Current Sum | 9.0 A |
| Communication Connectors | 2 × M12 × 1, 4-pin, D-coded |
| Supply Connectors | 7/8-inch, 5-pin input and output |
| Operating Temperature | −5 to +70 °C |
| Weight | 0.67 kg |
Information About BNI005H

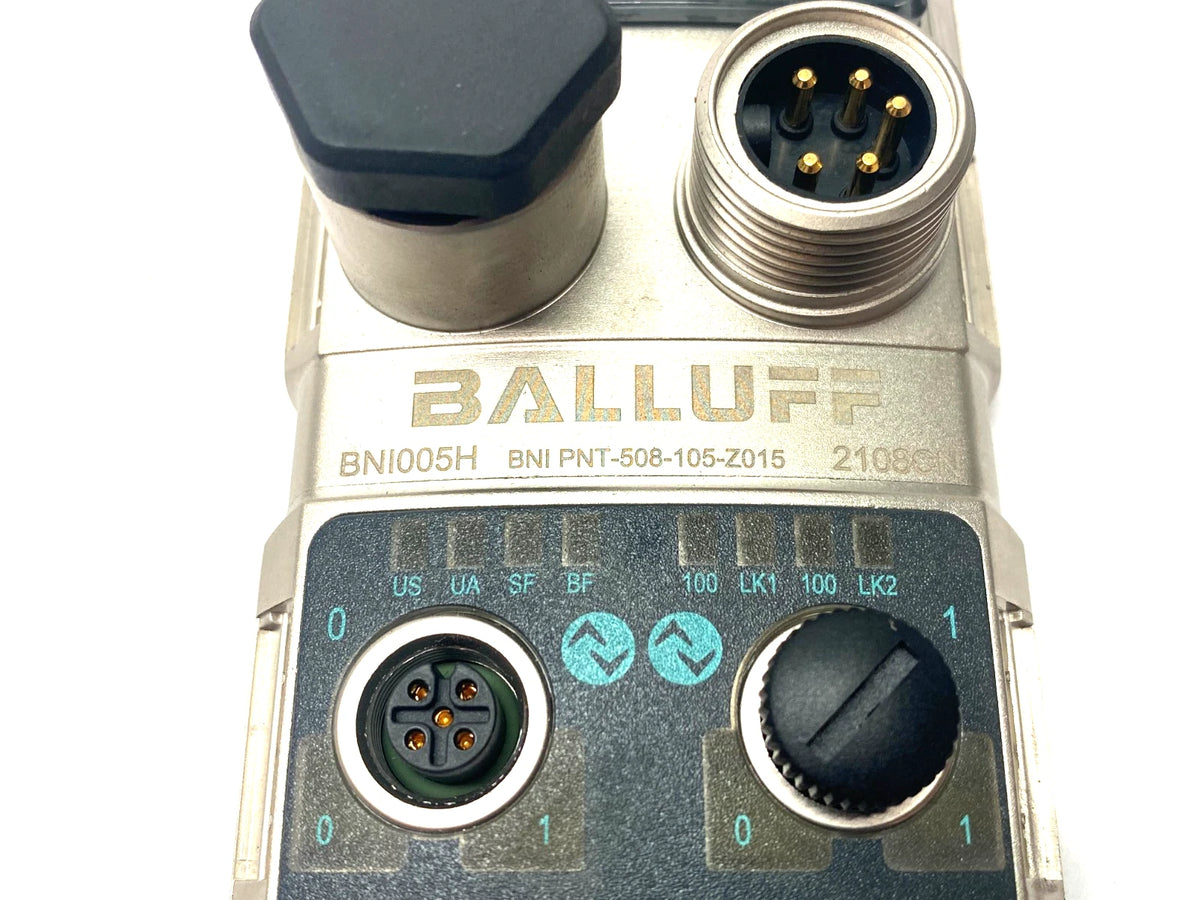

The Balluff BNI005H, model BNI PNT-508-105-Z015, is part of Balluff's Silver Line network modules for specialized applications. It supports PROFINET communication and provides eight Type A IO-Link ports for connecting compatible sensors and actuators. The module operates from an 18–30.2 VDC supply and supports configurable PNP digital inputs and outputs. Its die-cast zinc housing, integrated display, and IP67 protection rating make it suitable for machine-level installation.
Key Features:
- PROFINET Interface: Enables communication between connected field devices and compatible industrial controllers.
- Eight IO-Link Ports: Connects up to eight compatible IO-Link sensors and actuators.
- Configurable Digital I/O: Provides 16 PNP digital inputs and 16 PNP digital outputs.
- 18–30.2 VDC Supply: Operates across a wide industrial DC voltage range.
- IP67 Protection: Provides dust-tight protection and resistance to temporary water immersion under specified conditions.
- Integrated Display: Supports local status monitoring and diagnostics.
- Fast Start-Up Support: Supports Fast Start-Up functionality for compatible PROFINET applications.
- Rugged Metal Housing: Features nickel-plated die-cast zinc construction for industrial environments.
The Balluff BNI005H provides distributed I/O and IO-Link connectivity for compatible PROFINET industrial automation systems.
