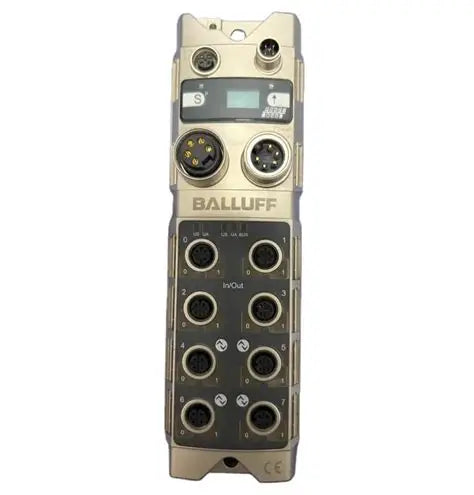

Balluff BNI005R PROFIBUS DP IO-Link Network Module
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI005R
Description
The Balluff BNI005R (BNI PBS-502-101-Z001) is a PROFIBUS DP network module designed to connect industrial sensors and actuators to automation and control systems. It features IO-Link connectivity and configurable digital inputs and outputs for flexible integration with compatible industrial equipment. Its rugged metal housing and IP67 protection rating make it suitable for demanding factory automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Industrial Automation |
| Part Number | BNI005R |
| Subcategory | PROFIBUS Network Modules |
| Manufacturer Model | BNI PBS-502-101-Z001 |
| Module Type | Active Network Module |
| Communication Interface | PROFIBUS DP, EN 50170 |
| Auxiliary Interfaces | 4 × IO-Link |
| IO-Link Version | 1.1 |
| Port Class | Type A |
| Connection Ports | 8 × M12 × 1, 5-pin, A-coded female |
| PROFIBUS Bus Input | M12 × 1, 5-pin, B-coded male |
| PROFIBUS Bus Output | M12 × 1, 5-pin, B-coded female |
| Power Supply Input | 7/8-inch, 5-pin male |
| Power Supply Output | 7/8-inch, 5-pin female |
| Maximum Output Current | 2 A |
| Total Sensor Supply Current | 9.0 A |
| Operating Voltage | 18–30.2 VDC |
| Storage Temperature | −25°C to +70°C |
| Weight | 735 g |
Information About BNI005R
The Balluff BNI005R is an industrial network module designed to support communication between field devices and higher-level automation controllers via PROFIBUS DP. It provides IO-Link connectivity for compatible sensors and actuators, helping simplify device integration and data exchange. Its configurable digital I/O supports a range of industrial control applications, while its industrial connectors and protected housing support installation in suitable factory environments.
Key Features:
- PROFIBUS DP Communication: Enables data exchange between connected field devices and compatible industrial controllers.
- Four IO-Link Interfaces: Connects compatible IO-Link sensors and actuators using IO-Link version 1.1.
- Eight M12 Connection Ports: Provides eight 5-pin, A-coded M12 female ports for field device connections.
- Configurable Digital I/O: Supports 16 PNP digital inputs and 16 PNP digital outputs.
- 18–30.2 VDC Operating Voltage: Supports a wide DC supply voltage range for industrial installations.
- 2 A Maximum Output Current: Supports connected devices within the specified output-current limits.
- IP67 Protection: Provides dust-tight protection and protection against temporary water immersion when properly connected.
- Durable Metal Housing: Features nickel-plated die-cast zinc construction for industrial environments.
The Balluff BNI005R provides reliable PROFIBUS DP and IO-Link connectivity for distributed I/O and industrial automation applications.
