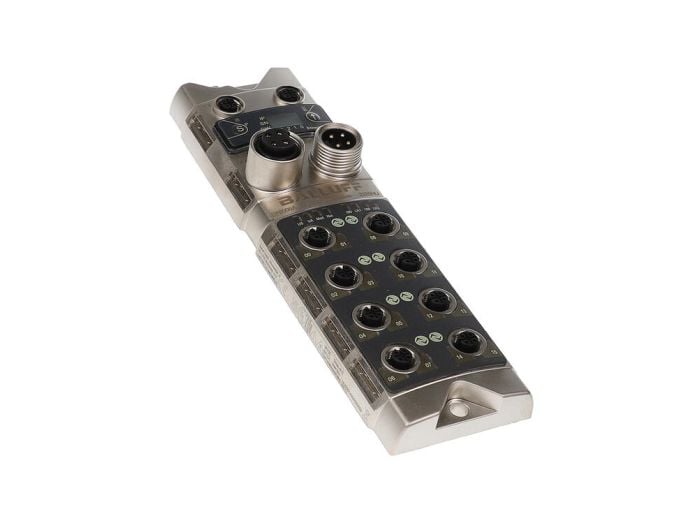

Balluff BNI006A EtherNet/IP IO-Link Interface Module
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI006A
Description
The Balluff BNI006A is an EtherNet/IP interface module designed to connect industrial sensors, actuators, and IO-Link devices to automation control systems. It provides eight IO-Link ports, 16 PNP digital inputs, and 16 PNP digital outputs for distributed machine control and monitoring.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BNI006A |
|
Subcategory |
Industrial Network Interface Module |
|
Model |
BNI EIP-508-105-Z015 |
|
Interface |
EtherNet/IP |
|
Operating Voltage |
18–30.2 V DC |
|
Rated Operating Voltage |
24 V DC |
|
IO-Link Ports |
8 |
|
IO-Link Version |
1.1 |
|
Digital Inputs |
16 × PNP |
|
Maximum Output Current |
2 A |
|
Sensor Supply Current Sum |
9.0 A |
|
Communication Connections |
2 × M12 female, 4-pin, D-coded |
|
Power Connections |
7/8-inch male, 4-pin input; 7/8-inch female, 4-pin output |
|
Housing Material |
Die-cast zinc, nickel-plated |
|
Protection Rating |
IP67 when properly connected |
|
Ambient Temperature |
−5 to 70 °C |
|
Storage Temperature |
−25 to 70 °C |
|
Dimensions |
68 × 37.9 × 224 mm |
|
Data Transfer Rate |
10–100 Mbit/s |
|
Network Addressing |
IPv4 |
|
IIoT Interfaces |
REST API, MQTT |
|
Approvals and Conformity |
CE, CSA, UL 94, ODVA |
|
Weight |
1.525 lb |
Information About BNI006A
The BNI006A belongs to Balluff’s BNI network interface product family and corresponds to model BNI EIP-508-105-Z015. It supports EtherNet/IP communication and IO-Link version 1.1, allowing compatible devices to exchange process and diagnostic data with industrial controllers. The module operates on an 18–30.2 V DC supply and includes two D-coded M12 communication connectors and 7/8-inch power connections. Its nickel-plated die-cast zinc housing and IP67 protection rating when properly connected support use in demanding industrial environments.
Key Features:
-
EtherNet/IP Communication: Integrates distributed I/O and IO-Link devices with industrial Ethernet networks.
-
Eight IO-Link Ports: Connects up to eight compatible IO-Link devices through M12 connectors.
-
Digital Inputs: Provides 16 PNP digital inputs for collecting sensor signals.
-
Digital Outputs: Provides 16 PNP digital outputs for controlling compatible actuators.
-
IO-Link Master: Supports IO-Link communication for device configuration, process data, and diagnostics.
-
24 V DC Operation: Accepts an operating voltage of 18–30.2 V DC.
-
Durable Metal Housing: Features die-cast zinc construction with nickel-plated surface protection.
-
IP67 Protection: Provides protection against dust and temporary water immersion when properly connected.
The BNI006A delivers the reliability and precision required for distributed I/O, industrial networking, and automated machine control.
