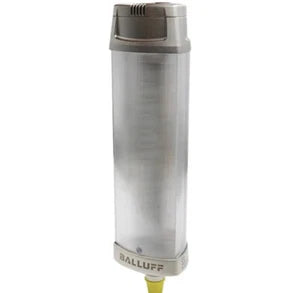

Balluff BNI008A SmartLight LED Signal Tower with Buzzer
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNI008A
Description
The Balluff BNI008A is a SmartLight LED signal tower with an integrated sound module, designed to provide visual and audible status indication in industrial automation systems. It features IO-Link 1.1 communication, configurable LED colors, and a maximum sound level of 95 dB, helping operators monitor machine status and process conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Industrial Automation |
| Part Number | BNI008A |
| Subcategory | LED Signal Tower |
| Model | BNI IOL-801-102-Z037 |
| Product Family | Silver Line SmartLight |
| Operating Principle | Indicator Light with Sound Module |
| Communication Interface | IO-Link 1.1 |
| Operating Voltage | 18–30.2 VDC |
| Connector | M12 × 1 Male, 4-Pin |
| Maximum Segments | 3 |
| LED Colors | Yellow, White, Green, Blue, Red, Orange |
| Maximum Sound Level | 95 dB |
| IO-Link Transfer Rate | COM2, 38.4 kBaud |
| Process Data Input | 1 byte |
| Process Data Output | 8 bytes |
| Operating Temperature | −5 to +50 °C |
| Dimensions | 60 × 60 × 234.5 mm |
| Weight | 0.47 kg |
Information About BNI008A
The Balluff BNI008A, model BNI IOL-801-102-Z037, belongs to the Silver Line SmartLight family. It operates on an 18–30.2 VDC supply and connects through a four-pin M12 male connector. The signal tower supports up to three segments and multiple display modes, including stack light, level indication, and chaser functions. IO-Link communication enables configuration and exchange of process data with compatible automation controllers.
Key Features:
- SmartLight LED Signal Tower: Provides visual status indication for industrial machinery and processes.
- Integrated Sound Module: Delivers audible alerts with a maximum sound level of 95 dB.
- IO-Link 1.1 Interface: Supports communication and configuration through compatible automation systems.
- Configurable LED Colors: Supports yellow, white, green, blue, red, and orange indication.
- Three-Segment Design: Supports up to three configurable signal segments.
- Multiple Display Modes: Supports stack light, level indicator, chaser, and flexible display functions.
- 18–30.2 VDC Supply: Operates across a compatible industrial DC voltage range.
- Compact Industrial Housing: Combines transparent polycarbonate and die-cast zinc construction.
The Balluff BNI008A provides configurable visual and audible signaling for compatible industrial automation and machine monitoring applications.
