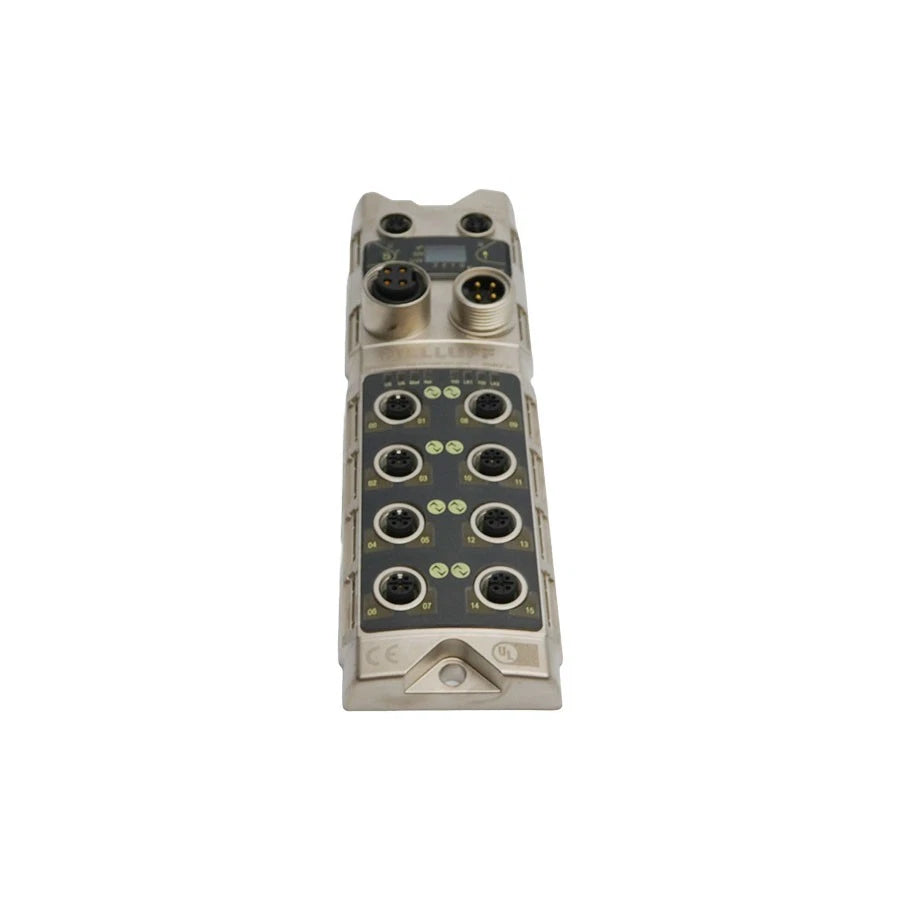

Balluff BNIEIP-508-105-Z015 Ethernet/IP 8-Port IO-Link Master IP67

Description

The Balluff BNIEIP-508-105-Z015 is an advanced industrial Ethernet/IP IO-Link master module engineered to streamline sensor and actuator communication in automated environments. Operating on an 18 to 30.2 VDC power supply, it features 8 IO-Link ports (Type A), 16 configurable PNP digital inputs, and 16 PNP digital outputs. Equipped with built-in IIoT interface support including REST API and MQTT parsed protocols, this rugged zinc die-cast module provides robust fieldbus connectivity and real-time device diagnostics.

Technical Specifications

Information About BNIEIP-508-105-Z015

The BNIEIP-508-105-Z015 belongs to Balluff's high-performance network module lineup designed for decentralized machine automation and Industry 4.0 data integration. Its dual D-coded M12 Ethernet ports enable seamless daisy-chain topology, while the 7/8" power connectors handle up to 9.0 A of total sensor current (US) and 9.0 A of actuator current (UA). Compatibility covers standard IO-Link V1.1.3 devices, PLC controllers supporting EtherNet/IP, and standard M12 sensor/actuator cabling. It is widely applied in automated assembly cells, robotic welding stations, packaging lines, and material handling systems.

Key Features:

• Module Type: Ethernet/IP IO-Link Master with IIoT Connectivity

• Network Protocol: EtherNet/IP with built-in REST API and MQTT parsed IIoT support

• IO-Link Ports: 8x IO-Link master ports (Type A, IO-Link Ver. 1.1.3)

• Digital I/O Capacity: 16x PNP Type 3 digital inputs and 16x PNP digital outputs (configurable)

• Power Specifications: 18 to 30.2 VDC operating voltage with 9.0 A US and 9.0 A UA current ratings

• Electrical Connections: M12 D-coded Ethernet ports, 7/8" power connectors, and M12 A-coded I/O slots

• Enclosure Construction: Heavy-duty zinc die-cast housing measuring 68 x 37.9 x 224 mm

• Environmental Rating: IP67 dust-tight and waterproof protection (-5 to +70 °C operating range)

The BNIEIP-508-105-Z015 delivers the reliability, flexibility, and high-speed data transmission required for modern industrial automation and smart factory networks.
