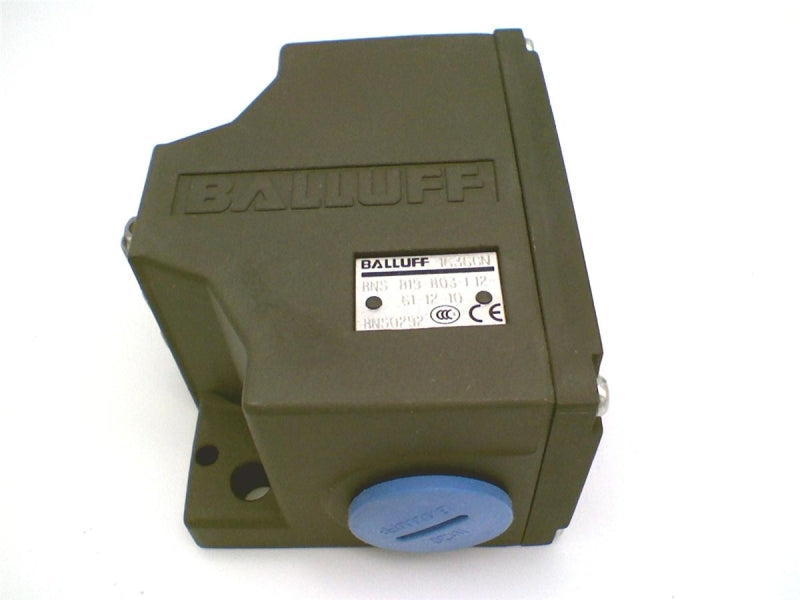

Balluff BNS 819-B03-L12-61-12-10 Three-Position Mechanical Limit Switch
- Regular price
- $815.00
- Sale price
- $815.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNS 819-B03-L12-61-12-10
Description
The Balluff BNS 819-B03-L12-61-12-10 is a mechanical multiple-position limit switch for monitoring machine travel and position. It combines three roller-bearing switching positions with snap-action contacts in an anodized aluminum housing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Sensors & Switches |
| Part Number | BNS 819-B03-L12-61-12-10 |
| Subcategory | Limit Switch |
| Order Code | BNS0292 |
| Product Type | Mechanical multiple-position limit switch |
| Number of Switching Positions | 3 |
| Actuator Type | Roller bearing at each switching position |
| Contact Version | Snap contact |
| Operating Principle | Mechanical, positions 1–3 |
| Continuous Current | 4 A per switching position |
| Rated Operating Voltage | 250 V AC per switching position |
| Switch Position Spacing | 12 mm |
| Installation Orientation | Vertical |
| Approach Direction | Longitudinal, parallel to attachment surface |
| Approach Speed | 120 m/min |
| Connection Type | Connector |
| Housing and Dimensions | Anodized aluminum; 79 × 48 × 63 mm |
| Environmental Ratings | IP67; ambient temperature −5 °C to +85 °C |
| Weight | 0.92 lbs |
Information About BNS 819-B03-L12-61-12-10
The BNS 819-B03-L12-61-12-10 is identified by Balluff order code BNS0292. Its three mechanical switching positions are arranged at 12 mm intervals for actuation at separate locations. The unit requires vertical installation with longitudinal approach parallel to the attachment surface. Connector-based wiring and an IP67 enclosure support integration into industrial position-monitoring circuits.
Key Features:
- Three Switching Positions: Provides three mechanically actuated positions within one housing.
- Roller-Bearing Actuation: Uses roller-bearing actuators for contact with the approaching mechanism.
- Snap-Action Contacts: Produces a defined contact transition when each switching position is actuated.
- Fixed Position Spacing: Arranges the switching positions at 12 mm intervals.
- Electrical Ratings: Specifies 4 A continuous current and 250 V AC rated operating voltage for each position.
- Approach Speed: Supports a specified approach speed of 120 m/min.
- Aluminum Housing: Uses anodized aluminum construction for industrial installation.
- Environmental Protection: Provides IP67 protection and an ambient operating range of −5 °C to +85 °C.
The BNS 819-B03-L12-61-12-10 delivers the reliability and precision required for mechanical position monitoring in automated machinery and production equipment.
