Balluff BNS 819-D03-R12-100-10-FD Three-Position Roller Limit Switch
- Regular price
- $789.00
- Sale price
- $789.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BNS 819-D03-R12-100-10-FD
Description

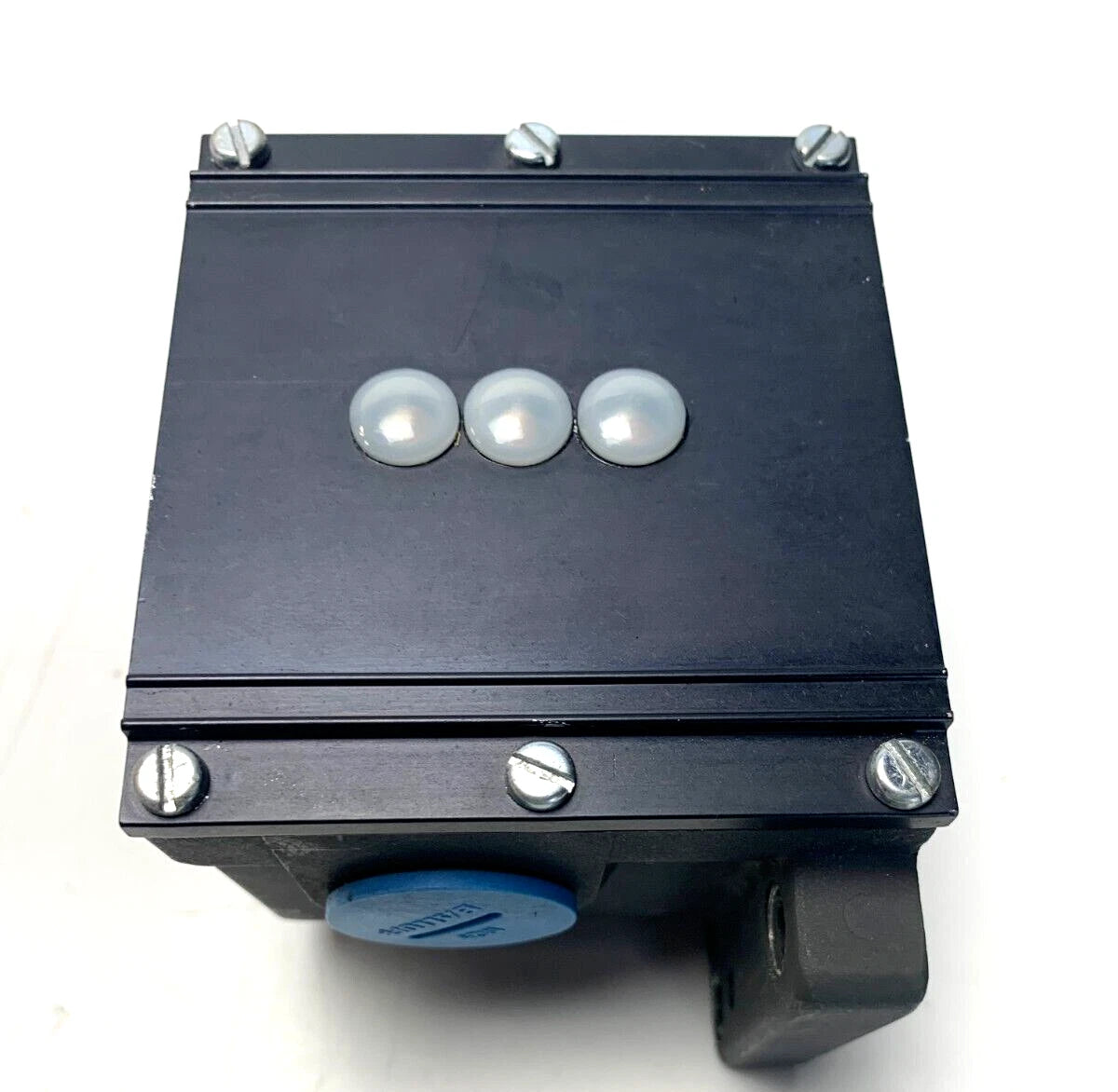

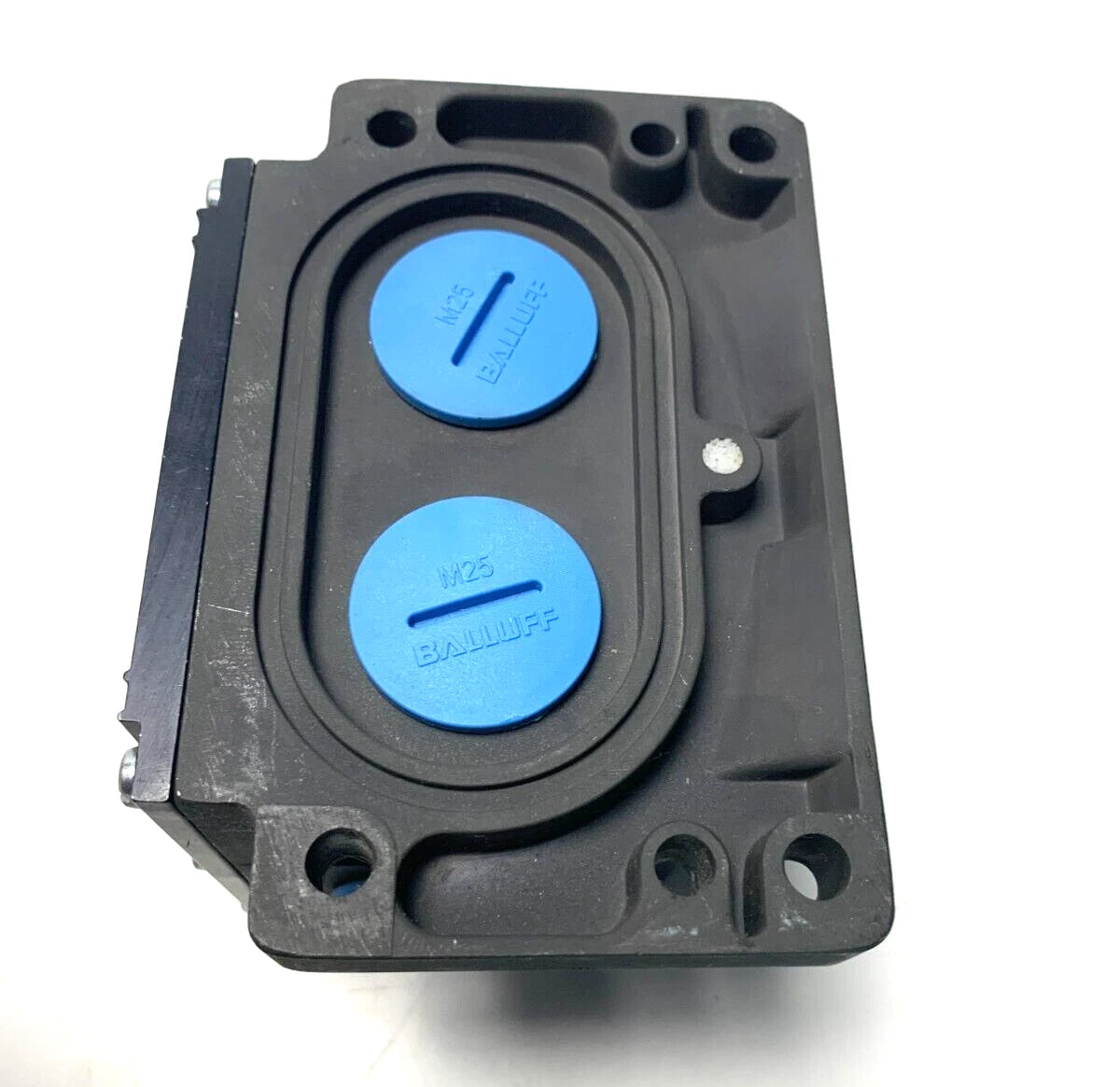

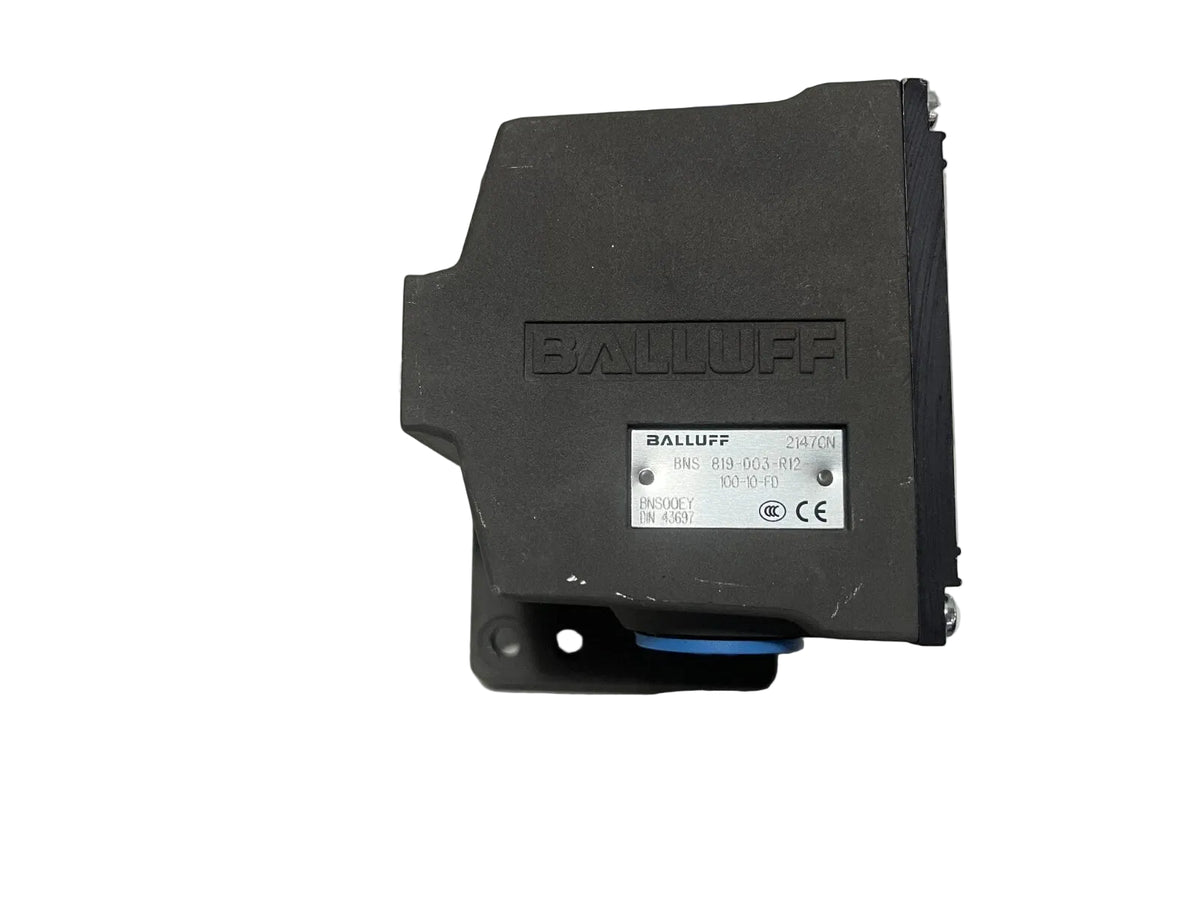

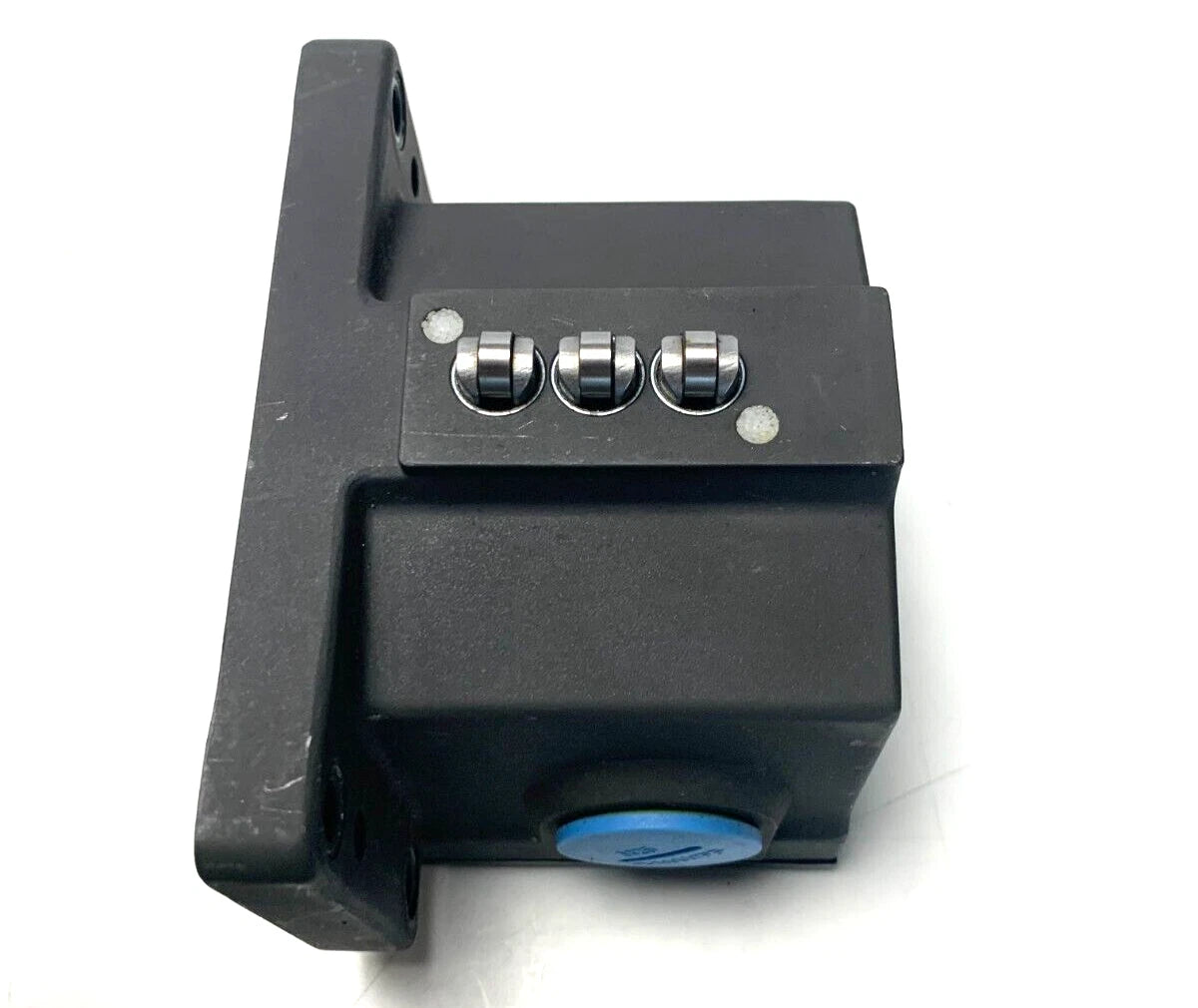

The Balluff BNS 819-D03-R12-100-10-FD is a mechanical multiple-position limit switch for monitoring movement in industrial machinery. It provides three roller-actuated switching positions with snap contacts, housed in an anodized aluminum enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Sensors & Switches |
| Part Number | BNS 819-D03-R12-100-10-FD |
| Subcategory | Limit Switch |
| Order Code | BNS00EY |
| Product Type | Mechanical multiple-position limit switch |
| Dimensions | 120 × 80 × 85 mm |
| Housing Material | Anodized aluminum |
| Number of Switching Positions | 3 |
| Actuator Type | Roller at each switching position |
| Contact Version | Snap contact |
| Operating Principle | Mechanical, positions 1–3 |
| Continuous Current | 6 A per switching position |
| Rated Operating Voltage | 250 V AC per switching position |
| Installation Orientation | Vertical |
| Approach Direction | Longitudinal, parallel to attachment surface |
| Approach Speed | 60 m/min |
| Switch Position Spacing | 12 mm |
| Connection and Environmental Ratings | Screw terminals; IP67; ambient temperature −5 °C to +85 °C |
| Weight | 2.00 lbs |
Information About BNS 819-D03-R12-100-10-FD
The BNS 819-D03-R12-100-10-FD is identified by Balluff order code BNS00EY. Its switching positions are spaced 12 mm apart, allowing separate mechanical actuation points within one assembly. Each position has a specified continuous current of 6 A and a rated operating voltage of 250 V AC. The unit uses screw terminals and requires vertical installation with longitudinal approach parallel to the attachment surface.
Key Features:
- Three-Position Assembly: Combines three mechanical switching positions in a single housing.
- Roller Actuation: Uses roller actuators to engage with moving machine components.
- Snap Contacts: Provides a defined switching transition as each actuator operates.
- Electrical Capacity: Specifies 6 A continuous current and 250 V AC rated operating voltage per position.
- Fixed Switching Intervals: Places the switching positions at 12 mm spacing.
- Approach Speed: Supports a specified actuation approach speed of 60 m/min.
- Screw-Terminal Wiring: Provides terminal connections for wiring the three switching positions.
- Protected Housing: Combines anodized aluminum construction with an IP67 enclosure rating.
The BNS 819-D03-R12-100-10-FD delivers the reliability and precision required for mechanical travel detection and position monitoring in automated equipment.
