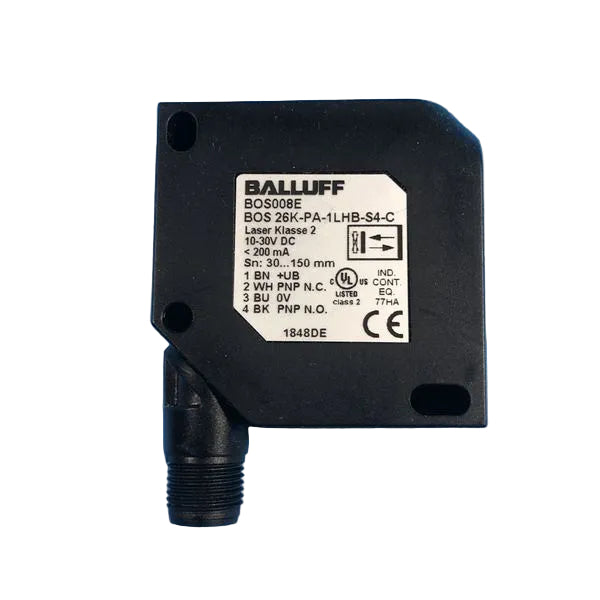

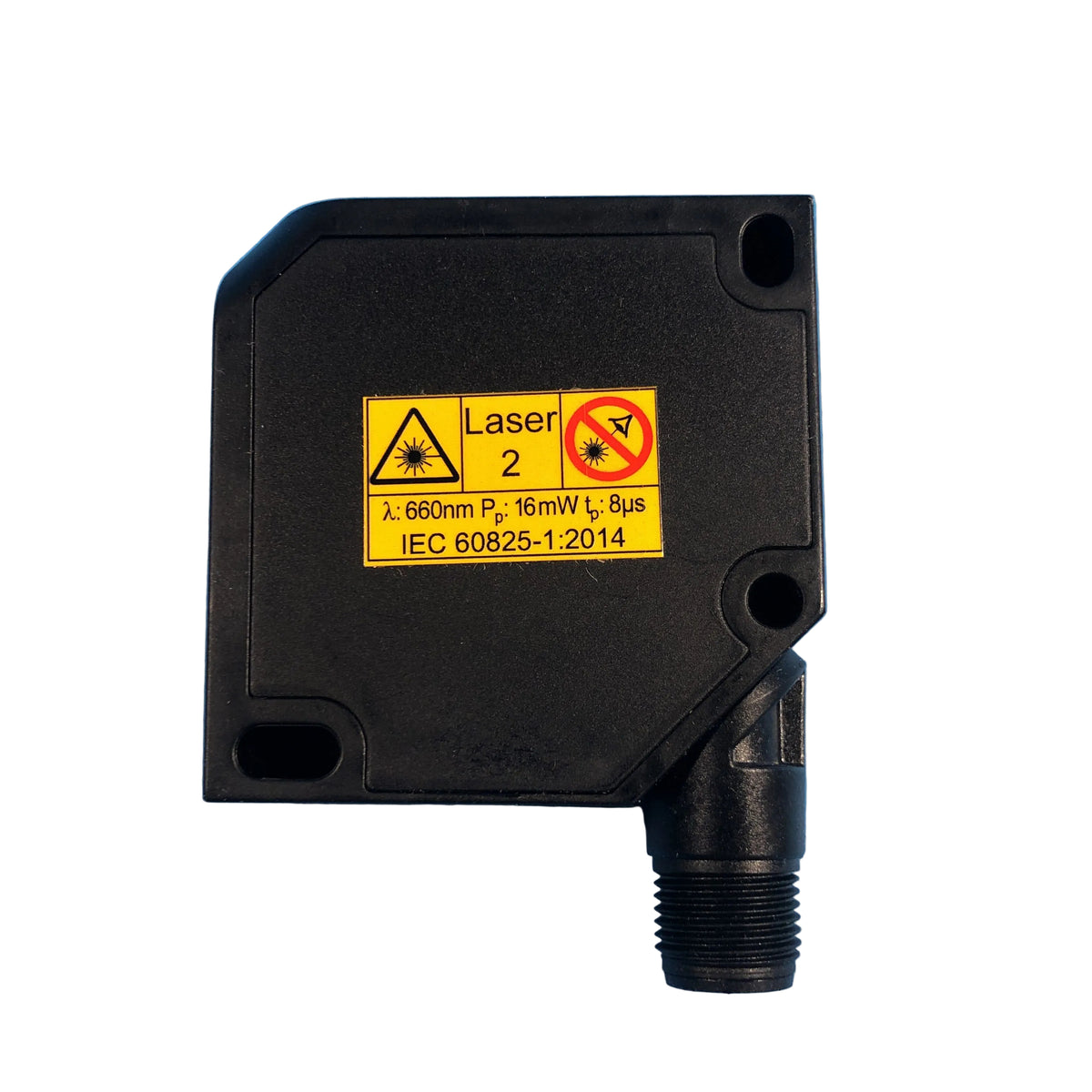

Balluff BOS008E Laser Photoelectric Sensor 30–150 mm Background Suppression
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BOS008E
Description
The Balluff BOS008E is a laser photoelectric sensor designed for non-contact object detection and distance-based sensing in industrial automation systems. It uses red laser light and triangulation with background suppression to detect targets within a 30–150 mm range, providing PNP normally open and normally closed switching outputs.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BOS008E |
|
Subcategory |
Photoelectric Sensors |
|
Model |
BOS 26K-PA-1LHB-S4-C |
|
Series |
26K |
|
Light Type |
Red laser |
|
Wavelength |
670 nm |
|
Laser Class |
Class 2 |
|
Sensing Range |
30–150 mm |
|
Optical Feature |
Background suppression |
|
Beam Characteristic |
Focused, typically at 80 mm |
|
Light Spot Size |
Ø 0.1 mm at focal point |
|
Switching Output |
PNP, normally open and normally closed |
|
Switching Frequency |
2,500 Hz |
|
Operating Voltage |
10–30 VDC |
|
Maximum Current |
Less than 200 mA |
|
Connection |
M12 × 1 male connector, 4-pin |
|
Housing Material |
ABS |
|
Sensing Surface Material |
PMMA |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
-20 to 45 °C |
|
Dimensions |
17 × 50 × 50 mm |
|
Approvals |
CE, cULus, UKCA, WEEE |
|
Weight |
0.077 lb |
Information About BOS008E
The BOS008E belongs to Balluff’s 26K series of compact photoelectric sensors and corresponds to model BOS 26K-PA-1LHB-S4-C. Its focused laser beam produces a spot size of approximately 0.1 mm at the focal point, supporting detection of small objects and precise positioning tasks. The sensor operates on 10–30 VDC and connects through a 4-pin M12 male connector. Its ABS housing, PMMA sensing surface, and IP67 protection rating support use in industrial environments.
Key Features:
-
Laser Photoelectric Detection: Uses red laser light and triangulation for non-contact object sensing.
-
Background Suppression: Helps distinguish targets from backgrounds within the sensing range.
-
Sensing Range: Detects objects at distances from 30 to 150 mm.
-
Dual PNP Outputs: Supports normally open and normally closed switching functions.
-
Focused Laser Spot: Provides an approximately 0.1 mm spot at the focal point.
-
Fast Switching: Supports a switching frequency of up to 2,500 Hz.
-
Industrial Connection: Uses a 4-pin M12 × 1 male connector.
-
Environmental Protection: Offers IP67 protection and an operating temperature range of -20 to 45 °C.
The BOS008E delivers the reliability and precision required for object detection, positioning, and automated inspection applications.
