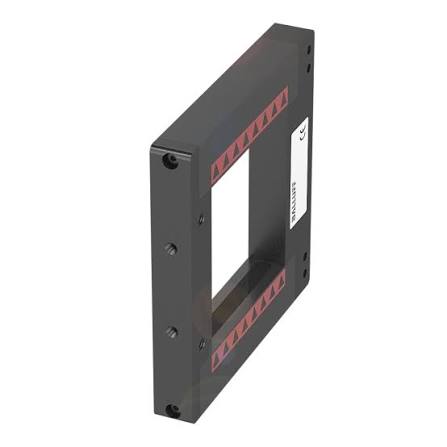

Balluff BOW A-0808-PS-C-S49 Optical Window Sensor
- Regular price
- $1,602.00
- Sale price
- $1,602.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BOW A-0808-PS-C-S49
Description
The Balluff BOW A-0808-PS-C-S49 is a dynamic optical window sensor designed to detect falling objects as they pass through its 80 × 80 mm active detection area. It uses infrared through-beam technology with a PNP normally open switching output, making it suitable for object detection, counting, and monitoring applications in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Industrial Automation |
| Part Number | BOW A-0808-PS-C-S49 |
| Subcategory | Optical Window Sensor |
| Order Code | BOW001J |
| Sensor Type | Dynamic Optical Window Sensor |
| Active Window | 80 × 80 mm |
| Operating Voltage | 10–30 VDC |
| Output Type | PNP Dynamic, Normally Open (NO) |
| Maximum Output Current | 200 mA |
| Light Source | Infrared LED |
| Wavelength | 880 nm |
| Resolution | 1.0 mm typical smallest detectable part |
| Switching Frequency | Up to 100 Hz dynamic |
| Connection | M8 × 1, 3-pin male connector |
| Housing Material | Black Anodized Aluminum |
| Sensing Surface | PMMA |
| Operating Temperature | −10 to +55 °C |
| Weight | 590 g |
Information About BOW A-0808-PS-C-S49
The Balluff BOW A-0808-PS-C-S49, order code BOW001J, belongs to the Series A optical window sensor family. It operates with a 10–30 VDC supply and uses infrared light with an 880 nm wavelength to detect objects passing through the sensing window. The sensor features an anodized aluminum housing, a PMMA sensing surface, and an M8 three-pin connector. Adjustable sensitivity and timing functions allow configuration for compatible object detection applications.
Key Features:
- 80 × 80 mm Active Window: Detects objects passing through the defined sensing area.
- Dynamic Object Detection: Designed to detect falling objects and support counting applications.
- Infrared Through-Beam Technology: Uses 880 nm infrared light for optical detection.
- PNP Normally Open Output: Provides a dynamic switching signal when the detection condition is met.
- 10–30 VDC Supply: Operates across a wide industrial DC voltage range.
- Adjustable Sensitivity and Timing: Includes potentiometer adjustments for sensitivity and delay settings.
- Durable Aluminum Housing: Features black anodized aluminum and a PMMA sensing surface.
- IP67 Protection: Designed to resist dust ingress and temporary immersion under specified test conditions.
The Balluff BOW A-0808-PS-C-S49 provides dynamic optical object detection for compatible industrial automation and counting systems.
