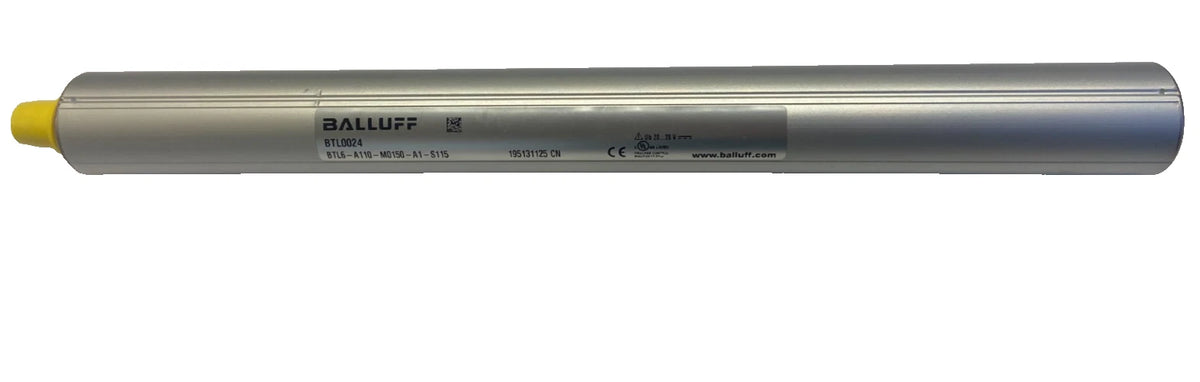

Balluff BTL0024 Magnetostrictive Linear Position Sensor 150 mm
- Regular price
- $1,097.00
- Sale price
- $1,097.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BTL0024
Description
The Balluff BTL0024 is a magnetostrictive linear position sensor designed for accurate, continuous measurement of linear displacement in industrial automation systems. It features a 150 mm measuring range and a selectable 0–10 V or 10–0 V analog voltage output for integration with compatible control equipment.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BTL0024 |
|
Subcategory |
Magnetostrictive Linear Position Sensor |
|
Full Model |
BTL6-A110-M0150-A1-S115 |
|
Design |
Profile series |
|
Measuring Range |
150 mm |
|
Analog Output |
0–10 V or 10–0 V |
|
Resolution |
≤20 µm |
|
Repeat Accuracy |
≤±10 µm |
|
Maximum Non-Linearity |
±200 µm |
|
Maximum Sampling Frequency |
1,000 Hz |
|
Operating Voltage |
20–28 V DC |
|
Maximum Current Consumption |
70 mA at 24 V DC |
|
Maximum Output Current |
5 mA |
|
Electrical Connection |
Axial M12 × 1, 8-pin connector |
|
Mounting |
Mounting clamps |
|
Housing Material |
Anodized aluminum |
|
Cover Material |
Die-cast zinc |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
0 to 70 °C |
|
Installation Length |
296 mm |
|
Profile Diameter |
30 mm |
|
Null Point |
73 mm |
|
Approvals and Conformity |
CE, UKCA, cULus, WEEE |
|
Weight |
0.75 lb |
Information About BTL0024
The BTL0024 corresponds to the Balluff BTL6-A110-M0150-A1-S115 magnetostrictive position sensor from the BTL6 series. It uses a profile-style anodized aluminum housing and mounting clamps for installation in industrial positioning applications. The sensor provides a resolution of ≤20 µm, repeat accuracy of ≤±10 µm, and maximum non-linearity of ±200 µm. Its 8-pin M12 connector, 20–28 V DC operating range, and IP67 protection rating support integration into industrial control systems.
Key Features:
-
Magnetostrictive Measurement: Provides continuous linear position feedback for industrial machinery.
-
150 mm Measuring Range: Measures linear displacement over a nominal range of 150 mm.
-
Analog Voltage Output: Supports selectable 0–10 V or 10–0 V output signals.
-
High Resolution: Offers resolution of ≤20 µm for position measurement.
-
Repeat Accuracy: Provides repeat accuracy of ≤±10 µm.
-
Anodized Aluminum Housing: Features a durable profile-style housing for industrial installation.
-
M12 Electrical Connection: Uses an 8-pin M12 connector with an axial connection design.
-
IP67 Protection: Protects against dust and temporary water immersion when properly connected.
The BTL0024 delivers the reliability and precision required for linear position feedback, machine positioning, and industrial automation applications.
Description
The Balluff BTL0024 is a magnetostrictive linear position sensor designed for accurate, continuous measurement of linear displacement in industrial automation systems. It features a 150 mm measuring range and a selectable 0–10 V or 10–0 V analog voltage output for integration with compatible control equipment.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BTL0024 |
|
Subcategory |
Magnetostrictive Linear Position Sensor |
|
Full Model |
BTL6-A110-M0150-A1-S115 |
|
Design |
Profile series |
|
Measuring Range |
150 mm |
|
Analog Output |
0–10 V or 10–0 V |
|
Resolution |
≤20 µm |
|
Repeat Accuracy |
≤±10 µm |
|
Maximum Non-Linearity |
±200 µm |
|
Maximum Sampling Frequency |
1,000 Hz |
|
Operating Voltage |
20–28 V DC |
|
Maximum Current Consumption |
70 mA at 24 V DC |
|
Maximum Output Current |
5 mA |
|
Electrical Connection |
Axial M12 × 1, 8-pin connector |
|
Mounting |
Mounting clamps |
|
Housing Material |
Anodized aluminum |
|
Cover Material |
Die-cast zinc |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
0 to 70 °C |
|
Installation Length |
296 mm |
|
Profile Diameter |
30 mm |
|
Null Point |
73 mm |
|
Approvals and Conformity |
CE, UKCA, cULus, WEEE |
|
Weight |
0.75 lb |
Information About BTL0024
The BTL0024 corresponds to the Balluff BTL6-A110-M0150-A1-S115 magnetostrictive position sensor from the BTL6 series. It uses a profile-style anodized aluminum housing and mounting clamps for installation in industrial positioning applications. The sensor provides a resolution of ≤20 µm, repeat accuracy of ≤±10 µm, and maximum non-linearity of ±200 µm. Its 8-pin M12 connector, 20–28 V DC operating range, and IP67 protection rating support integration into industrial control systems.
Key Features:
-
Magnetostrictive Measurement: Provides continuous linear position feedback for industrial machinery.
-
150 mm Measuring Range: Measures linear displacement over a nominal range of 150 mm.
-
Analog Voltage Output: Supports selectable 0–10 V or 10–0 V output signals.
-
High Resolution: Offers resolution of ≤20 µm for position measurement.
-
Repeat Accuracy: Provides repeat accuracy of ≤±10 µm.
-
Anodized Aluminum Housing: Features a durable profile-style housing for industrial installation.
-
M12 Electrical Connection: Uses an 8-pin M12 connector with an axial connection design.
-
IP67 Protection: Protects against dust and temporary water immersion when properly connected.
The BTL0024 delivers the reliability and precision required for linear position feedback, machine positioning, and industrial automation applications.
