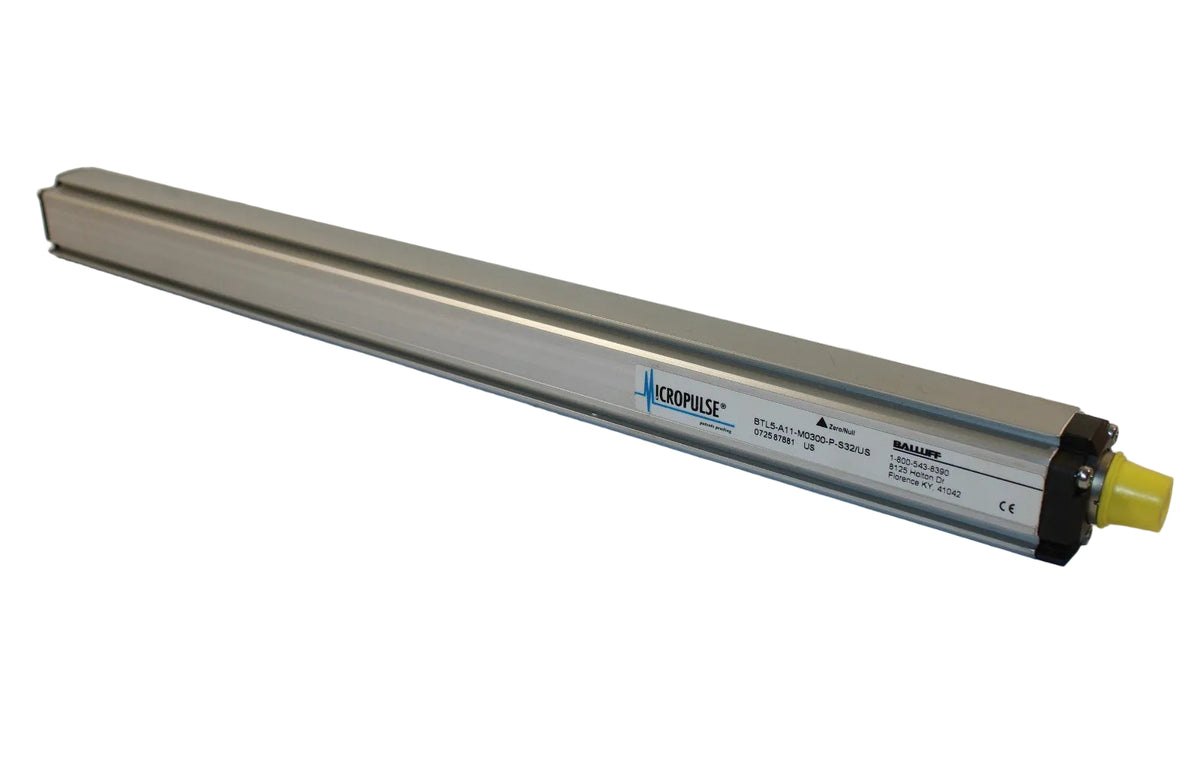

BALLUFF BTL5-A11-M0300-P-S32/US 300 mm Linear Position Transducer
- Regular price
- $1,055.00
- Sale price
- $1,055.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BTL5-A11-M0300-P-S32/US
Description
The BALLUFF BTL5-A11-M0300-P-S32/US is a magnetostrictive linear position transducer designed for precise, non-contact measurement of linear displacement in industrial automation systems. It features a 300 mm measuring range and an analog voltage output selectable between 0–10 V and 10–0 V. Its aluminum profile housing, 24 V DC-class power supply, and rugged construction make it suitable for position feedback in industrial machinery and motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | BALLUFF |
| Category | Sensors & Switches |
| Part Number | BTL5-A11-M0300-P-S32/US |
| Subcategory | Linear Position Transducer |
| Product Series | Micropulse BTL5 |
| Sensor Type | Magnetostrictive Linear Position Sensor |
| Measuring Length | 300 mm |
| Output Signal | 0–10 V / 10–0 V |
| Operating Voltage | 20–28 V DC |
| Maximum Current Consumption | 150 mA at 24 V DC |
| Maximum Output Current | 5 mA |
| Connection | 8-pin M16 connector |
| Protection Rating | IP67 with connector |
| Housing Material | Anodized Aluminum |
| Overall Length | 446 mm |
| Operating Temperature | -40°C to +85°C |
| Weight | 0.62 kg |
Information About BTL5-A11-M0300-P-S32/US
The BTL5-A11-M0300-P-S32/US belongs to the BALLUFF Micropulse BTL5 series of magnetostrictive linear position transducers with profile-style housing. It detects the position of a compatible magnet without mechanical contact and converts the measured position into an analog voltage signal. The sensor operates from a 20–28 V DC supply and uses an 8-pin M16 connector for electrical connection. Its IP67 protection rating when connected and anodized aluminum housing support use in demanding industrial environments.
Key Features:
- Magnetostrictive Measurement: Provides non-contact linear position measurement for industrial automation.
-
Profile-Style Housing: Uses a durable anodized aluminum housing for industrial installation.
-
Industrial Protection: Rated IP67 when the connector is properly connected.
-
M16 Electrical Connection: Features an axial 8-pin M16 connector for system integration.
-
High Measurement Resolution: Offers a specified resolution of up to ±2 µm under the manufacturer's stated conditions.
The BTL5-A11-M0300-P-S32/US delivers precise linear position feedback for industrial automation, machine control, and motion monitoring applications.
