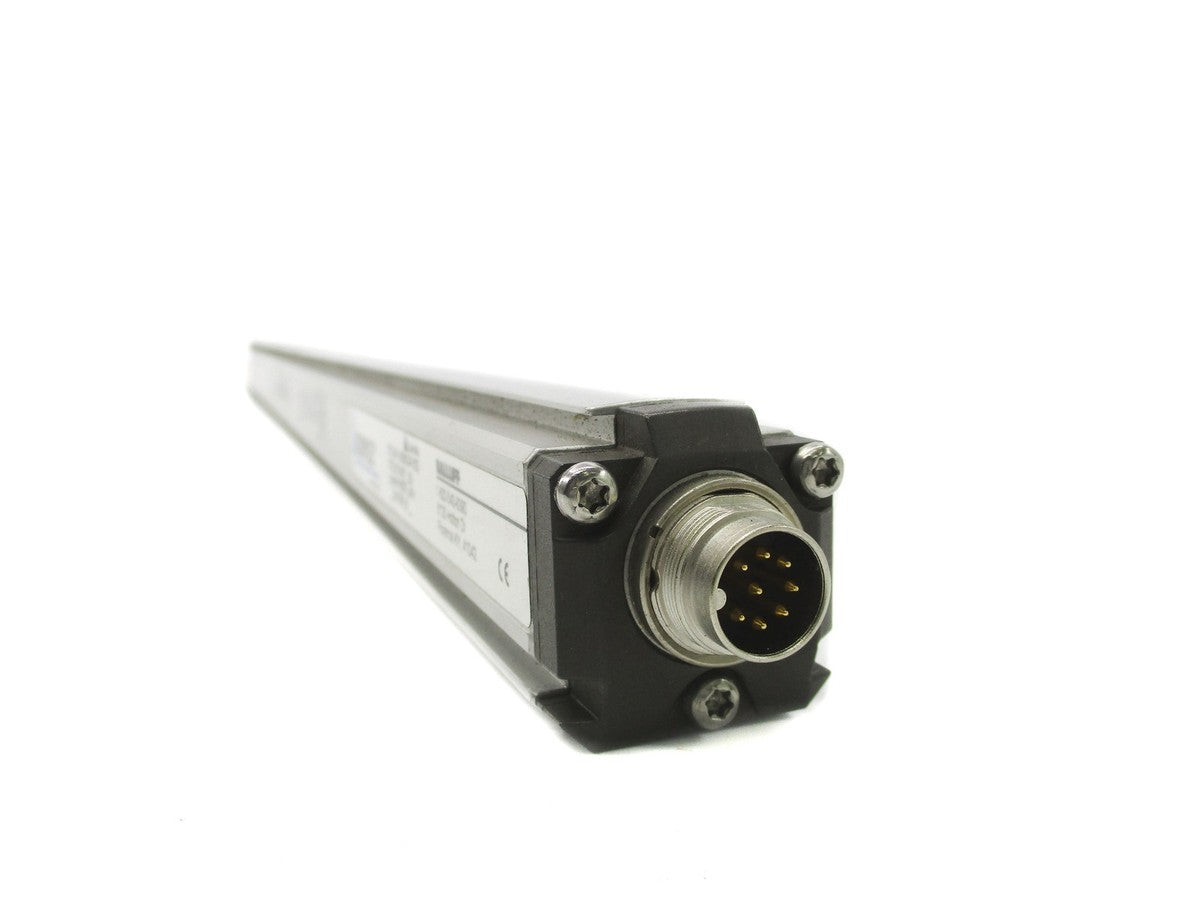

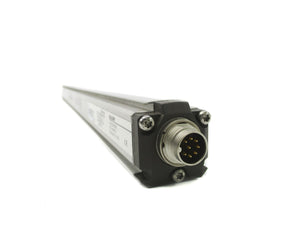

Balluff BTL5-M1-M0610-P-S32 Micropulse Linear Position Transducer 610 mm
- Regular price
- $1,115.00
- Sale price
- $1,115.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BTL5-M1-M0610-P-S32
Description
The Balluff BTL5-M1-M0610-P-S32 is a Micropulse linear position transducer designed to measure linear displacement with high precision in industrial automation and motion-control applications. It uses a digital differential Start/Stop interface with leading-edge activation and provides a 610 mm measurement stroke.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BTL5-M1-M0610-P-S32 |
|
Subcategory |
Linear Position Transducers |
|
Product Family |
Micropulse |
|
Measurement Stroke |
610 mm |
|
Interface |
Digital Start/Stop, differential |
|
Active Edge |
Rising |
|
Supply Voltage |
20–28 VDC |
|
Current Consumption |
Maximum 50 mA at 24 VDC |
|
Inrush Current |
≤ 3 A for 0.5 ms |
|
Repeat Accuracy |
≤ 2 µm |
|
Reproducibility |
≤ 4 µm |
|
Resolution |
≤ 2 µm |
|
Maximum Non-Linearity |
±0.02% FS |
|
Maximum Sampling Rate |
2,000 Hz |
|
Housing Material |
Anodized aluminum |
|
Mounting |
Mounting clamps |
|
Protection Rating |
IP67 when connected |
|
Operating Temperature |
-40 to 85 °C |
|
Storage Temperature |
-40 to 100 °C |
|
Relative Humidity |
≤ 90%, non-condensing |
|
Approvals |
CE, cULus |
|
Weight |
2.15 lb |
Information About BTL5-M1-M0610-P-S32
The BTL5-M1-M0610-P-S32 belongs to Balluff’s Micropulse linear position measurement product family and features a standard anodized aluminum profile housing. It operates from a 20–28 VDC supply and uses an 8-pin metal quick-disconnect connector for electrical connection. The transducer offers repeat accuracy of up to 2 µm, reproducibility of up to 4 µm, and a maximum sampling rate of 2,000 Hz. Its IP67 protection rating when connected and wide operating temperature range support demanding industrial environments.
Key Features:
-
Linear Position Measurement: Measures displacement over a 610 mm stroke.
-
Digital Start/Stop Interface: Uses a differential Start/Stop output with leading-edge activation.
-
High Repeat Accuracy: Provides repeat accuracy of up to 2 µm.
-
Measurement Reproducibility: Offers reproducibility of up to 4 µm.
-
Fast Sampling: Supports a maximum sampling rate of 2,000 Hz.
-
Rugged Housing: Features a standard anodized aluminum profile.
-
Electrical Connection: Uses an 8-pin metal quick-disconnect connector.
-
Environmental Protection: Provides IP67 protection when connected and operates from -40 to 85 °C.
The BTL5-M1-M0610-P-S32 delivers the reliability and precision required for linear position feedback, industrial motion control, and automated machinery.
Description
The Balluff BTL5-M1-M0610-P-S32 is a Micropulse linear position transducer designed to measure linear displacement with high precision in industrial automation and motion-control applications. It uses a digital differential Start/Stop interface with leading-edge activation and provides a 610 mm measurement stroke.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BTL5-M1-M0610-P-S32 |
|
Subcategory |
Linear Position Transducers |
|
Product Family |
Micropulse |
|
Measurement Stroke |
610 mm |
|
Interface |
Digital Start/Stop, differential |
|
Active Edge |
Rising |
|
Supply Voltage |
20–28 VDC |
|
Current Consumption |
Maximum 50 mA at 24 VDC |
|
Inrush Current |
≤ 3 A for 0.5 ms |
|
Repeat Accuracy |
≤ 2 µm |
|
Reproducibility |
≤ 4 µm |
|
Resolution |
≤ 2 µm |
|
Maximum Non-Linearity |
±0.02% FS |
|
Maximum Sampling Rate |
2,000 Hz |
|
Housing Material |
Anodized aluminum |
|
Mounting |
Mounting clamps |
|
Protection Rating |
IP67 when connected |
|
Operating Temperature |
-40 to 85 °C |
|
Storage Temperature |
-40 to 100 °C |
|
Relative Humidity |
≤ 90%, non-condensing |
|
Approvals |
CE, cULus |
|
Weight |
2.15 lb |
Information About BTL5-M1-M0610-P-S32
The BTL5-M1-M0610-P-S32 belongs to Balluff’s Micropulse linear position measurement product family and features a standard anodized aluminum profile housing. It operates from a 20–28 VDC supply and uses an 8-pin metal quick-disconnect connector for electrical connection. The transducer offers repeat accuracy of up to 2 µm, reproducibility of up to 4 µm, and a maximum sampling rate of 2,000 Hz. Its IP67 protection rating when connected and wide operating temperature range support demanding industrial environments.
Key Features:
-
Linear Position Measurement: Measures displacement over a 610 mm stroke.
-
Digital Start/Stop Interface: Uses a differential Start/Stop output with leading-edge activation.
-
High Repeat Accuracy: Provides repeat accuracy of up to 2 µm.
-
Measurement Reproducibility: Offers reproducibility of up to 4 µm.
-
Fast Sampling: Supports a maximum sampling rate of 2,000 Hz.
-
Rugged Housing: Features a standard anodized aluminum profile.
-
Electrical Connection: Uses an 8-pin metal quick-disconnect connector.
-
Environmental Protection: Provides IP67 protection when connected and operates from -40 to 85 °C.
The BTL5-M1-M0610-P-S32 delivers the reliability and precision required for linear position feedback, industrial motion control, and automated machinery.
