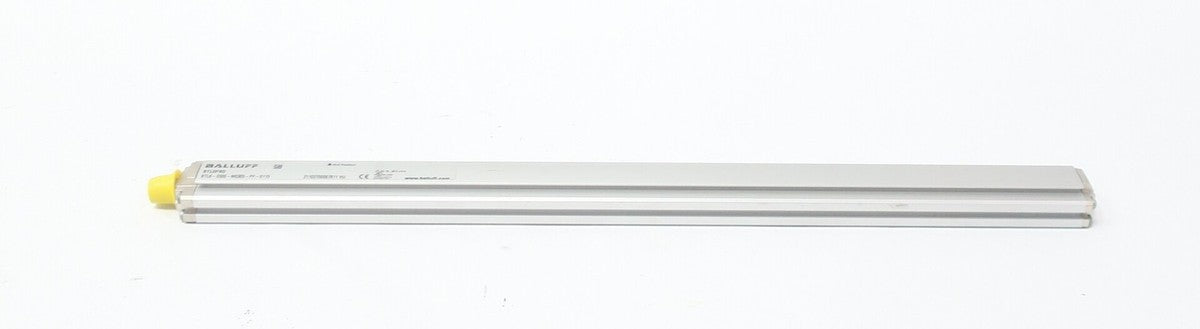

Balluff BTL6-E500-M0305-PF-S115 Magnetostrictive Position Sensor
- Regular price
- $405.00
- Sale price
- $405.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BTL6-E500-M0305-PF-S115
Description
The Balluff BTL6-E500-M0305-PF-S115 is a magnetostrictive linear position sensor designed for precise, non-contact measurement of linear position in industrial automation and machine-control systems. It provides a 305 mm measuring range, 4–20 mA analog current output, 10–30 VDC operation, and IP67 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Industrial Automation |
| Part Number | BTL6-E500-M0305-PF-S115 |
| Subcategory | Linear Position Sensors |
| Product Type | Magnetostrictive Linear Position Sensor |
| Series | BTL6 Profile PF |
| Measuring Range | 305 mm |
| Analog Output | 4–20 mA |
| Supply Voltage | 10–30 VDC |
| Resolution | ≤700 nA |
| Linearity Deviation | ±200 µm max. |
| Repeatability | ±0.002% FS |
| Maximum Measurement Rate | 2 kHz |
| Housing Material | Anodized Aluminum |
| Connection | M12 × 1, 8-pin connector |
| Mounting | Mounting Clamps |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +70°C |
| Housing Length | 451 mm |
| Weight | 1.36 kg |
Information About BTL6-E500-M0305-PF-S115
The BTL6-E500-M0305-PF-S115 belongs to the Balluff BTL6 Profile PF series of magnetostrictive position sensors. Its non-contact measurement principle provides absolute position measurement using a position magnet that interacts with the sensing element through the aluminum profile housing. The sensor uses a programmable analog current output and an axial connector for electrical connection. Its anodized aluminum housing and IP67 rating support use in demanding industrial environments.
Key Features:
- Magnetostrictive Measurement: Provides absolute, non-contact linear position measurement.
- 305 mm Measuring Range: Supports linear position measurement over a 305 mm range.
- 4–20 mA Output: Provides an analog current signal for industrial control systems.
- 10–30 VDC Supply: Designed for standard industrial DC power supplies.
- High Measurement Speed: Supports measurement rates up to 2 kHz.
- IP67 Protection: Provides protection against dust and temporary water immersion when properly connected.
- Aluminum Housing: Uses an anodized aluminum profile enclosure.
- High Repeatability: Specified repeatability is ±0.002% of full scale.
The BTL6-E500-M0305-PF-S115 delivers precise position feedback required for industrial automation and machine-control applications.
