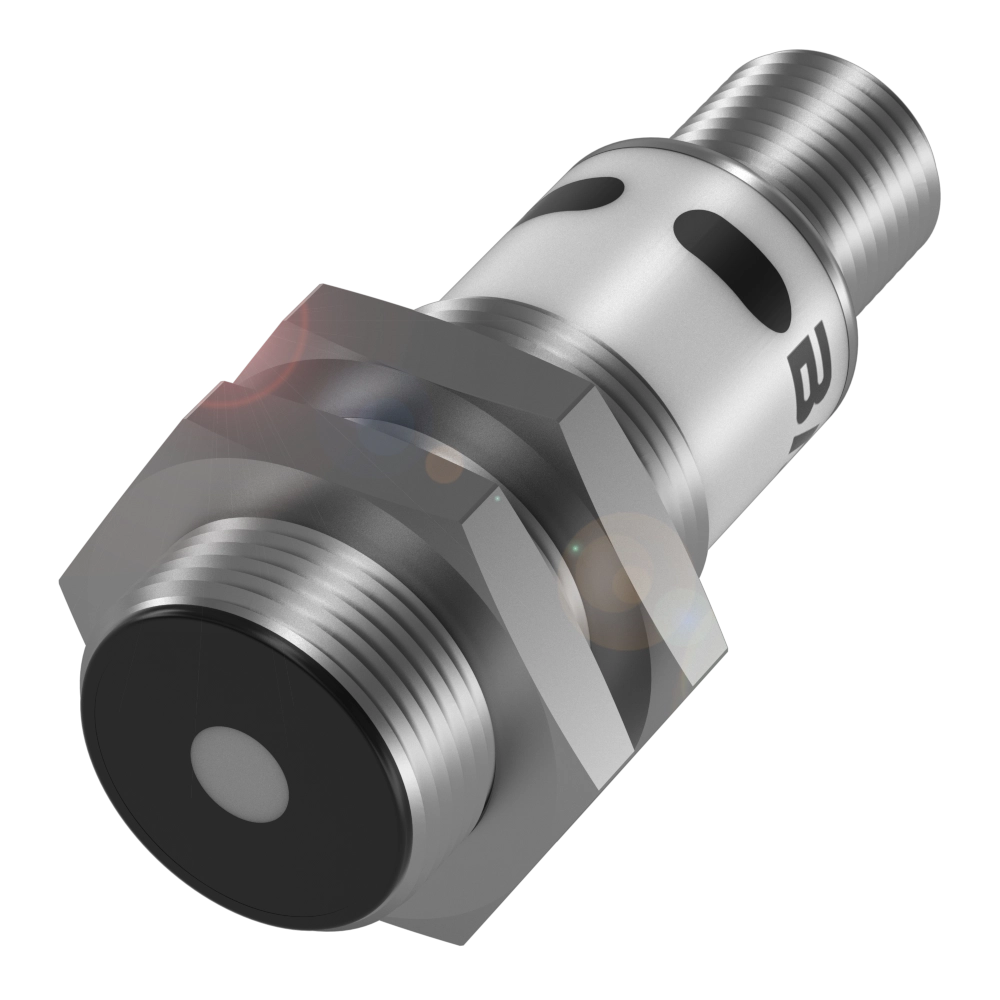

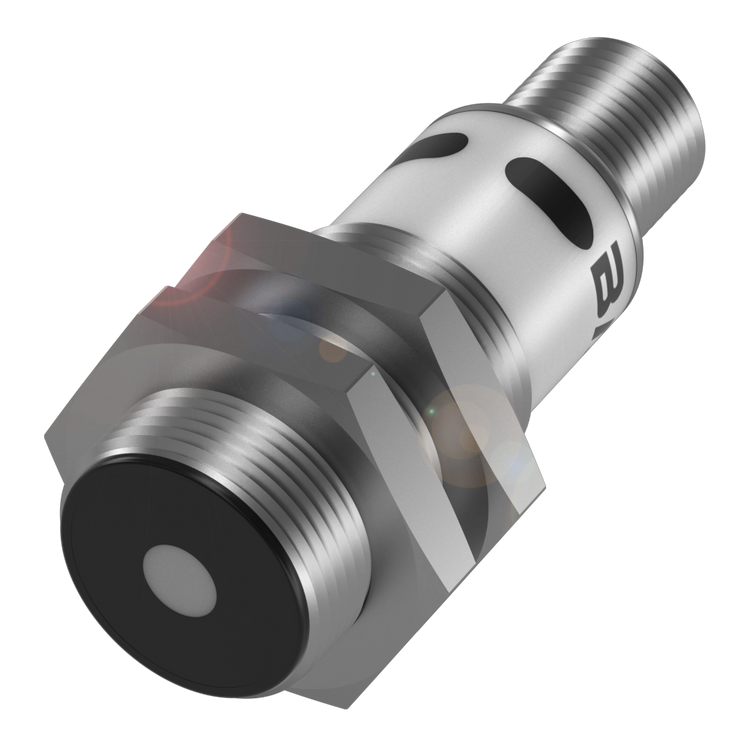

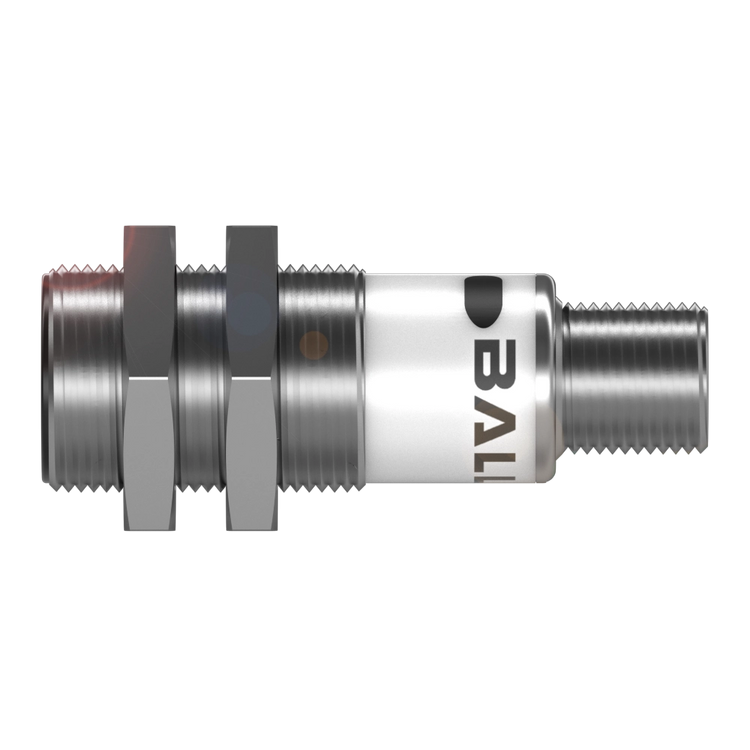

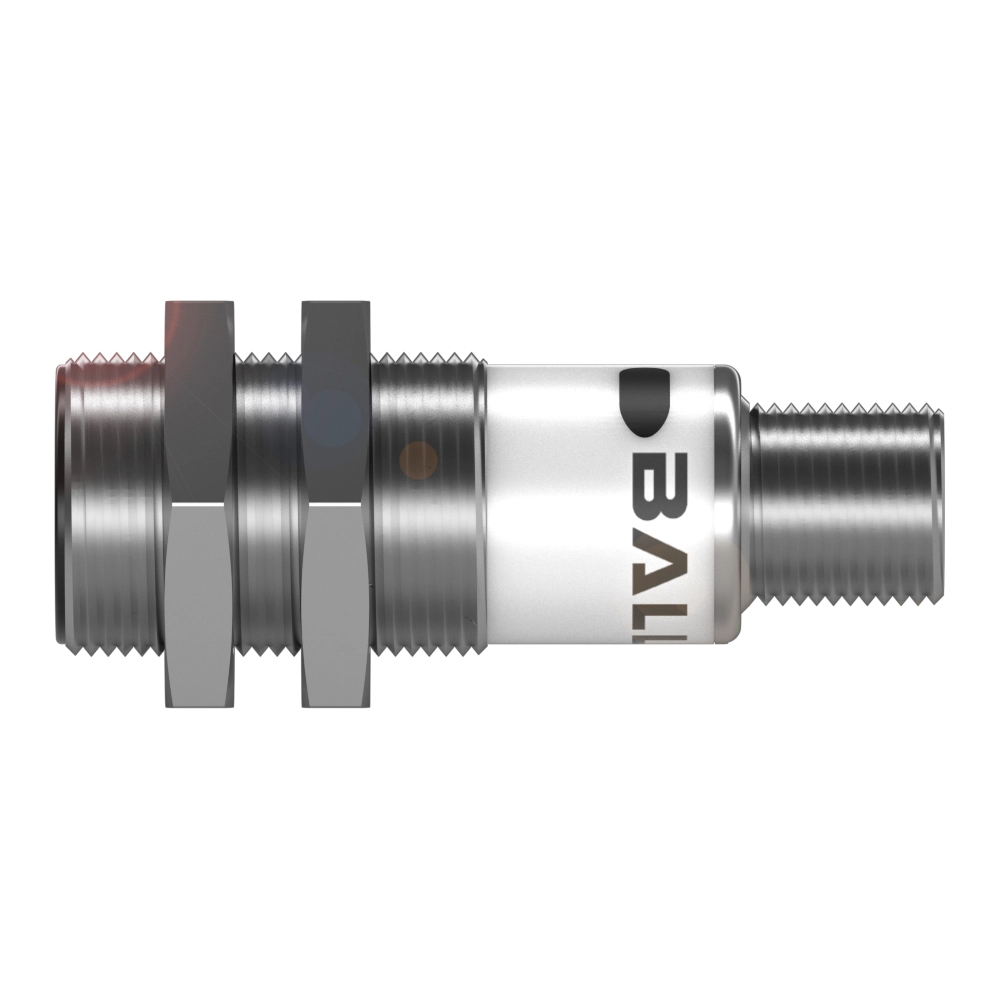

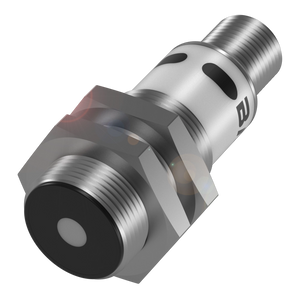

Balluff BUS M18M1-GPXI-02/015-S92G-511 Cylindrical Ultrasonic Sensor
- Regular price
- $587.00
- Sale price
- $587.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BUS M18M1-GPXI-02/015-S92G-511
Description
The Balluff BUS M18M1-GPXI-02/015-S92G-511 is a cylindrical ultrasonic sensor for non-contact object detection over a 25–250 mm range. It combines configurable push-pull switching with IO-Link 1.1 communication for integration into industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Sensors & Switches |
| Part Number | BUS M18M1-GPXI-02/015-S92G-511 |
| Subcategory | Ultrasonic Sensor |
| Order Code | BUS007E |
| Sensing Principle | Ultrasonic |
| Housing Diameter | 18 mm |
| Sensing Range | 25–250 mm |
| Communication Interface | IO-Link 1.1 |
| Switching Output | PNP/NPN, NO/NC, push-pull |
| Electrical Connection | M12 × 1 male connector |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 25 Hz |
| Repeat Accuracy | ±0.15% FS |
| Housing Materials | Nickel-plated brass; PBT |
| Sensing Surface Materials | PU foam; epoxy resin; glass |
| Ambient Temperature | −25 °C to +70 °C |
| Protection Rating | IP67 |
| Approval / Conformity | cULus; CE; WEEE; UKCA |
| Weight | 1.00 lb |
Information About BUS M18M1-GPXI-02/015-S92G-511
The BUS M18M1-GPXI-02/015-S92G-511 is identified by Balluff order code BUS007E. Its 18 mm cylindrical housing uses nickel-plated brass and PBT construction. The switching output supports PNP/NPN and normally open or normally closed configurations to match compatible controller inputs. An M12 × 1 male connector and IP67 enclosure support installation near machinery operating within the specified temperature limits.
Key Features:
- Ultrasonic Detection: Uses sound-based sensing to detect objects without physical contact.
- Defined Sensing Range: Detects targets between 25 mm and 250 mm from the sensing surface.
- IO-Link Interface: Supports IO-Link 1.1 communication with a compatible master.
- Configurable Output: Provides PNP/NPN push-pull switching with normally open or normally closed operation.
- Switching Frequency: Supports a specified switching frequency of 25 Hz.
- Repeat Accuracy: Provides repeat accuracy of ±0.15% of full scale.
- Cylindrical Construction: Uses an 18 mm housing for installation in compatible sensor mounts.
- Environmental Protection: Combines IP67 protection with an ambient operating range of −25 °C to +70 °C.
The BUS M18M1-GPXI-02/015-S92G-511 delivers the reliability and precision required for short-range object detection in automated handling and production equipment.
