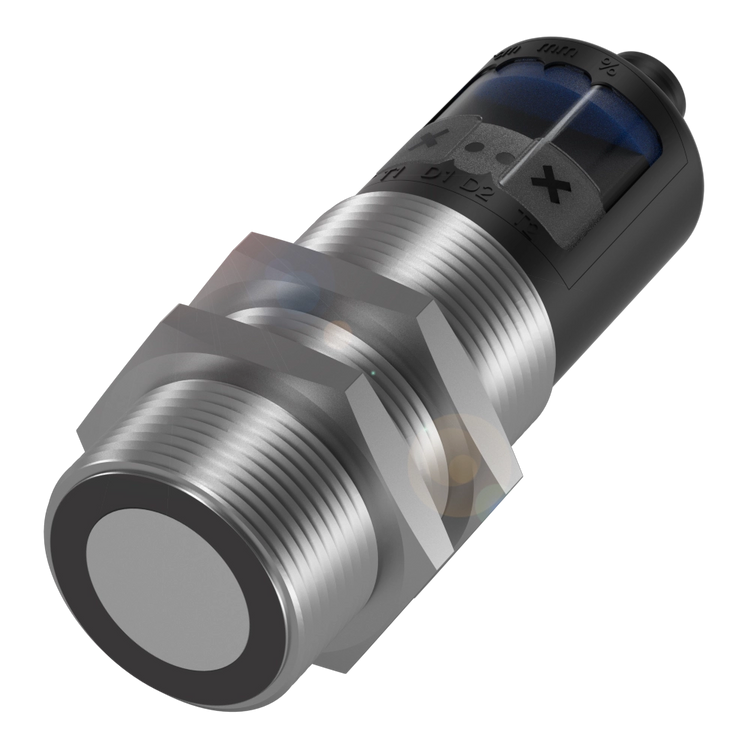

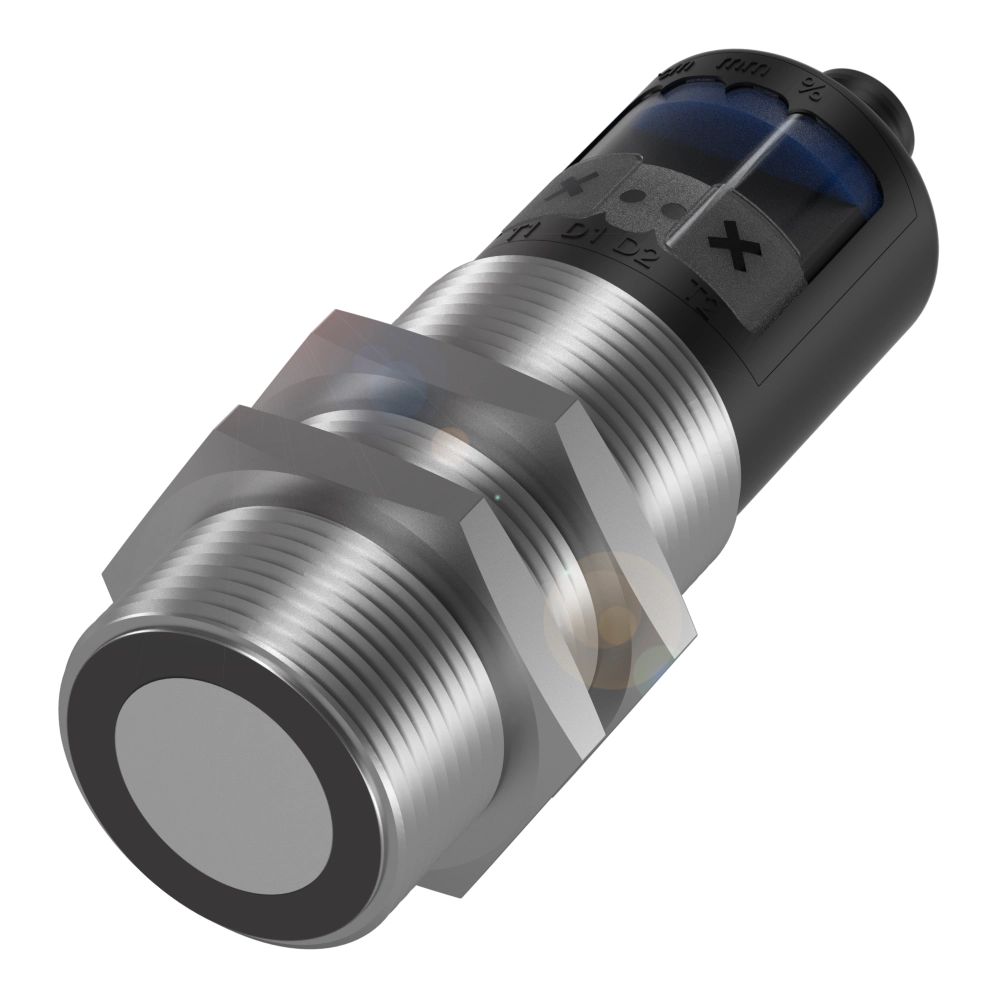

Balluff BUS M30M1-XC-20/130-S92K Ultrasonic Distance Sensor with Analog Output

Description

The Balluff BUS M30M1-XC-20/130-S92K (BUS003F) is an ultrasonic sensor designed for non-contact object detection and distance measurement in industrial automation. It provides an analog voltage or current output, selectable between 0–10 V and 4–20 mA, with a sensing range specified as 200–2000 mm in the supplied data. Its M30 threaded housing, M12 5-pin connector, and IP67 protection support integration into industrial sensing applications.

Technical Specifications

Information About BUS M30M1-XC-20/130-S92K

The BUS M30M1-XC-20/130-S92K belongs to Balluff’s M30M1 series of ultrasonic sensors with an integrated control display and TEACH-in functionality. Ultrasonic sensing allows it to detect objects and measure distance without relying on their color or surface finish. The sensor operates on a 9–30 VDC supply and provides analog output for connection to compatible controllers and monitoring systems. Its nickel-plated brass housing and polymer components are designed for industrial environments with ambient temperatures from -25 to 70 °C.

Key Features:

• Ultrasonic Distance Measurement: Detects objects and measures distance without physical contact.

• Sensing Range: Supplied specifications list a range of 200–2000 mm; another description states 200–1300 mm, so the exact upper limit should be verified.

• Analog Output: Supports selectable 0–10 V voltage or 4–20 mA current signals.

• TEACH-in Function: Enables sensor setup for the intended detection application.

• Integrated Control Display: Provides local access to sensor status and configuration.

• M30 Threaded Housing: Supports threaded installation using the appropriate mounting hardware.

• M12 5-Pin Connector: Provides a standardized electrical connection.

• IP67 Protection: Suitable for industrial environments where protection against dust and temporary water immersion is required.

The BUS M30M1-XC-20/130-S92K delivers the reliability and precision required for non-contact distance measurement, object detection, and industrial process monitoring.
