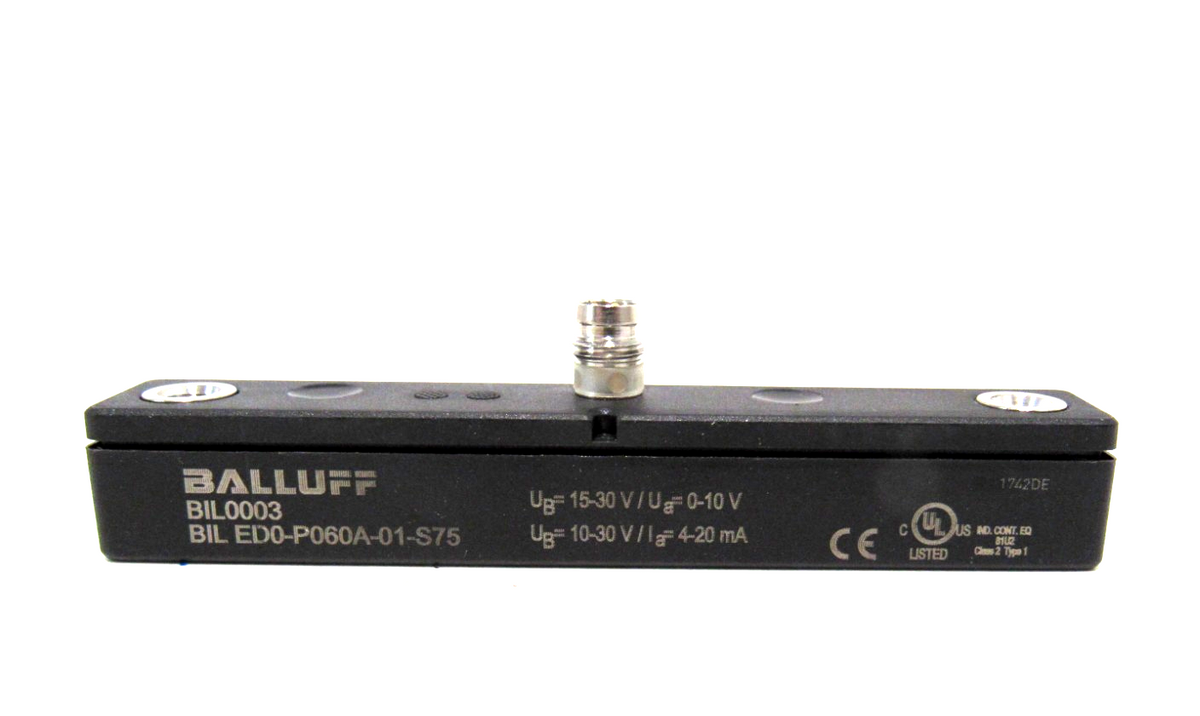

Balluff ED0-P060A-01-S75 Magneto-Inductive Distance Sensor
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ED0-P060A-01-S75
Description
The Balluff ED0-P060A-01-S75 is a magneto-inductive distance sensor designed for precise non-contact position and distance measurement in industrial automation systems. It provides a measuring range of up to 60 mm with analog voltage and current outputs for integration with compatible control equipment.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
ED0-P060A-01-S75 |
|
Subcategory |
Linear Transducer |
|
Sensor Type |
Magneto-inductive distance sensor |
|
Model |
BIL0003 |
|
Measuring Range |
0–60 mm |
|
Output Signals |
0–10 V; 4–20 mA |
|
Maximum Non-Linearity |
±0.6 mm |
|
Repeat Accuracy |
0.5% FS |
|
Connection |
M8 × 1 |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
−10 to 75 °C |
|
Approvals and Conformity |
CE, cULus, EAC |
|
Weight |
0.15 lb |
Information About ED0-P060A-01-S75
The ED0-P060A-01-S75 belongs to Balluff’s BIL series of magneto-inductive distance sensors. It features a maximum non-linearity of ±0.6 mm and repeat accuracy of 0.5% of full scale. The sensor uses an M8 × 1 connection and supports analog output signals of 0–10 V and 4–20 mA, according to the supplied product information. Its IP67 protection rating and operating temperature range of −10 to 75 °C support use in demanding industrial environments.
Key Features:
-
Magneto-Inductive Measurement: Enables non-contact distance and position detection.
-
60 mm Measuring Range: Supports measurements across a range of 0–60 mm.
-
Analog Voltage Output: Provides a 0–10 V signal for compatible control systems.
-
Analog Current Output: Supports a 4–20 mA signal for industrial measurement applications.
-
Measurement Linearity: Maximum non-linearity of ±0.6 mm.
-
Repeat Accuracy: Rated at 0.5% of full scale.
-
M8 × 1 Connection: Provides a compact electrical connection.
-
IP67 Protection: Helps protect the sensor against dust and temporary water immersion when properly installed.
The ED0-P060A-01-S75 delivers the reliability and precision required for non-contact distance measurement and industrial automation applications.
