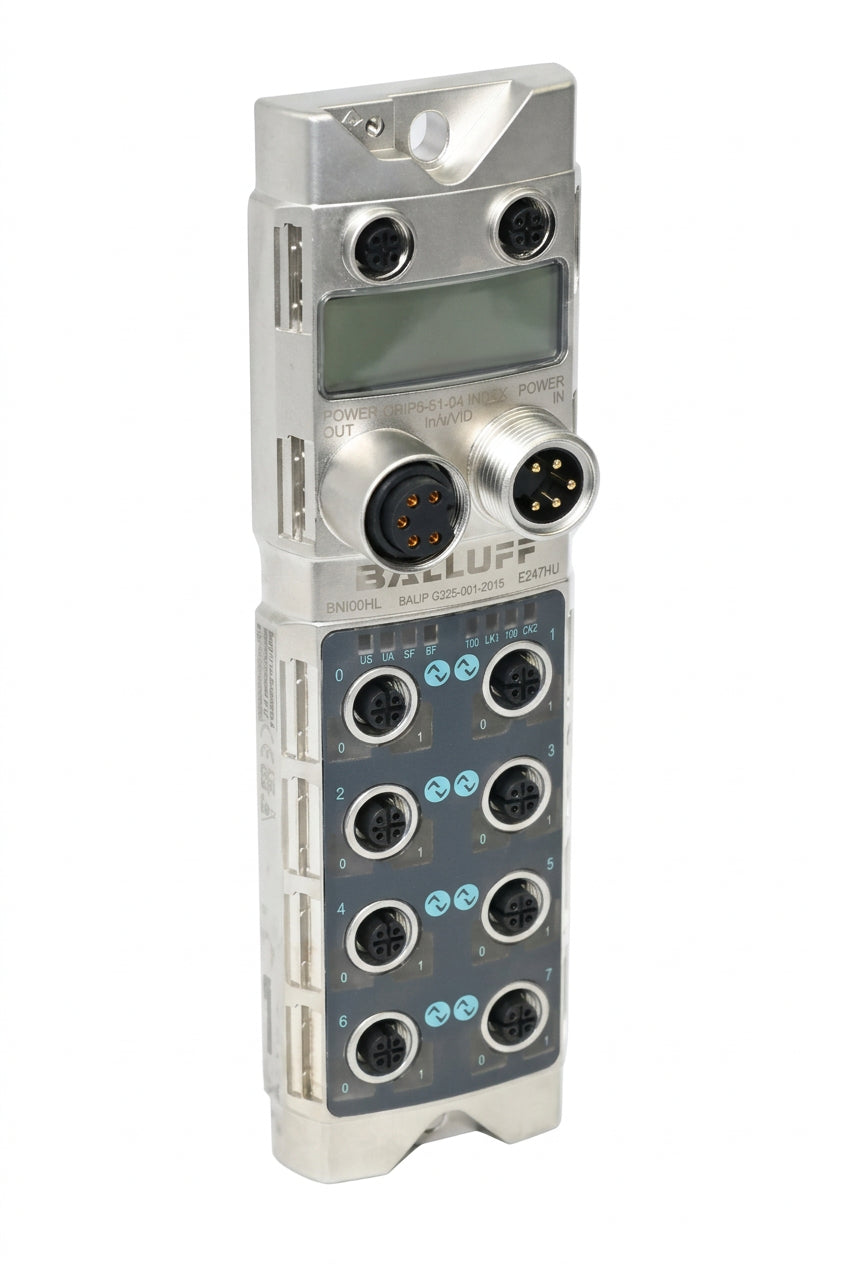

Balluff PG3-508-0C5-Z015 PROFINET IO-Link Network Module
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PG3-508-0C5-Z015
Description
The Balluff PG3-508-0C5-Z015 is a PROFINET network module designed to connect IO-Link devices and digital sensors and actuators to industrial automation systems. It provides eight IO-Link ports, 16 PNP digital inputs, and 16 PNP digital outputs, supporting flexible data exchange and distributed machine control.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
PG3-508-0C5-Z015 |
|
Subcategory |
PROFINET I/O Module |
|
Alternative Part Number |
BNI00HL |
|
Interface |
PROFINET |
|
IO-Link Ports |
8 |
|
IO-Link Version |
1.1.3 |
|
Port Class |
Type A |
|
Operating Voltage |
18–30.2 V DC |
|
Maximum Output Current |
2 A |
|
Digital Inputs |
16 × PNP, Type 3 |
|
Actuator Supply Current Sum |
9.0 A |
|
Communication Connections |
2 × M12 female, 4-pin, D-coded |
|
Power Connections |
7/8-inch male, 5-pin input; 7/8-inch female, 5-pin output |
|
Housing Material |
Nickel-plated die-cast zinc |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
−25 to 70 °C |
|
Dimensions |
68 × 37.9 × 224 mm |
|
IIoT Interfaces |
REST API, MQTT |
|
Weight |
1.74 lb |
Information About PG3-508-0C5-Z015
The PG3-508-0C5-Z015 is a Balluff BNI series network module, also identified by the alternative part number BNI00HL. It uses a PROFINET interface and supports IO-Link version 1.1.3 for communication with compatible devices. The module features two 4-pin D-coded M12 communication connectors, eight 5-pin A-coded M12 IO-Link ports, and 7/8-inch power input and output connectors. Its nickel-plated die-cast zinc housing and IP67 protection rating make it suitable for demanding industrial environments.
Key Features:
-
PROFINET Communication: Connects distributed devices to PROFINET-based industrial control networks.
-
Eight IO-Link Ports: Supports up to eight compatible IO-Link devices through M12 connectors.
-
Digital Inputs: Provides 16 PNP digital inputs for collecting sensor signals.
-
Digital Outputs: Provides 16 PNP digital outputs for controlling compatible actuators.
-
IO-Link Version 1.1.3: Supports communication with compatible IO-Link devices.
-
Fast Start-Up Support: Includes Fast Start-Up functionality for applications requiring rapid network initialization.
-
Industrial Power Connections: Uses 7/8-inch, 5-pin power input and output connectors.
-
Durable Construction: Features nickel-plated die-cast zinc housing and IP67 protection.
The PG3-508-0C5-Z015 delivers the reliability and precision required for PROFINET communication, distributed I/O, and industrial automation applications.
