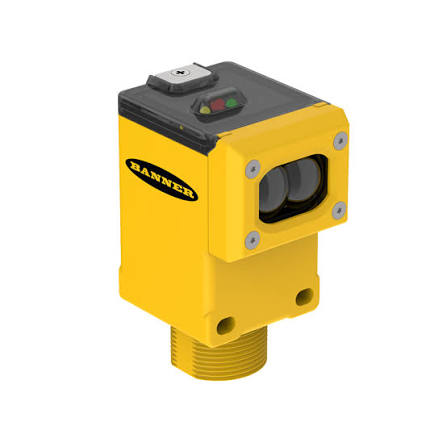

Banner Engineering DX80N2Q45LP Wireless Q45 Retroreflective Photoelectric Sensor
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DX80N2Q45LP
Description
The Banner Engineering DX80N2Q45LP is a Wireless Q45 Series retroreflective photoelectric sensor node designed for wireless object detection and counting in industrial automation systems. It operates in the 2.4 GHz ISM band and detects targets from approximately 0.15 m to 6 m (6 in. to 20 ft.) using a polarized retroreflective sensing mode. The battery-powered sensor communicates wirelessly with compatible Banner DX80 gateways, reducing the need for control and power wiring at the sensing location.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | DX80N2Q45LP |
| Subcategory | Photoelectric Sensors |
| Series | Wireless Q45 / DX80 |
| Sensing Mode | Polarized Retroreflective |
| Sensing Range | 0.15–6 m (6 in.–20 ft.) |
| Wireless Frequency | 2.4 GHz ISM |
| Wireless Power | 65 mW |
| Power Supply | 2 AA Batteries |
| Device Type | Sensor and Wireless Node |
| Input/Output | Discrete |
| Wireless Communication | SureCross DX80 |
| Network Topology | Point-to-Point, Point-to-Multipoint, Star |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -40°C to +70°C |
| Maximum Relative Humidity | 90% at 50°C |
| Housing Style | Integrated Battery |
| Object Counting | Yes |
| EtherNet/IP | No |
| Modbus/TCP | No |
| PROFINET | No |
| Barrel Diameter | 18 mm |
| Weight | Approx. 0.4 lb |
Information About DX80N2Q45LP
The DX80N2Q45LP is a Banner Engineering Wireless Q45 photoelectric sensor node with a 2.4 GHz wireless radio and polarized retroreflective sensing. It uses two AA batteries and incorporates the photoelectric sensor, wireless node, and battery into an integrated housing. The sensor provides a sensing range of approximately 0.15–6 m and supports point-to-point, point-to-multipoint, and star wireless network topologies. Its IP67-rated housing and -40°C to +70°C operating range allow it to be used in demanding industrial environments.
Key Features:
- Wireless Photoelectric Sensor: Combines a Q45 retroreflective photoelectric sensor with a wireless DX80 node.
- 2.4 GHz Communication: Operates in the 2.4 GHz ISM frequency band for wireless industrial communication.
- Retroreflective Sensing: Uses polarized retroreflective detection for reliable object sensing.
- 6 m Range: Detects objects from approximately 0.15 m to 6 m depending on the reflector and application.
- Battery Powered: Operates from two AA batteries without requiring a dedicated power cable.
- Wireless Networking: Supports point-to-point, point-to-multipoint, and star network configurations.
- Rugged Housing: Provides IP67 and NEMA 4X protection for industrial environments.
- Object Counting: Supports photoelectric object detection and counting applications.
The DX80N2Q45LP delivers the reliability and precision required for wireless object detection, parts counting, machine monitoring, and industrial automation applications.
