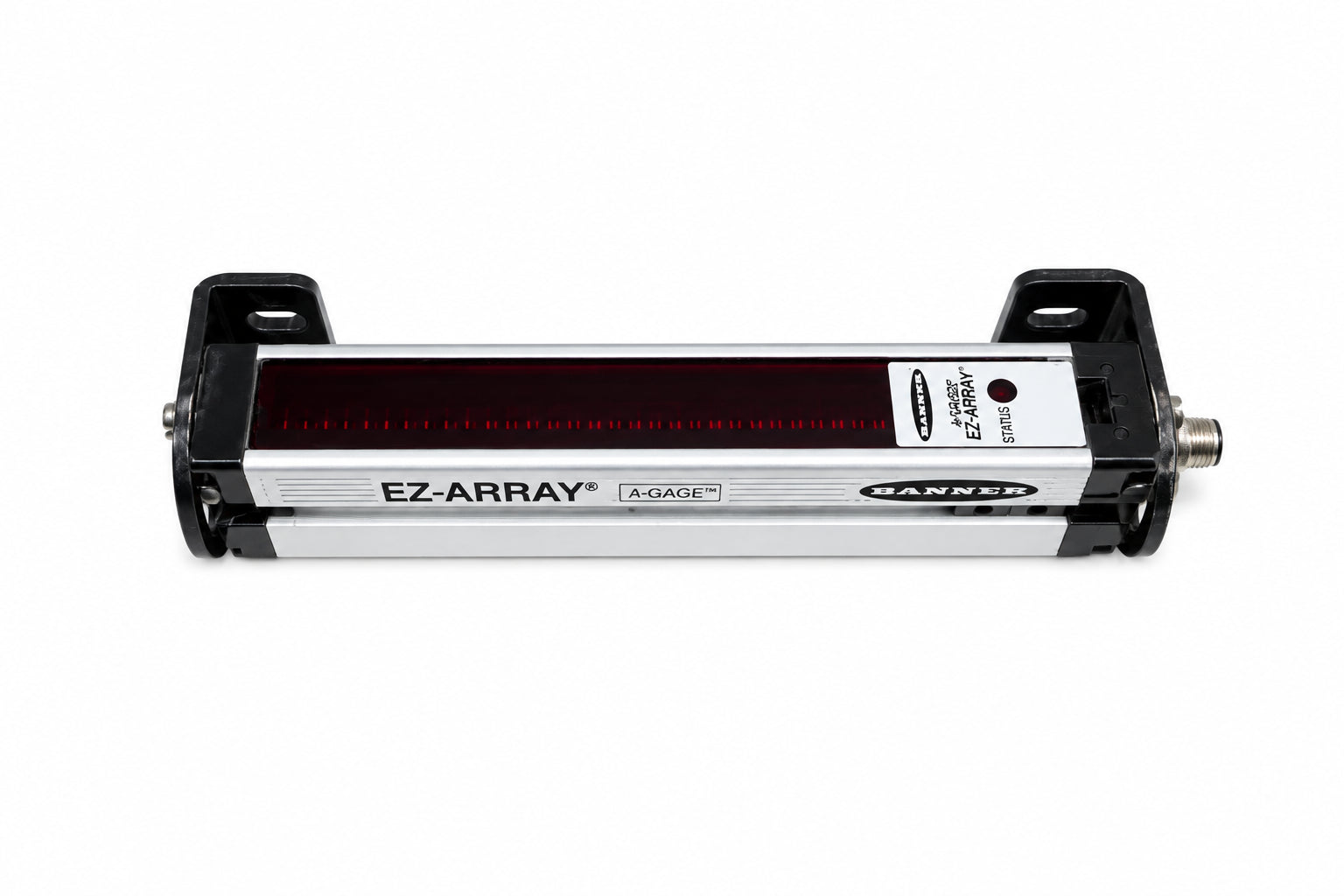

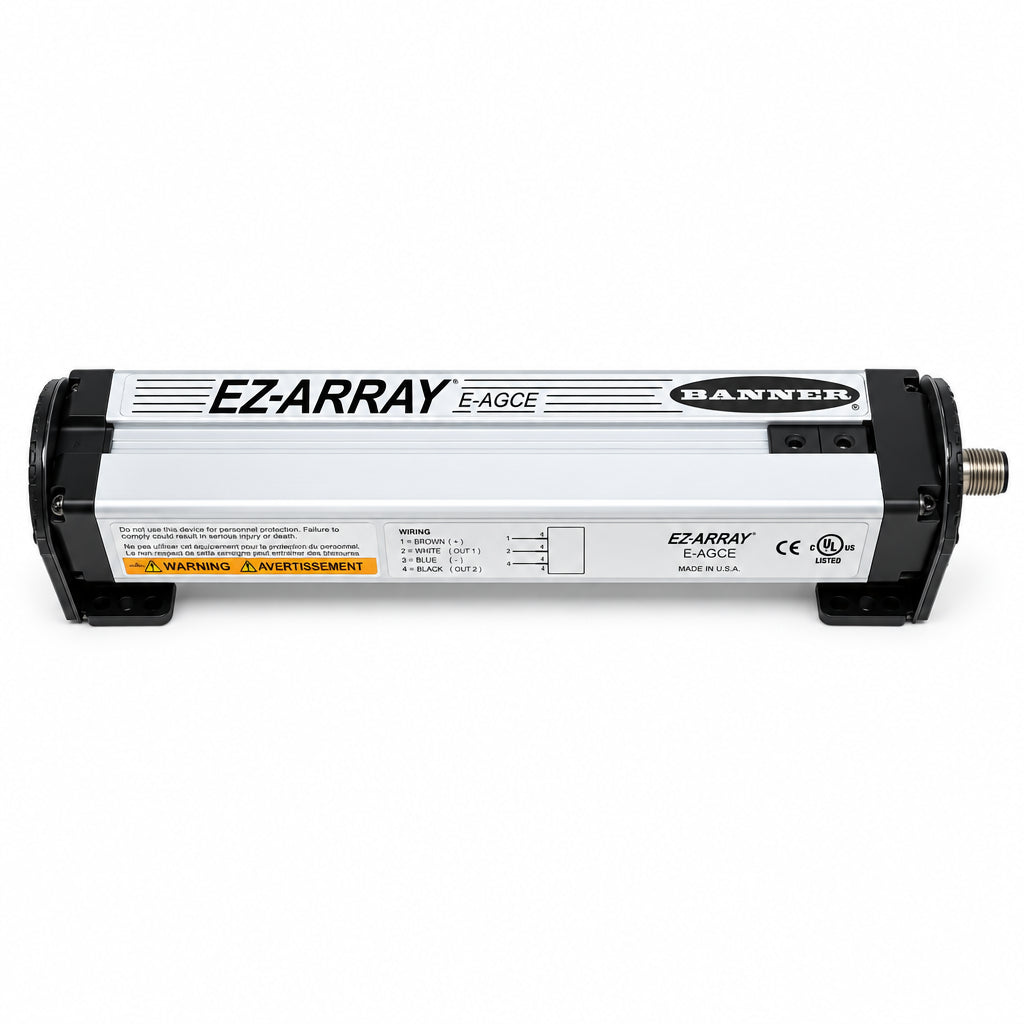

Banner Engineering EA5E150Q EZ-ARRAY 150mm Measuring Light Curtain Emitter
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EA5E150Q
Description
The Banner Engineering EA5E150Q is an EZ-ARRAY Series measuring light curtain emitter designed for non-contact measurement, profiling, sizing, edge detection, and parts-counting applications. It provides a 150 mm array length with 30 infrared beams spaced at 5 mm and an emitter/receiver operating range of 0.4–4 m. The unit operates from 12–30 VDC and uses a rugged aluminum housing for industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | EA5E150Q |
| Subcategory | Measuring Light Curtains |
| Series | EZ-ARRAY |
| Device Type | Emitter |
| Sensing Type | Infrared Measuring Light Curtain |
| Array Length | 150 mm |
| Number of Beams | 30 |
| Beam Spacing | 5 mm |
| Resolution | 5 mm |
| Emitter/Receiver Range | 0.4–4 m |
| Supply Voltage | 12–30 VDC |
| Housing Material | Aluminum |
| Housing Length | 227 mm |
| Operating Temperature | -40°C to +70°C |
| Maximum Relative Humidity | 95% |
| Device Construction | Two-Piece System |
| IO-Link | No |
| Modbus RTU | No |
| Weight | 3.08 lb. |
Information About EA5E150Q
The EA5E150Q is a Banner Engineering EZ-ARRAY Series emitter with a 150 mm sensing array and 30 individual beams. It uses infrared light with 5 mm beam spacing to provide 5 mm resolution for measuring and detection applications. The emitter operates from a 12–30 VDC supply and is designed to work with compatible EZ-ARRAY receivers. Its aluminum housing has a 227 mm overall length and supports operation from -40°C to +70°C.
Key Features:
- Measuring Light Curtain: Provides multi-beam sensing for object measurement, profiling, and detection.
- 150 mm Array Length: Provides a 150 mm active sensing area with 30 beams.
- 5 mm Beam Spacing: Uses closely spaced infrared beams for 5 mm measurement resolution.
- Infrared Light: Uses infrared optical beams for non-contact sensing.
- 0.4–4 m Range: Supports emitter/receiver separation from 0.4 to 4 meters.
- 12–30 VDC Supply: Operates from a standard industrial DC power supply.
- Aluminum Housing: Uses a rugged aluminum enclosure designed for industrial installations.
- Wide Temperature Range: Supports operation from -40°C to +70°C.
The EA5E150Q delivers the reliability and precision required for edge guiding, parts counting, product sizing, profiling, and industrial measurement applications.
