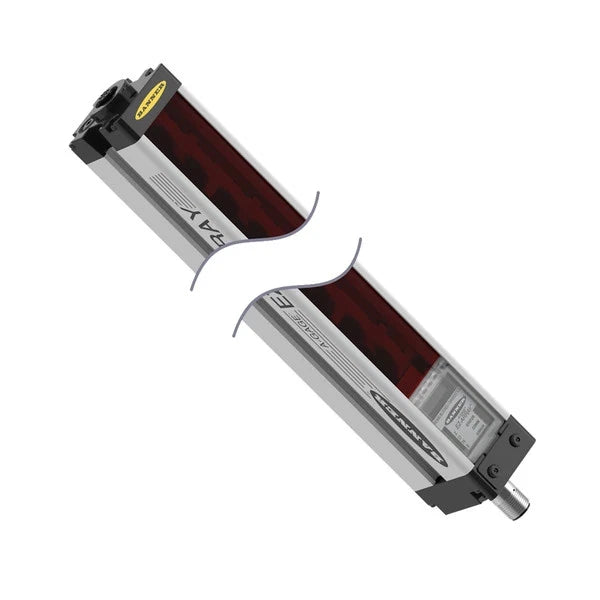

Banner Engineering EA5R300PIXMODQ EZ-ARRAY Measuring Light Curtain Receiver
- Regular price
- $1,885.00
- Sale price
- $1,885.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EA5R300PIXMODQ
Description
Banner Engineering EA5R300PIXMODQ is an EZ-ARRAY measuring light curtain receiver designed for non-contact measurement and object detection in industrial automation systems. It provides a 300 mm sensing field, 5 mm optical resolution, a 0.4–4 m range, and PNP, analog, and Modbus RTU communication outputs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | EA5R300PIXMODQ |
| Subcategory | Measuring Light Curtains |
| Series | EZ-ARRAY |
| Product Type | Measuring Light Curtain Receiver |
| Sensing Field | 300 mm |
| Number of Beams | 60 |
| Optical Resolution | 5 mm |
| Operating Range | 0.4–4 m |
| Supply Voltage | 12–30 V DC |
| Discrete Outputs | 2 × PNP |
| Analog Outputs | 2 × 4–20 mA |
| Communication | Modbus RTU / RS-485 |
| Primary Connection | 8-pin M12 |
| Communication Connection | 5-pin M12 |
| Protection Rating | IP65 |
| Dimensions | 45.2 × 36 × 379 mm |
| Weight | 2.00 lb |
Information About EA5R300PIXMODQ
The EA5R300PIXMODQ belongs to the Banner Engineering EZ-ARRAY series of measuring light curtains and functions as the receiver component of a two-piece system. It uses 60 closely spaced infrared beams across a 300 mm array to detect and measure objects. The receiver includes two PNP switching outputs, two 4–20 mA analog outputs, and RS-485 communication with Modbus RTU. Its anodized aluminum housing and IP65 protection are suited to industrial sensing and measurement applications.
Key Features:
- 300 mm Sensing Field: Provides a 300 mm active measurement area with 60 optical beams.
- 5 mm Resolution: Detects objects with a nominal optical resolution of 5 mm.
- 4 m Range: Provides an emitter-to-receiver operating range of 0.4–4 m.
- PNP Outputs: Includes two solid-state PNP switching outputs.
- Analog Outputs: Provides two 4–20 mA current outputs for measurement data.
- Modbus RTU: Supports Modbus RTU communication through an RS-485 interface.
- M12 Connection: Uses an 8-pin M12 connector for the primary electrical connection.
- IP65 Housing: Uses an anodized aluminum housing with IP65 environmental protection.
The EA5R300PIXMODQ delivers the reliability and precision required for industrial object measurement, detection, and process monitoring.
