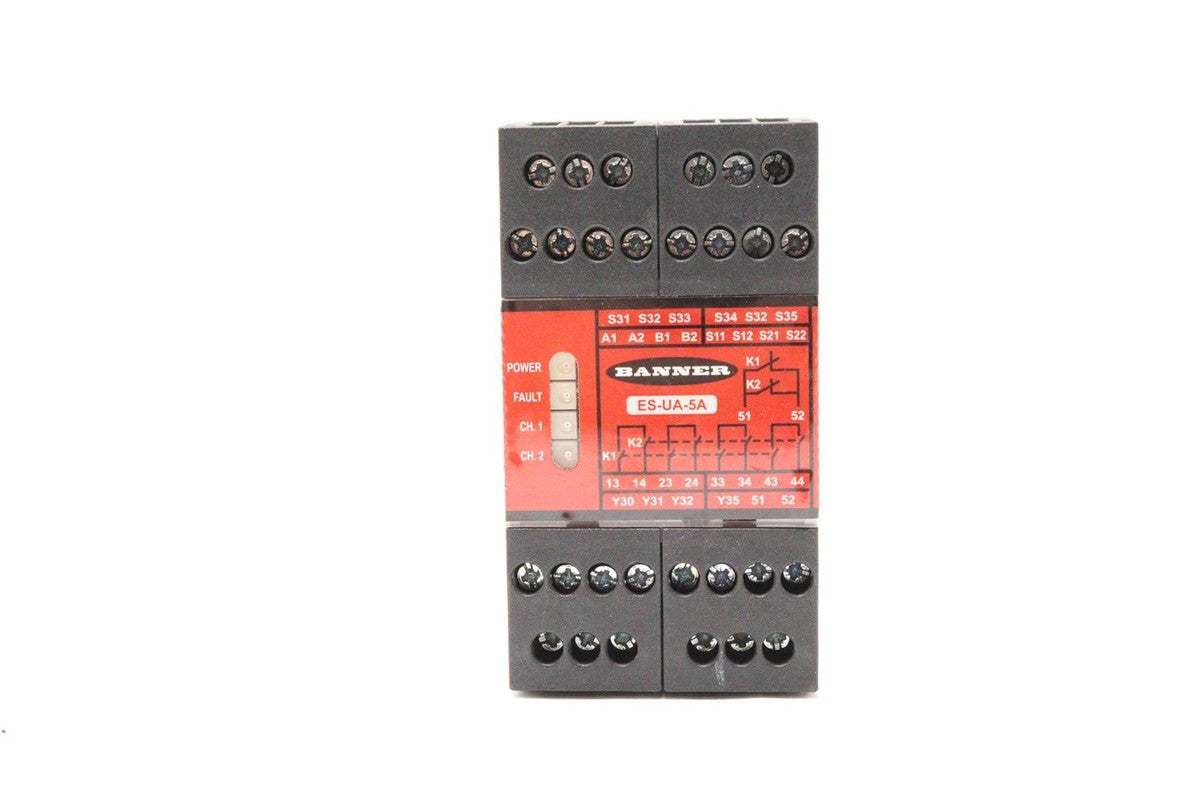

Banner Engineering ES-UA-5A Safety Relay Module for E-Stop and Interlock
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ES-UA-5A
Description
Banner Engineering ES-UA-5A is a safety relay module designed for monitoring emergency-stop, rope-pull, and interlock devices in industrial machinery. It provides four normally open safety outputs rated at 6 A, an auxiliary NC output, and supports 115 VAC or 12–24 VDC supply operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | ES-UA-5A |
| Subcategory | Safety Relays |
| Device Function | E-Stop / Rope Pull / Interlock Monitoring |
| Supply Voltage | 115 VAC / 12–24 VDC |
| Safety Input | 1 Dual/Single Channel |
| Safety Output | 4 NO |
| Safety Output Rating | 6 A |
| Auxiliary Output | 1 NC, 5 A + 2 Solid-State, 0.1 A |
| Dimensions (H × W × D) | 84 × 45 × 118 mm |
| Response Time | 25 ms typical |
| Recovery Time | 350 ms |
| Power Consumption | 4 W / 7 VA |
| Operating Temperature | 0°C to 50°C |
| Weight | 0.48 kg |
Information About ES-UA-5A
The ES-UA-5A belongs to Banner Engineering’s ES Series of E-Stop safety relay modules and is designed for DIN-rail mounting. It accepts single- or dual-channel safety inputs and uses self-checking circuitry to monitor connected safety devices for faults. The module supports automatic or manual reset and uses removable screw terminals for wiring. Its safety architecture is rated Category 4, PL e, and SIL 3 for applicable machine-safety systems.
Key Features:
- Safety Relay Module: Monitors emergency-stop, rope-pull, and interlock safety devices.
- Dual/Single Channel Input: Supports one safety input configured for dual- or single-channel operation.
- Safety Outputs: Provides four normally open relay outputs rated at 6 A.
- Auxiliary Output: Includes one normally closed 5 A relay output plus two 0.1 A solid-state outputs.
- Supply Voltage: Supports 115 VAC or 12–24 VDC operation.
- Reset Function: Provides automatic or manual reset configuration.
- Self-Checking Circuitry: Monitors safety-device contacts and wiring for fault conditions.
- DIN-Rail Mounting: Uses a compact 45 mm-wide housing with removable screw terminals.
The ES-UA-5A delivers the reliability and precision required for emergency-stop monitoring, interlock protection, and machine safety control applications.
