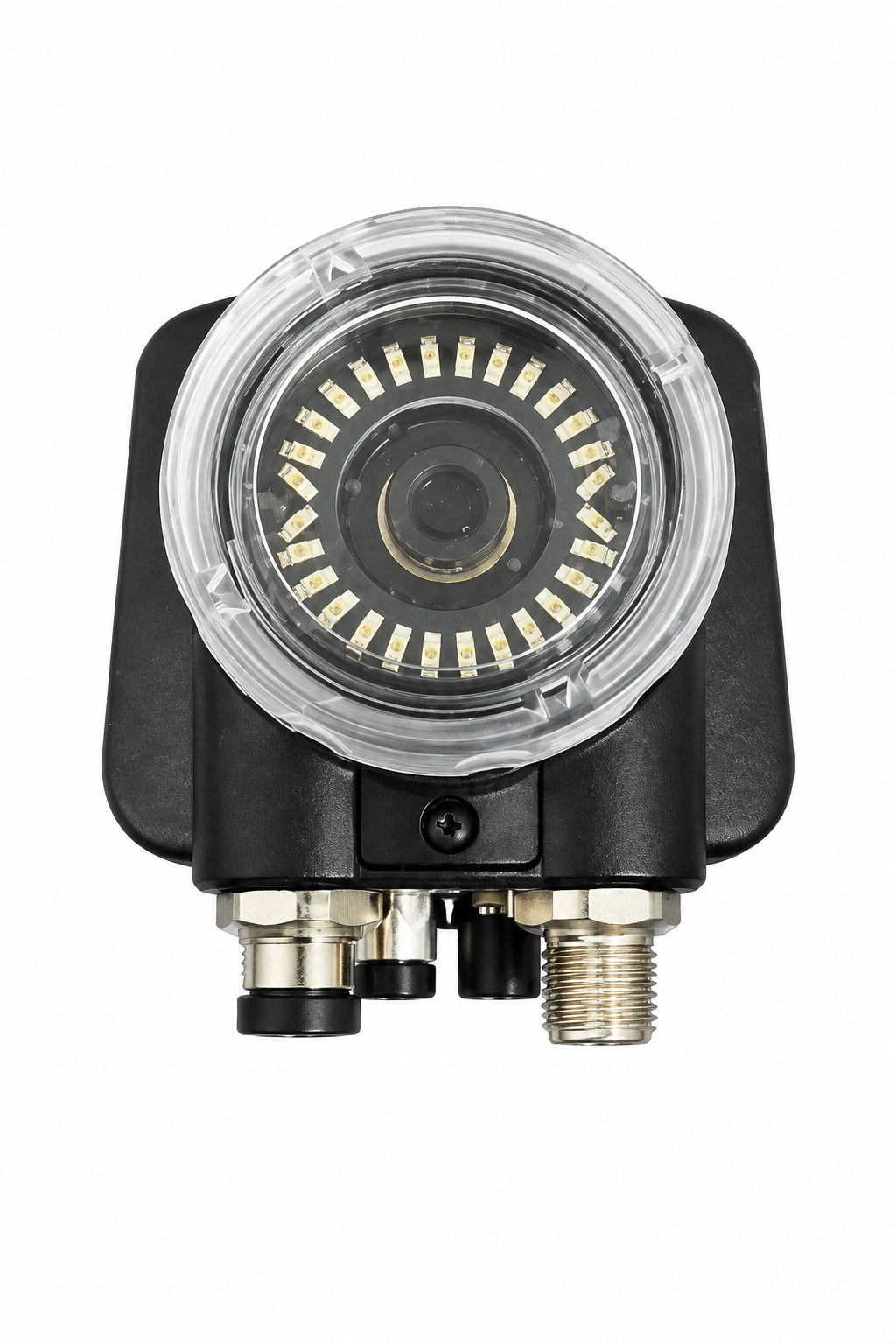

Banner Engineering IVU2PRGR12 iVu PLUS TG Gen2 Vision Sensor with Ethernet
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IVU2PRGR12
Description
The Banner Engineering IVU2PRGR12 is an iVu PLUS TG Gen2 remote vision sensor with Ethernet, designed for automated inspection, measurement, and machine-vision applications. It features a 12 mm lens, integrated red ring light, 752 × 480 pixel grayscale imaging, and a remote touchscreen interface. The sensor provides IP67 protection and supports industrial communication protocols including EtherNet/IP, Modbus/TCP, PCCC, and PROFINET.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Machine Vision |
| Part Number | IVU2PRGR12 |
| Subcategory | Vision Sensors |
| Series | iVu PLUS TG Gen2 |
| Device Type | Remote Vision Sensor |
| Imager Type | Grayscale CMOS |
| Image Resolution | 752 × 480 pixels |
| Lens | 12 mm |
| Light Color | Red |
| Lighting | Integrated Red Ring Light |
| Supply Voltage | 10–30 VDC |
| Housing Material | Thermoplastic |
| Housing Dimensions | 79 × 81 × 52 mm |
| Autofocus | No |
| Interface | Ethernet |
| Touchscreen Interface | Remote |
| PCCC | Yes |
| PROFINET | Yes |
| IP Rating | IP67 |
| Washdown Rated | Yes |
| PC Interface | Yes |
| USB | No |
| Weight | 1.00 lb |
Information About IVU2PRGR12
The IVU2PRGR12 is a Banner Engineering iVu PLUS TG Gen2 vision sensor with an integrated red ring light and 12 mm lens. It uses a 0.4 MP grayscale CMOS imager with a 752 × 480 pixel resolution for automated visual inspection. The unit includes Ethernet connectivity and supports EtherNet/IP, Modbus/TCP, PCCC, PROFINET, and RS-232 communications. Its thermoplastic housing measures 79 × 81 × 52 mm and provides IP67 protection for industrial environments.
Key Features:
- Vision Inspection: Provides automated image-based inspection for industrial machine-vision applications.
- 12 mm Lens: Includes an integrated 12 mm micro-video lens for image acquisition.
- Red Ring Light: Provides integrated red illumination to improve inspection image consistency.
- 752 × 480 Resolution: Uses a 0.4 MP grayscale imaging sensor for detailed inspection.
- Ethernet Connectivity: Provides Ethernet communication for integration with industrial systems.
- Multiple Protocols: Supports EtherNet/IP, Modbus/TCP, PCCC, PROFINET, and RS-232.
- Remote Touchscreen: Supports configuration and operation through a remote touchscreen interface.
- IP67 Protection: Provides dust-tight and water-resistant protection for industrial installations.
The IVU2PRGR12 delivers the reliability and precision required for automated inspection, quality control, presence detection, and industrial machine-vision applications.
