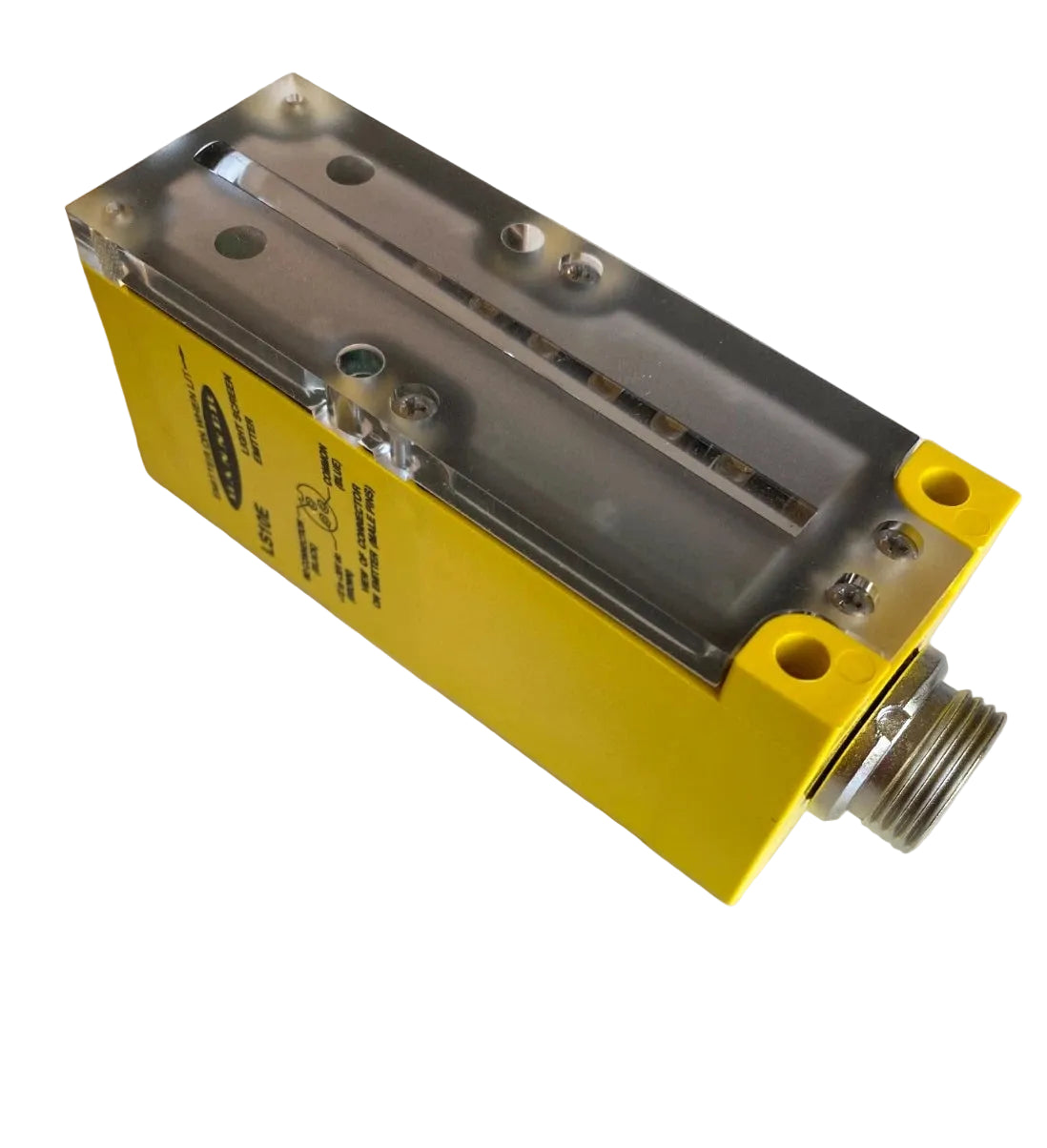

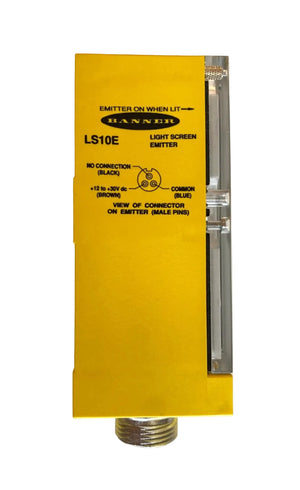

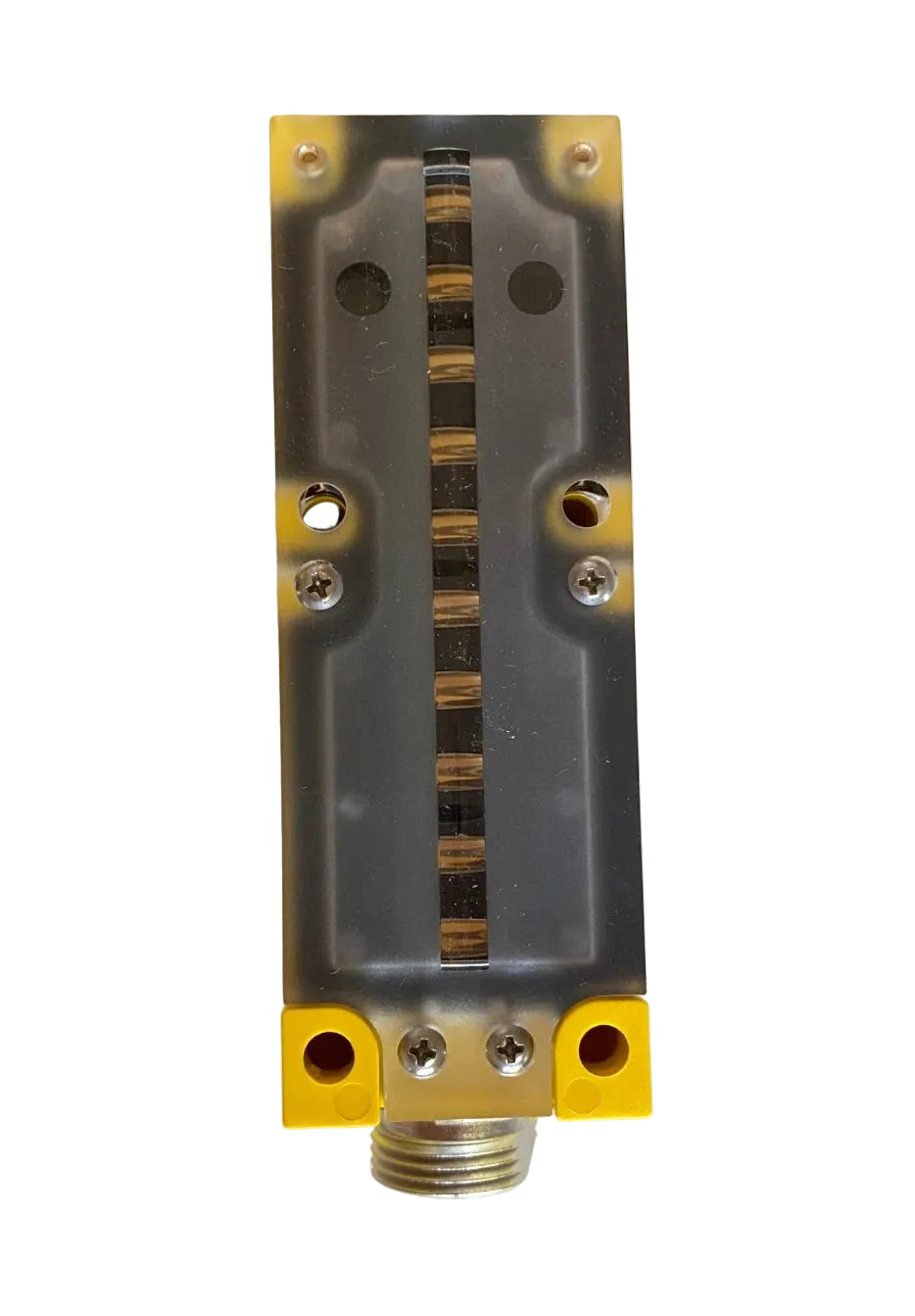

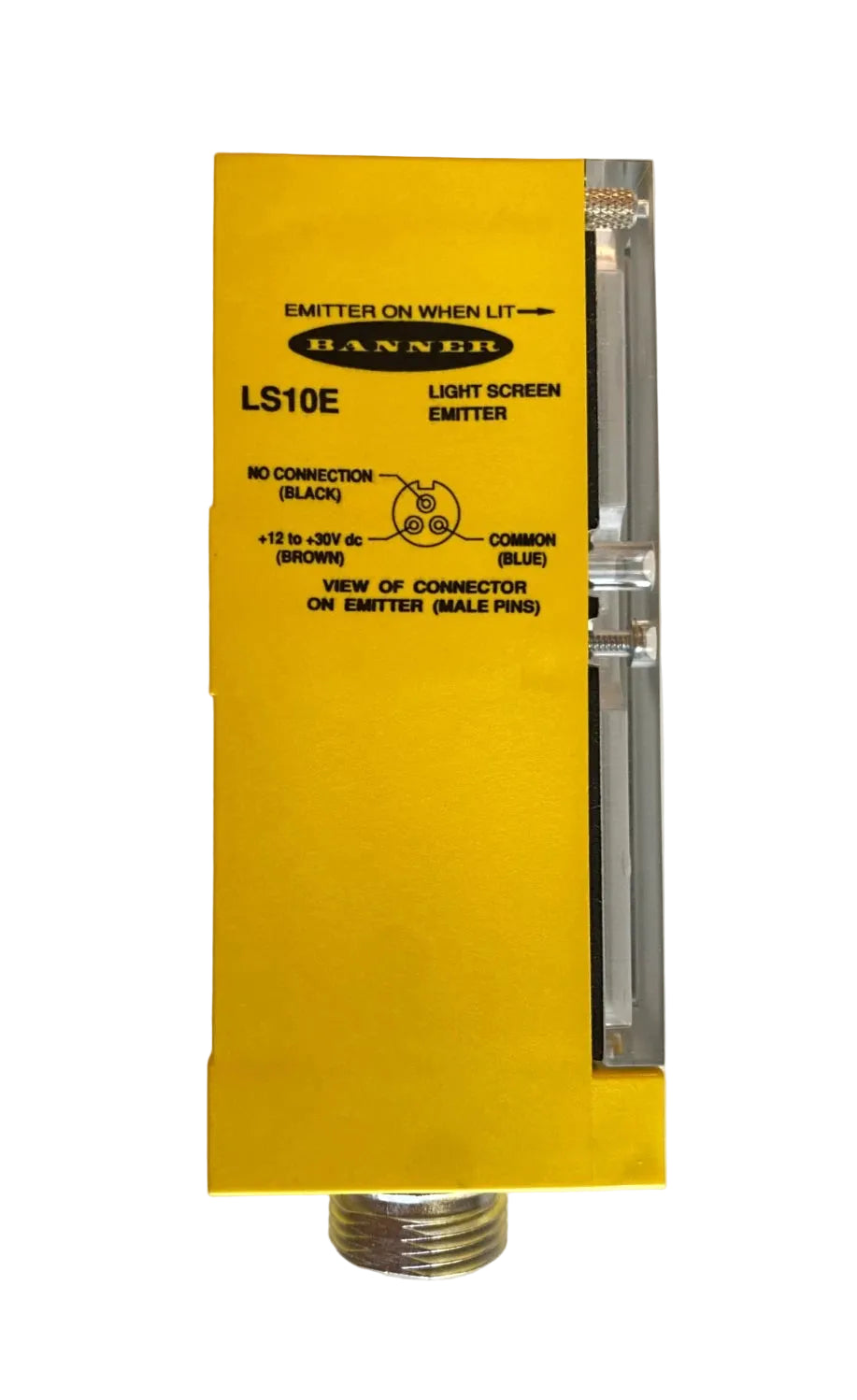

Banner Engineering LS10E Light Screen Emitter for Through-Beam Detection
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LS10E
Description
Banner Engineering LS10E is a photoelectric light screen emitter designed for through-beam detection across a sensing range of 100–1220 mm. It operates from a 12–30 VDC supply and uses an infrared light source with a 3-pin Mini-style quick-disconnect connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | LS10E |
| Subcategory | Light Screen Emitters |
| Product Type | Photoelectric Light Screen Emitter |
| Sensing Range | 100–1220 mm (4–48 in) |
| Supply Voltage | 12–30 VDC |
| Light Source | Infrared, 880 nm |
| Connection Type | 3-Pin Mini-style QD |
| Housing Material | Reinforced Thermoplastic Polyester |
| Lens Material | Acrylic |
| Operating Temperature | 0°C to 50°C |
| Part Status | Obsolete / Inactive |
| Weight | 0.55 lb |
Information About LS10E
The LS10E is part of Banner Engineering’s LS10 Series of opposed-mode light screen components. Its emitter produces a modulated infrared beam array intended to operate with a compatible LS10 receiver for detecting objects passing through the sensing field. The unit uses a reinforced thermoplastic polyester housing, acrylic lens material, and an integral Mini-style QD connection for industrial installation. The LS10E is specified for 0–50°C operation and carries an IP54/NEMA-rated environmental protection classification.
Key Features:
- Sensing Range: 100–1220 mm operating range for opposed-mode light screen applications.
- Light Source: 880 nm infrared emission for photoelectric object detection.
- Supply Voltage: 12–30 VDC input suitable for common industrial control systems.
- Connection: 3-pin Mini-style quick-disconnect connector.
- Emitter Type: Dedicated LS10 Series light screen emitter for use with a compatible receiver.
- Construction: Reinforced thermoplastic polyester housing with acrylic lens.
- Environmental Rating: IP54 with NEMA 1, 2, 3, 12, and 13 classifications.
- Operating Temperature: Rated for ambient temperatures from 0°C to 50°C.
The LS10E delivers the reliability and precision required for industrial light screen sensing and automated object detection applications.
