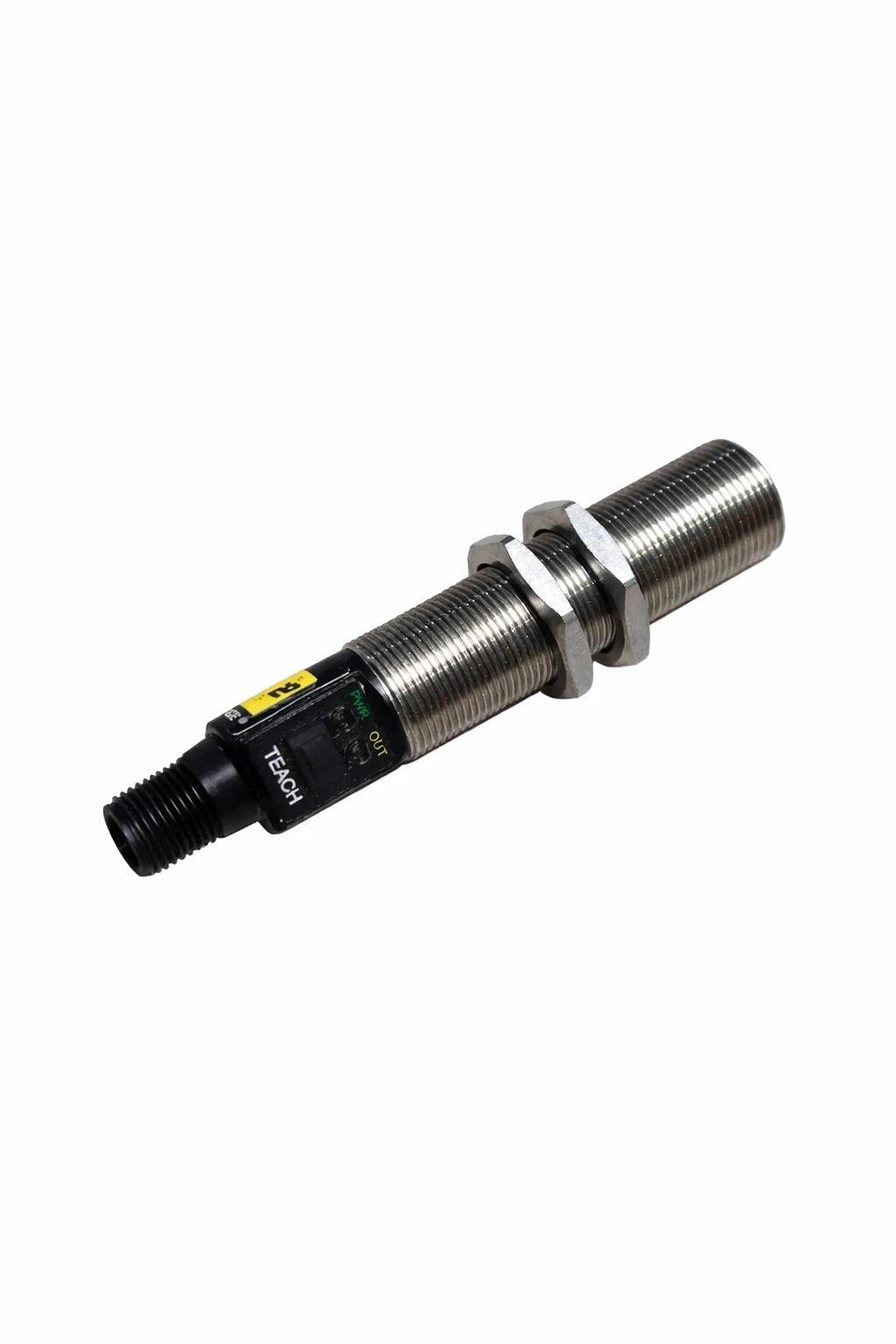

Banner Engineering M18TIP14Q M18T Non-Contact Infrared Temperature Sensor
- Regular price
- $665.00
- Sale price
- $665.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M18TIP14Q
Description
The Banner Engineering M18TIP14Q is an M18T Series non-contact infrared temperature sensor designed for measuring the temperature of objects without physical contact. It uses a 14:1 field of view with a germanium lens and provides a proportional 4–20 mA analog output plus a PNP alarm output. The sensor operates from 12–30 VDC and uses a 5-pin M12 integral quick-disconnect connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | M18TIP14Q |
| Subcategory | Temperature Sensors |
| Series | M18T / T-GAGE |
| Sensor Type | Non-Contact Infrared Temperature Sensor |
| Temperature Range | -20°C to 300°C |
| Field of View | 14:1 |
| Lens | Germanium |
| Analog Output | 4–20 mA |
| Alarm Output | PNP |
| Supply Voltage | 12–30 VDC |
| Connection | 5-Pin M12 Integral Quick Disconnect |
| Housing | Stainless Steel Barrel |
| Barrel Thread | M18 |
| Minimum Response Time | 25 ms |
| Operating Temperature | -20°C to +70°C |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Adjustments | Push Button; Remote Teach |
| Weight | 0.21 lb |
Information About M18TIP14Q
The M18TIP14Q is a Banner Engineering T-GAGE M18T Series infrared temperature sensor with a 14:1 distance-to-spot ratio. Its germanium lens allows non-contact temperature measurement over a sensing range of approximately -20°C to 300°C. The sensor provides a 4–20 mA analog output and a PNP alarm output for integration with industrial control systems. Its stainless-steel barrel housing, IP67 protection, and M12 quick-disconnect connection support installation in demanding industrial environments.
Key Features:
- Non-Contact Temperature Measurement: Measures object temperature without requiring physical contact.
- 14:1 Field of View: Provides a 14:1 distance-to-spot ratio for temperature measurement from a distance.
- Germanium Lens: Uses a germanium sensing lens designed for infrared temperature detection.
- 4–20 mA Output: Provides a proportional analog current output for industrial control and monitoring systems.
- PNP Alarm Output: Includes a discrete PNP alarm output for temperature-related signaling.
- Wide Supply Range: Operates from 12–30 VDC for compatibility with common industrial power supplies.
- M12 Quick Disconnect: Features a 5-pin integral M12 connection for convenient system integration.
- Industrial Construction: Stainless-steel barrel housing with IP67 and NEMA 4X protection.
The M18TIP14Q delivers the reliability and precision required for non-contact temperature monitoring and industrial process-control applications.
