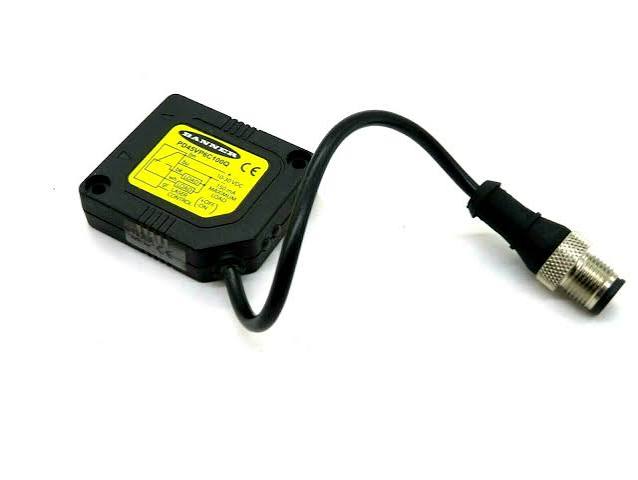

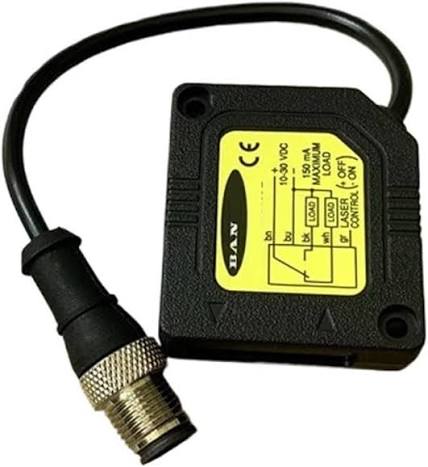

Banner Engineering PD45VP6C100Q PicoDot Convergent Laser Photoelectric Sensor
- Regular price
- $712.00
- Sale price
- $712.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PD45VP6C100Q
Description
The Banner Engineering PD45VP6C100Q is a PicoDot PD Series convergent laser photoelectric sensor designed for precise object detection at a fixed focal point. It uses a visible red laser beam with a 102 mm focal distance and complementary PNP outputs, making it suitable for industrial automation and close-range sensing applications. The sensor operates from a 10–30 V DC supply and uses a 5-pin M12 quick-disconnect pigtail connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | PD45VP6C100Q |
| Subcategory | Photoelectric Sensors |
| Series | PicoDot PD45 |
| Sensing Mode | Convergent |
| Focal Point | 102 mm (4 in.) |
| Sensing Beam | Visible Red Laser |
| Laser Wavelength | 650 nm |
| Laser Classification | Class 2 |
| Output Type | Complementary PNP |
| Supply Voltage | 10–30 V DC |
| Connection | 5-pin M12 Pigtail Quick Disconnect |
| Pigtail Length | 150 mm (6 in.) |
| Response Time | 0.2 ms |
| Housing Material | Thermoplastic |
| Housing Style | Rectangular |
| IP Rating | IP54 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -10°C to +45°C |
| Weight | 0.116 lb |
Information About PD45VP6C100Q
The PD45VP6C100Q is a Banner Engineering PicoDot PD45 Series convergent laser sensor with a 102 mm focal point. It uses a visible red 650 nm laser and complementary PNP outputs for reliable detection of objects within its convergent sensing area. The model features a 150 mm (6 inch) 5-pin M12 pigtail quick-disconnect connection and operates from a 10–30 V DC power supply. Its compact rectangular thermoplastic housing is designed for industrial photoelectric sensing applications and provides a 0.2 ms output response time.
Key Features:
- Convergent Laser Sensing: Provides focused object detection at a 102 mm focal point.
- Visible Red Laser: Uses a 650 nm visible red laser beam for precise sensing and alignment.
- Complementary PNP Outputs: Provides PNP output configuration for industrial control applications.
- 10–30 V DC Supply: Supports a standard DC operating voltage range for automation systems.
- M12 Quick Disconnect: Includes a 150 mm (6 inch) 5-pin M12 pigtail QD connection.
- Fast Response: Provides a 0.2 ms output response time for rapid detection.
- Compact Housing: Uses a rectangular thermoplastic housing suitable for space-conscious installations.
- Class 2 Laser: Uses a Class 2 visible laser sensing beam for focused detection.
The PD45VP6C100Q delivers the reliability and precision required for industrial automation, object detection, and close-range sensing applications.
