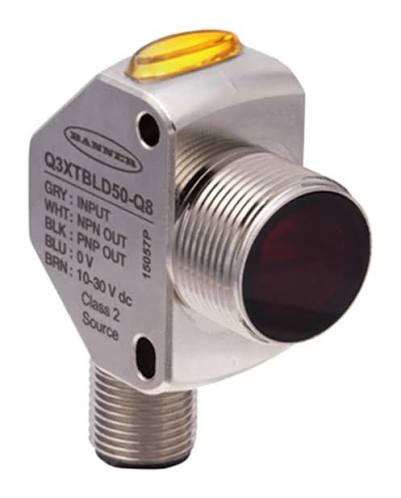

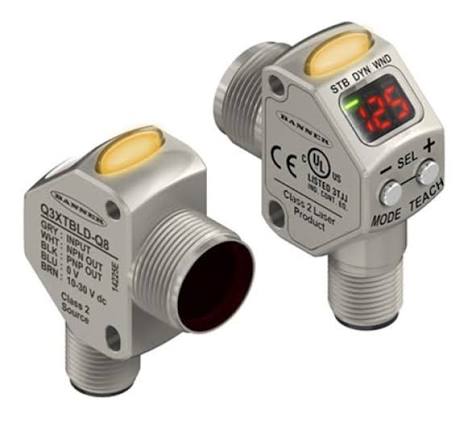

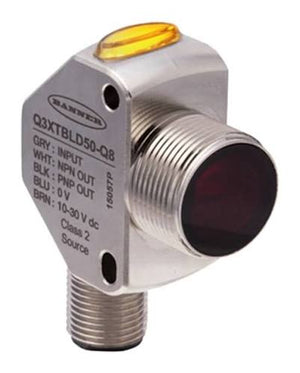

Banner Engineering Q3XTBLD-Q8 300mm Laser Contrast Photoelectric Sensor
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q3XTBLD-Q8
Description
The Banner Engineering Q3XTBLD-Q8 is a Q3X Series laser contrast sensor designed for high-speed detection of differences in color and contrast in industrial automation applications. It uses a visible red 655 nm Class 2 laser with a sensing range of 0 to 300 mm and provides bipolar NPN/PNP outputs. The sensor operates on 10–30 VDC and features a 5-pin M12 integral quick-disconnect connection with IP67, IP68, and IP69K protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | Q3XTBLD-Q8 |
| Subcategory | Photoelectric Sensors |
| Series | Q3X |
| Sensing Method | Diffuse / Contrast |
| Sensing Mode | Proximity |
| Sensing Range | 0–300 mm |
| Sensing Beam | Visible Red Laser |
| Wavelength | 655 nm |
| Laser Classification | Class 2 |
| Output Configuration | Bipolar: 1 NPN / 1 PNP |
| Supply Voltage | 10–30 VDC |
| Connection | 5-pin M12 Integral Quick Disconnect |
| Response Time | 0.25 ms |
| Repeatability | 60 µs |
| Housing Material | Nickel-Plated Zinc Die-Cast |
| Housing Style | Rectangular with M18 Mount |
| Lens Material | Acrylic |
| IP Rating | IP67, IP68, IP69K |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -10°C to +50°C |
| Remote Teach | Yes |
| Adjustment | Teach Button |
| Washdown Rated | Yes |
| Barrel Diameter | 18 mm |
| Weight | Approx. 0.24 lb |
Information About Q3XTBLD-Q8
The Q3XTBLD-Q8 is a Banner Engineering Q3X Series laser diffuse contrast sensor with a maximum sensing distance of 300 mm. It uses a visible red 655 nm laser and provides both NPN and PNP outputs for flexible connection to industrial control systems. The sensor includes teach-button adjustment and remote teach capability, with a 0.25 ms output response time and 60 µs repeatability. Its nickel-plated housing, acrylic lens, M18 mounting configuration, and IP69K protection make it suitable for demanding industrial and washdown environments.
Key Features:
- Laser Contrast Sensing: Detects differences in contrast and color using a focused visible red laser beam.
- 300 mm Sensing Range: Provides a 0–300 mm contrast sensing range for industrial detection applications.
- Bipolar Outputs: Includes one NPN and one PNP output for flexible control-system integration.
- 655 nm Red Laser: Uses a visible red Class 2 laser with a 655 nm wavelength.
- Fast Response: Provides a 0.25 ms output response time for high-speed detection.
- M12 Connection: Features an integral 5-pin M12 Euro-style quick-disconnect connection.
- Rugged Protection: Provides IP67, IP68, and IP69K protection for demanding environments.
- Remote Teach: Supports remote configuration in addition to teach-button adjustments.
The Q3XTBLD-Q8 delivers the reliability and precision required for industrial automation, contrast detection, product inspection, and high-speed sensing applications.
