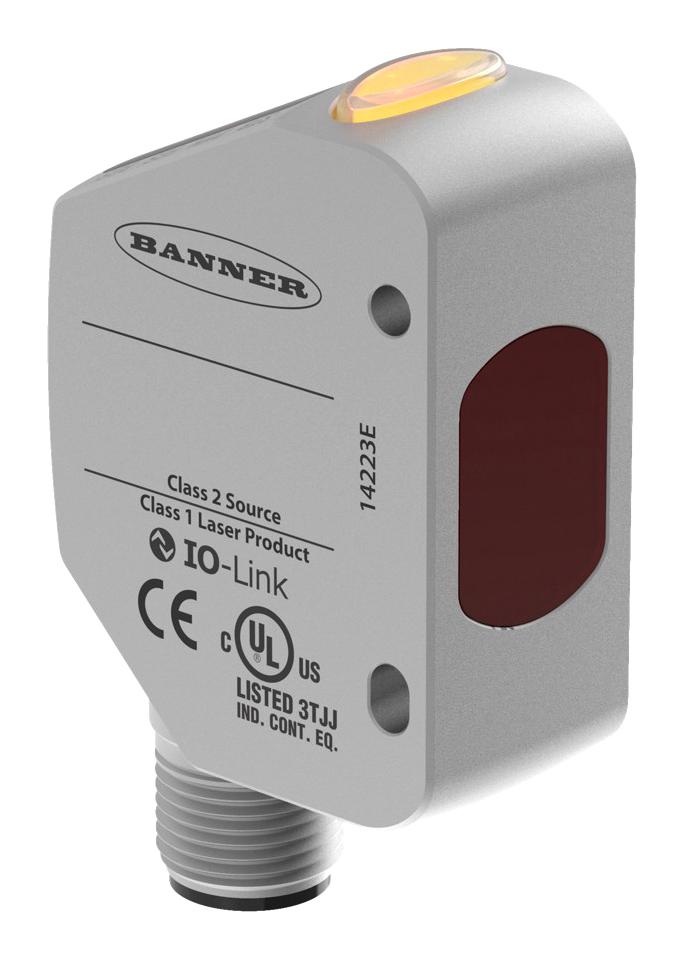

Banner Engineering Q4XFKLAF610-Q8 610mm Rugged Laser Distance Sensor
- Regular price
- $519.00
- Sale price
- $519.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q4XFKLAF610-Q8
Description
The Banner Engineering Q4XFKLAF610-Q8 is a Q4X Series rugged laser distance sensor designed for accurate non-contact measurement and object detection in industrial automation applications. It uses a visible red Class 1 laser with a sensing range of 35 to 610 mm and provides configurable PNP/NPN output with IO-Link communication. The stainless-steel housing and IP67, IP68, and IP69K protection make it suitable for demanding washdown and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | Q4XFKLAF610-Q8 |
| Subcategory | Laser Distance Sensors |
| Series | Q4X |
| Sensing Mode | Proximity / Background & Foreground Suppression |
| Sensing Range | 35–610 mm |
| Sensing Beam | Visible Red Laser |
| Laser Classification | Class 1 |
| Supply Voltage | 10–30 V DC |
| Output 1 | PNP/NPN Configurable with IO-Link |
| Output 2 | PNP |
| Communication | IO-Link |
| Connection | 4-pin M12 Integral Quick Disconnect |
| Housing Material | Stainless Steel |
| Housing Style | Rectangular / Flush Mount |
| Adjustments | Push Button and Remote Teach |
| Minimum Response Time | 2 ms |
| IP Rating | IP67, IP68, IP69K |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -10°C to +50°C |
| Maximum Ambient Light | 5,000 lux |
| Clear Object Detection | Yes |
| Washdown Rated | Yes |
| Chemical Resistant | Yes |
| Ecolab Certified | Yes |
| Weight | 0.35 lb |
Information About Q4XFKLAF610-Q8
The Q4XFKLAF610-Q8 is a Banner Engineering Q4X Series laser adjustable-field sensor with a maximum sensing distance of 610 mm. It operates from a 10–30 V DC supply and provides one configurable PNP/NPN output with IO-Link communication plus one PNP output. The sensor features a visible red Class 1 laser, push-button and remote-teach adjustments, and background/foreground suppression. Its stainless-steel flush-mount housing provides IP67, IP68, and IP69K protection and is designed for washdown and chemical-resistant industrial applications.
Key Features:
- Laser Adjustable Field: Provides adjustable laser-based sensing across a 35–610 mm detection range.
- Visible Red Laser: Uses a visible red Class 1 laser beam for precise object detection.
- Dual Outputs: Provides one configurable PNP/NPN output and one PNP output.
- IO-Link Communication: Supports IO-Link for sensor configuration, monitoring, and diagnostic communication.
- Stainless Steel Housing: Uses a durable stainless-steel rectangular housing for demanding industrial environments.
- High Ingress Protection: Provides IP67, IP68, and IP69K protection for washdown applications.
- Remote Teach: Allows sensing parameters to be configured remotely as well as through push-button controls.
- Fast Response: Provides a minimum response time of 2 ms for rapid detection applications.
The Q4XFKLAF610-Q8 delivers the reliability and precision required for industrial automation, distance measurement, object detection, and washdown applications.
