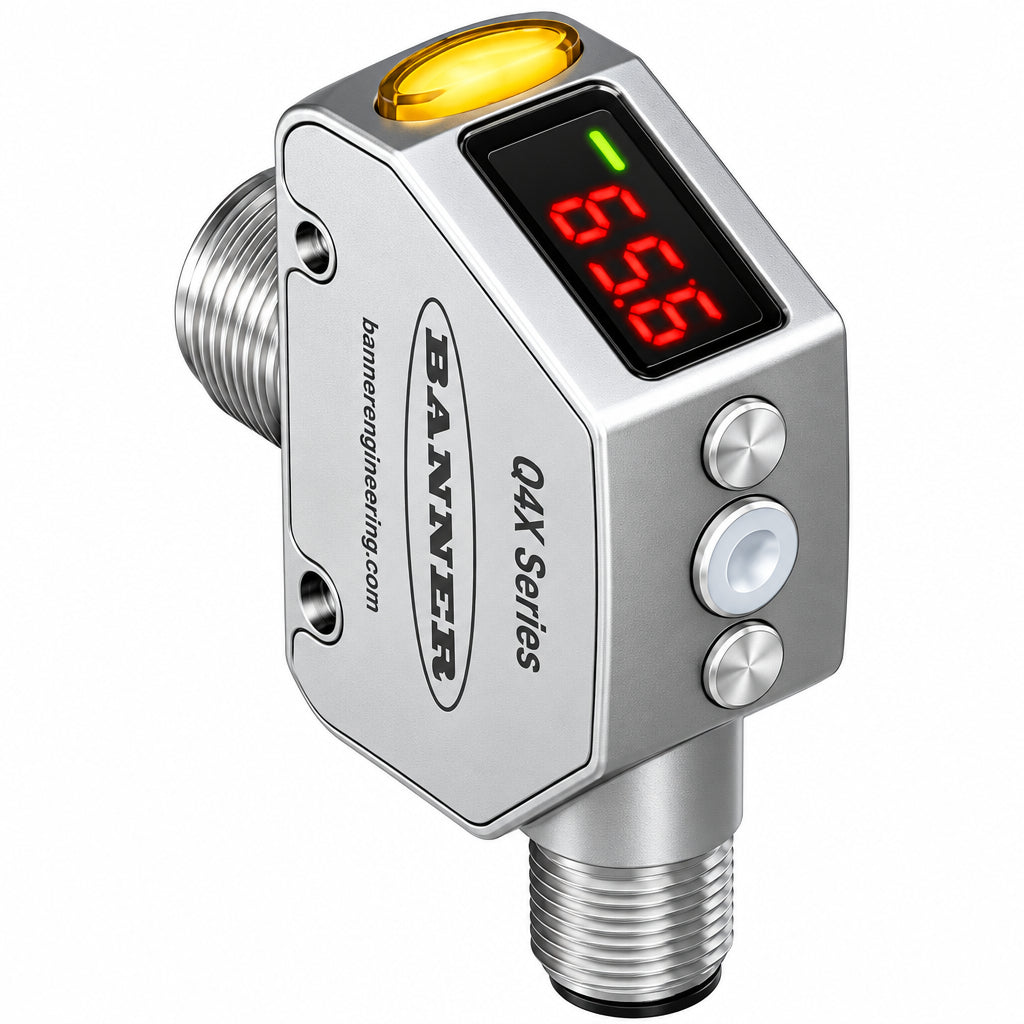

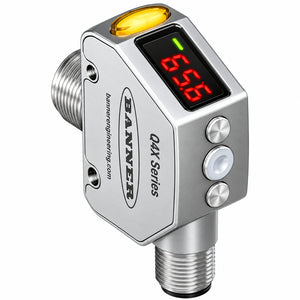

Banner Engineering Q4XTKLAF300-Q8 300mm Rugged Laser Distance Sensor
- Regular price
- $439.00
- Sale price
- $439.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q4XTKLAF300-Q8
Description
The Banner Engineering Q4XTKLAF300-Q8 is a Q4X Series rugged laser distance sensor designed for precise non-contact object detection and distance measurement in industrial automation applications. It provides a 25–300 mm sensing range using a visible red Class 1 laser and supports background and foreground suppression for reliable detection of challenging targets. The sensor operates from 10–30 VDC and provides a configurable PNP/NPN output with IO-Link plus a second PNP output through a 4-pin M12 connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | Q4XTKLAF300-Q8 |
| Subcategory | Laser Distance Sensors |
| Series | Q4X |
| Sensing Mode | Proximity / Background & Foreground Suppression |
| Sensing Range | 25–300 mm |
| Sensing Beam | Visible Red Laser |
| Wavelength | 655 nm |
| Laser Classification | Class 1 |
| Supply Voltage | 10–30 VDC |
| Output 1 | Configurable NPN/PNP with IO-Link |
| Output 2 | PNP |
| Communication | IO-Link |
| Connection | 4-pin M12 Integral Quick Disconnect |
| Housing Material | Stainless Steel |
| Housing Style | Rectangular with Threaded Mount |
| Barrel Thread | M18 |
| Minimum Response Time | 1.5 ms |
| Adjustments | Push Button and Remote Teach |
| IP Rating | IP67, IP68, IP69K |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -10°C to +50°C |
| Maximum Ambient Light | 5,000 lux |
| Clear Object Detection | Yes |
| Washdown Rated | Yes |
| Chemical Resistant | Yes |
| Ecolab Certified | Yes |
| Weight | Approx. 0.20 lb |
Information About Q4XTKLAF300-Q8
The Q4XTKLAF300-Q8 is a Banner Engineering Q4X Series laser adjustable-field sensor with a maximum sensing distance of 300 mm. It uses a visible red 655 nm Class 1 laser and has a minimum sensing distance of 25 mm. The sensor provides one configurable NPN/PNP output with IO-Link communication and one PNP output, allowing flexible integration with industrial control systems. Its stainless-steel housing, M18 threaded mount, and IP67/IP68/IP69K protection make it suitable for demanding washdown and industrial environments.
Key Features:
- Laser Adjustable Field: Provides adjustable laser-based sensing across a 25–300 mm detection range.
- Visible Red Laser: Uses a 655 nm visible red Class 1 laser for precise object detection and alignment.
- Dual Outputs: Provides one configurable NPN/PNP output with IO-Link and one PNP output.
- IO-Link Communication: Supports sensor configuration, monitoring, diagnostics, and process data communication.
- Background/Foreground Suppression: Helps detect targets while reducing the influence of surrounding surfaces.
- Stainless Steel Housing: Provides a durable housing designed for demanding industrial applications.
- High Ingress Protection: Provides IP67, IP68, and IP69K protection for washdown environments.
- Remote Teach: Allows sensor parameters to be adjusted remotely in addition to push-button configuration.
The Q4XTKLAF300-Q8 delivers the reliability and precision required for industrial automation, object detection, distance measurement, and washdown applications.
