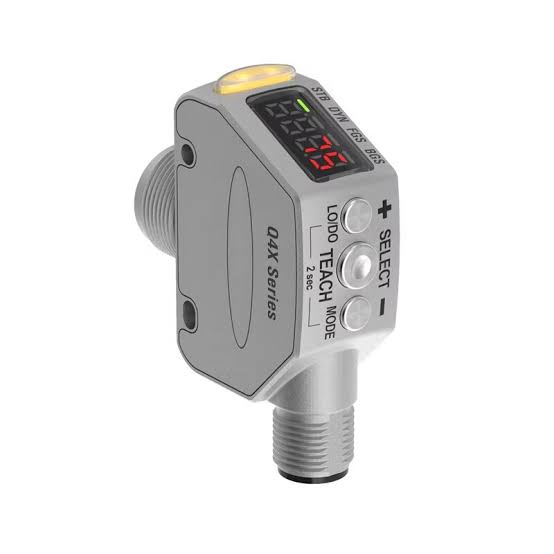

Banner Engineering Q4XTKLAF600-Q8 600mm Rugged Laser Distance Sensor
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q4XTKLAF600-Q8
Description
The Banner Engineering Q4XTKLAF600-Q8 is a Q4X Series rugged laser distance sensor designed for non-contact object detection and measurement in industrial automation applications. It provides a 25–600 mm sensing range, uses a visible red Class 1 laser, and operates from a 10–30 VDC supply. The sensor features a stainless steel housing, M12 quick-disconnect connection, dual discrete outputs, and IO-Link communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | Q4XTKLAF600-Q8 |
| Subcategory | Laser Distance Sensors |
| Series | Q4X |
| Sensor Type | Rugged Laser Distance Sensor |
| Sensing Mode | Background/Foreground Suppression |
| Sensing Range | 25–600 mm |
| Light Source | Visible Red Laser |
| Wavelength | 655 nm |
| Laser Classification | Class 1 |
| Supply Voltage | 10–30 VDC |
| Outputs | 1 PNP/NPN + 1 PNP |
| Communication | IO-Link |
| Connection | 4-Pin M12 Integral Quick Disconnect |
| Housing Material | Stainless Steel |
| Thread | M18 |
| Response Time | 2 ms minimum |
| IP Rating | IP67, IP68, IP69K |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -10°C to +50°C |
| UPC | 66248801308 |
| Weight | 0.35 lb |
Information About Q4XTKLAF600-Q8
The Q4XTKLAF600-Q8 uses background and foreground suppression to detect targets while reducing the influence of surrounding surfaces. Its sensing range extends from 25 mm to 600 mm, with a minimum response time of 2 ms and a visible red 655 nm laser. The sensor provides one configurable PNP/NPN output with IO-Link communication and a second PNP output that can support functions such as teach input, laser control, synchronization, or PFM. Its stainless steel threaded housing and IP67/IP68/IP69K protection make it suitable for demanding industrial and washdown environments.
Key Features:
- 600 mm Sensing Range: Detects targets from 25 mm to 600 mm using adjustable-field laser sensing.
- Visible Red Laser: Uses a Class 1 red laser with a 655 nm wavelength for optical detection.
- Background Suppression: Provides background and foreground suppression for reliable object detection.
- Dual Outputs: Includes one configurable PNP/NPN output and one PNP output for industrial control integration.
- IO-Link Communication: Supports process-data communication and sensor parameterization through IO-Link.
- Stainless Steel Housing: Uses a rugged stainless steel threaded housing designed for industrial environments.
- Washdown Protection: IP67, IP68, and IP69K ratings provide protection for demanding and washdown applications.
- Fast Response: Provides a minimum response time of 2 ms for high-speed detection tasks.
The Q4XTKLAF600-Q8 delivers the reliability and precision required for industrial automation, object detection, inspection, and machine-control applications.
