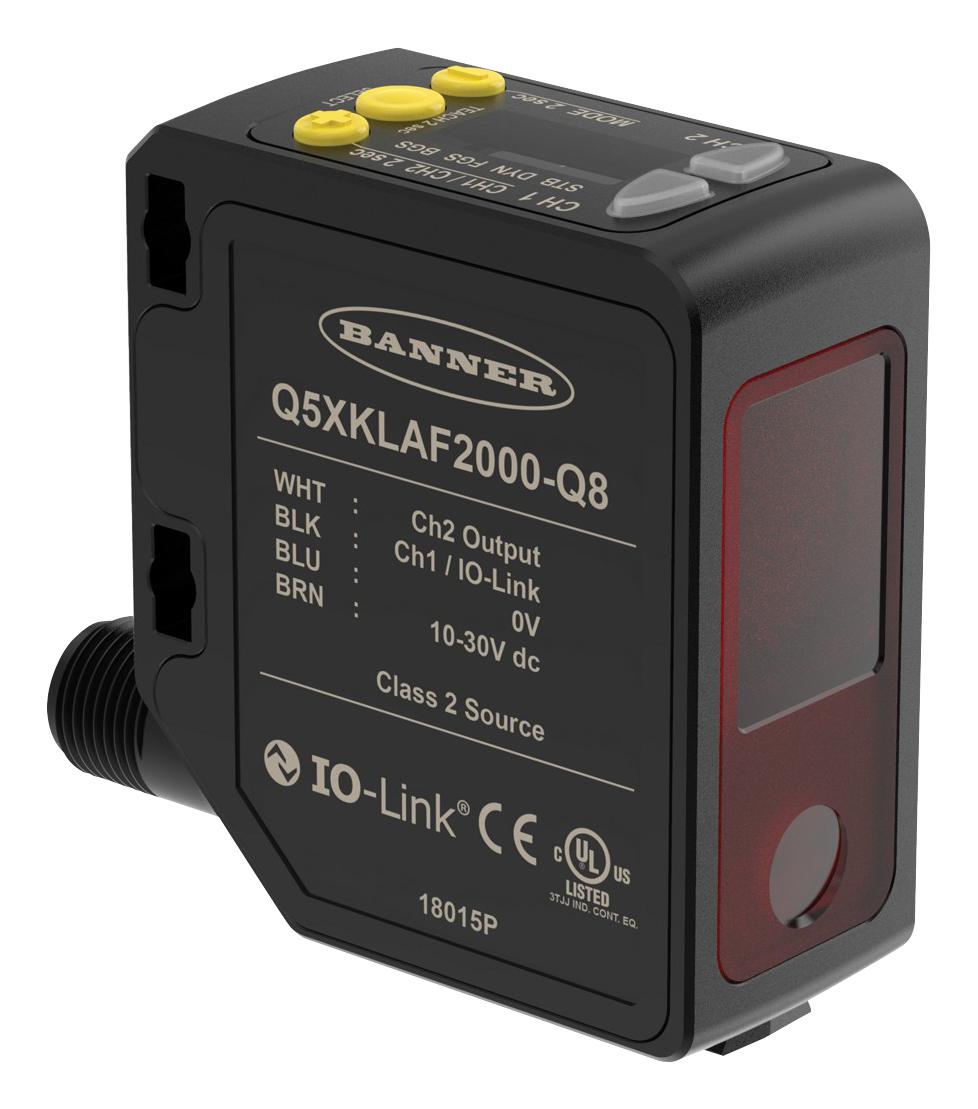

Banner Engineering Q5XKLAF2000-Q8 2000mm Laser Photoelectric Sensor
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q5XKLAF2000-Q8
Description
The Banner Engineering Q5XKLAF2000-Q8 is a Q5X Series high-power, multi-purpose laser photoelectric sensor designed for precise non-contact object and distance detection. It provides a 95–2000 mm sensing range, operates from 10–30 VDC, and uses a visible red Class 2 laser with background and foreground suppression. The sensor also provides IO-Link communication and two configurable NPN/PNP outputs through a 4-pin M12 connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | Q5XKLAF2000-Q8 |
| Subcategory | Photoelectric Sensors |
| Series | Q5X |
| Sensor Type | Laser Adjustable-Field Photoelectric Sensor |
| Sensing Mode | Proximity / Background & Foreground Suppression |
| Sensing Range | 95–2000 mm |
| Sensing Beam | Visible Red Laser |
| Laser Classification | Class 2 |
| Supply Voltage | 10–30 VDC |
| Outputs | 2 Configurable NPN/PNP Discrete Outputs |
| Communication | IO-Link |
| Connection | Integral 4-Pin M12 Male Quick Disconnect |
| Connector Rotation | 270° |
| Minimum Response Time | 3 ms |
| Housing Material | ABS |
| Housing Style | Rectangular |
| Adjustments | Push Button; Remote Teach |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -10°C to +50°C |
| Clear Object Detection | Yes |
| Weight | 0.26 lb |
Information About Q5XKLAF2000-Q8
The Q5XKLAF2000-Q8 is a Banner Engineering Q5X Series laser adjustable-field sensor with a maximum sensing distance of 2000 mm. It uses visible red laser sensing and supports detection of targets with background and foreground suppression. Channel 1 provides IO-Link with a push-pull output that can be configured as NPN or PNP, while Channel 2 provides a PNP output or configurable multifunction I/O. The sensor has a 270° rotatable integral 4-pin M12 male quick-disconnect connector and is rated IP67 and NEMA 4X.
Key Features:
- 2000 mm Sensing Range: Provides long-range detection from 95 mm to 2000 mm for industrial automation applications.
- Visible Red Laser: Uses a visible red Class 2 laser for accurate photoelectric detection.
- Adjustable Field: Supports laser adjustable-field sensing with background and foreground suppression.
- IO-Link Communication: Provides IO-Link connectivity for parameter configuration and industrial sensor communication.
- Dual Configurable Outputs: Offers two discrete channels with NPN/PNP configuration options.
- M12 Quick Disconnect: Features a 270° rotatable integral 4-pin M12 male quick-disconnect connector.
- Remote Teach: Supports push-button and remote teach functions for sensor setup.
- Industrial Protection: Provides IP67 and NEMA 4X environmental protection.
The Q5XKLAF2000-Q8 delivers the reliability and precision required for long-range object detection, distance sensing, and industrial automation applications.
