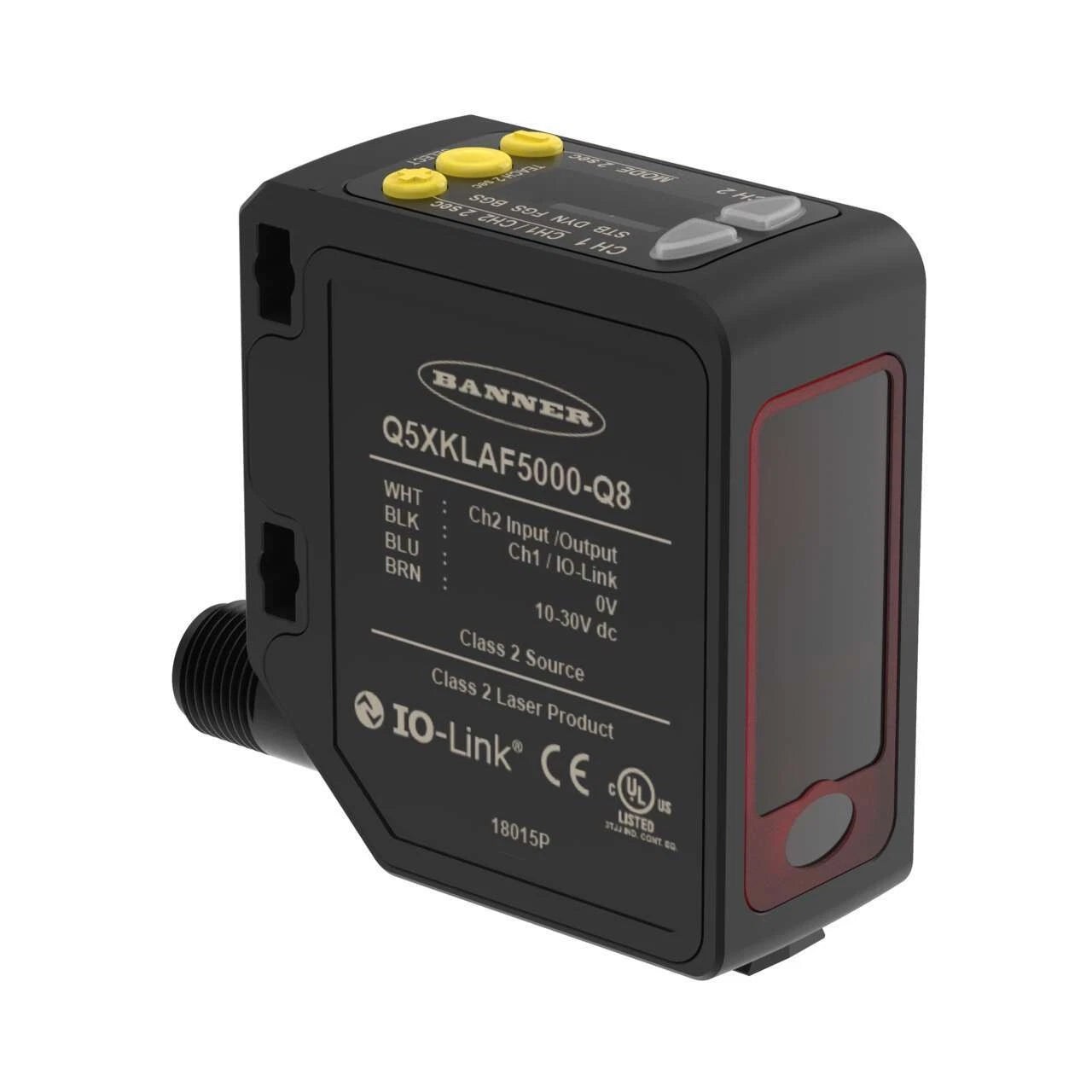

Banner Engineering Q5XKLAF5000-Q8 5000 mm Laser Photoelectric Sensor
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q5XKLAF5000-Q8
Description
Banner Engineering Q5XKLAF5000-Q8 is a high-power laser photoelectric sensor with adjustable background suppression and a 50–5000 mm sensing range. It provides configurable PNP/NPN outputs, IO-Link communication, and a 10–30 VDC supply for industrial automation and object-detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | Q5XKLAF5000-Q8 |
| Subcategory | Laser Photoelectric Sensors |
| Sensing Method | Proximity, Background Suppression |
| Sensing Range | 50–5000 mm |
| Wavelength | 650 nm |
| Laser Classification | Class 2 |
| Repeatability | 0.5 mm |
| Supply Voltage | 10–30 VDC |
| Output Type | PNP/NPN Configurable |
| Communication | IO-Link |
| Connection | 4-Pin Rotatable M12 QD |
| Response Time | 2 ms minimum |
| Operating Temperature | -10°C to +50°C |
| Housing Material | ABS |
| Weight | 0.287 lb |
Information About Q5XKLAF5000-Q8
The Q5XKLAF5000-Q8 belongs to Banner Engineering’s Q5X Series of laser adjustable-field sensors. It uses a visible red Class 2 laser and adjustable background/foreground suppression for detecting objects across extended distances. The sensor provides two configurable PNP/NPN outputs, with one output supporting IO-Link communication and the second supporting multifunction I/O functions. A rotatable 4-pin M12 quick-disconnect connection and IP67/NEMA 4X protection support industrial installation.
Key Features:
- Laser Detection: Uses a visible red Class 2 laser for long-range photoelectric sensing.
- Sensing Range: Provides an adjustable detection range from 50 to 5000 mm.
- Background Suppression: Supports adjustable background and foreground suppression.
- IO-Link Communication: Provides IO-Link functionality for device configuration and process data.
- Configurable Outputs: Includes two PNP/NPN configurable discrete outputs.
- Power Supply: Operates from a 10–30 VDC supply.
- M12 Connection: Uses an integral rotatable 4-pin M12 quick-disconnect connection.
- Environmental Protection: IP67 and NEMA 4X rated housing for industrial environments.
The Q5XKLAF5000-Q8 delivers the reliability and precision required for long-range photoelectric sensing, object detection, and automated industrial control applications.
