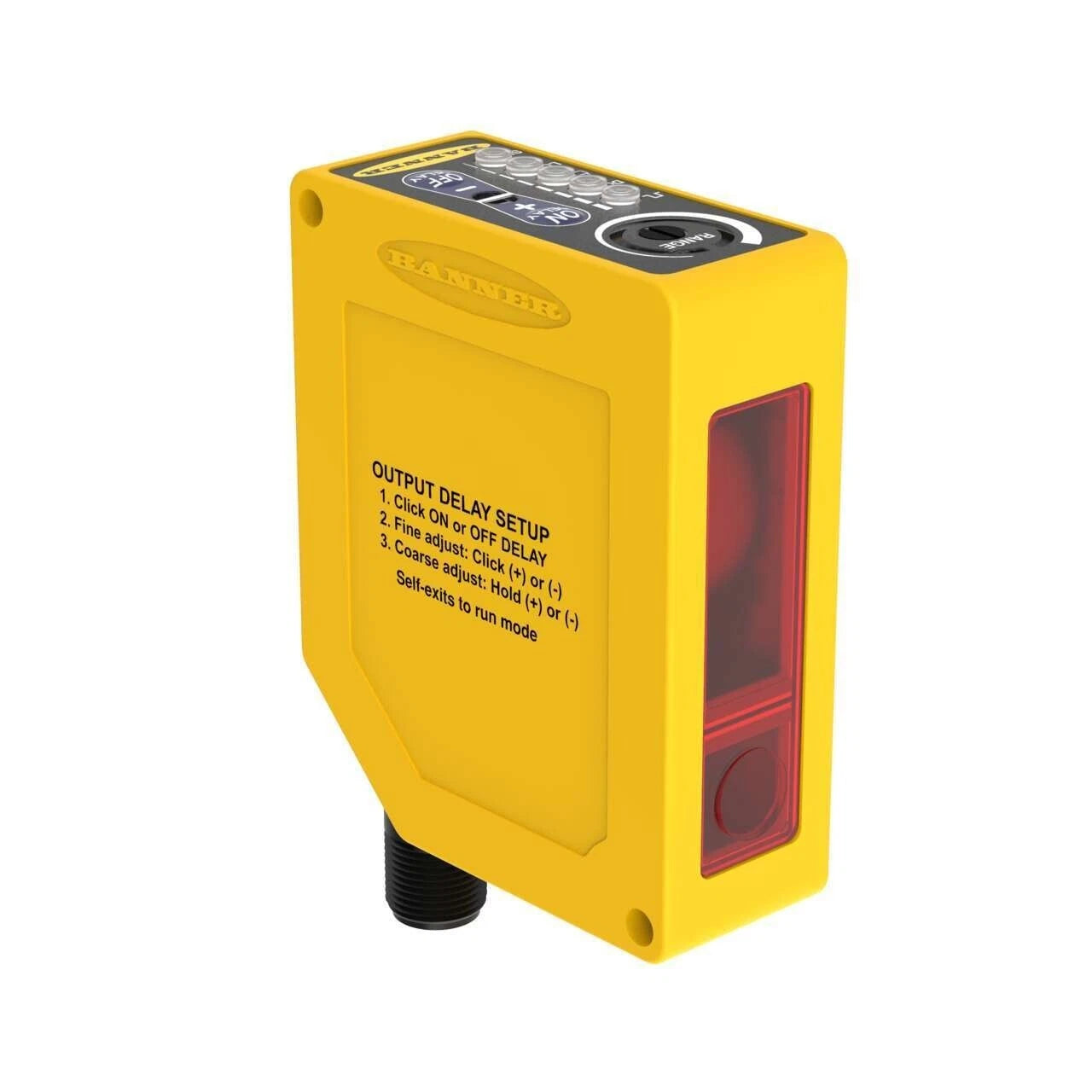

Banner Engineering Q60VR3AF2000Q1 Adjustable-Field Photoelectric Sensor
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q60VR3AF2000Q1
Description
Banner Engineering Q60VR3AF2000Q1 is an adjustable-field photoelectric sensor designed for background-suppressed object detection over a 200–2000 mm sensing range. It uses an infrared LED, universal AC/DC supply, and an SPST electromechanical relay output for industrial sensing applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | Q60VR3AF2000Q1 |
| Subcategory | Photoelectric Sensors |
| Series | Q60AF |
| Product Type | Adjustable-Field Photoelectric Sensor |
| Sensing Method | Background Suppression |
| Sensing Range | 200–2000 mm |
| Light Source | Infrared LED |
| Output Type | Electromechanical Relay |
| Output Configuration | SPST, Normally Open |
| Supply Voltage | 12–250 VDC / 24–250 VAC |
| Operating Temperature | -20°C to +55°C |
| Ingress Protection | IP67 |
| Lens Material | Acrylic |
| Dimensions | 75 × 25 × 60 mm |
| Weight | 0.30 lb |
Information About Q60VR3AF2000Q1
The Q60VR3AF2000Q1 is part of Banner Engineering’s Q60AF Series of adjustable-field photoelectric sensors. Its mechanically adjustable cutoff point allows the sensor to detect objects while disregarding backgrounds located beyond the selected sensing distance. The sensor uses a 4-pin Micro-style quick-disconnect connection and supports both Light-ON and Dark-ON operation. Its thermoplastic housing and IP67/NEMA 6 protection support installation in demanding industrial environments.
Key Features:
- Adjustable-Field Detection: Provides mechanically adjustable background suppression for controlled object detection.
- Sensing Range: Detects objects from 200 mm to 2000 mm.
- Infrared Detection: Uses an infrared LED sensing beam.
- Universal Voltage: Accepts 12–250 VDC or 24–250 VAC supply.
- Relay Output: Provides an SPST electromechanical relay output with normally open contact.
- Quick Disconnect: Uses a 4-pin Micro-style QD connection.
- Environmental Protection: IP67 and NEMA 6 rated housing for industrial environments.
- Response Time: Provides a 15 ms output response time.
The Q60VR3AF2000Q1 delivers the reliability and precision required for adjustable-field photoelectric sensing and industrial object detection applications.
