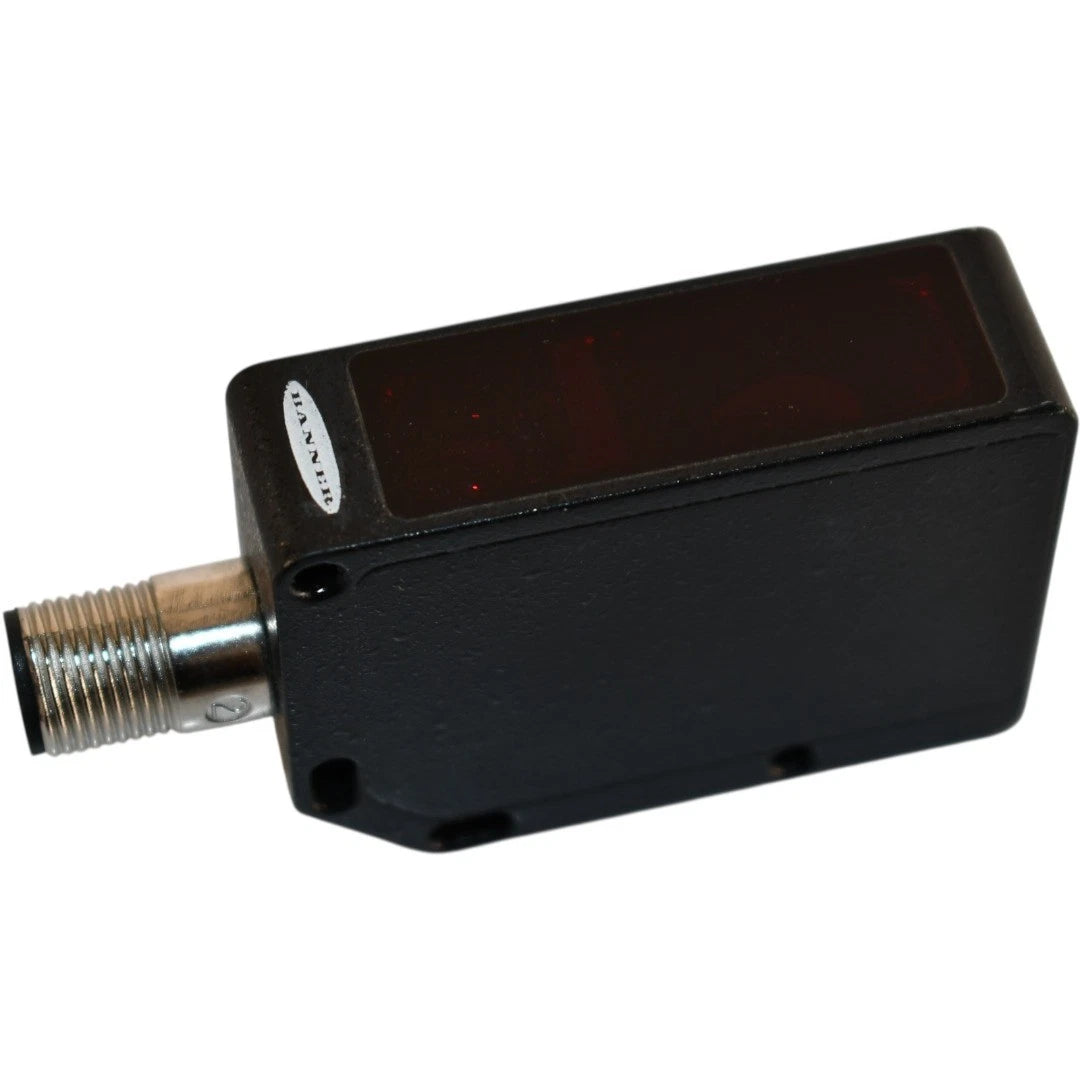

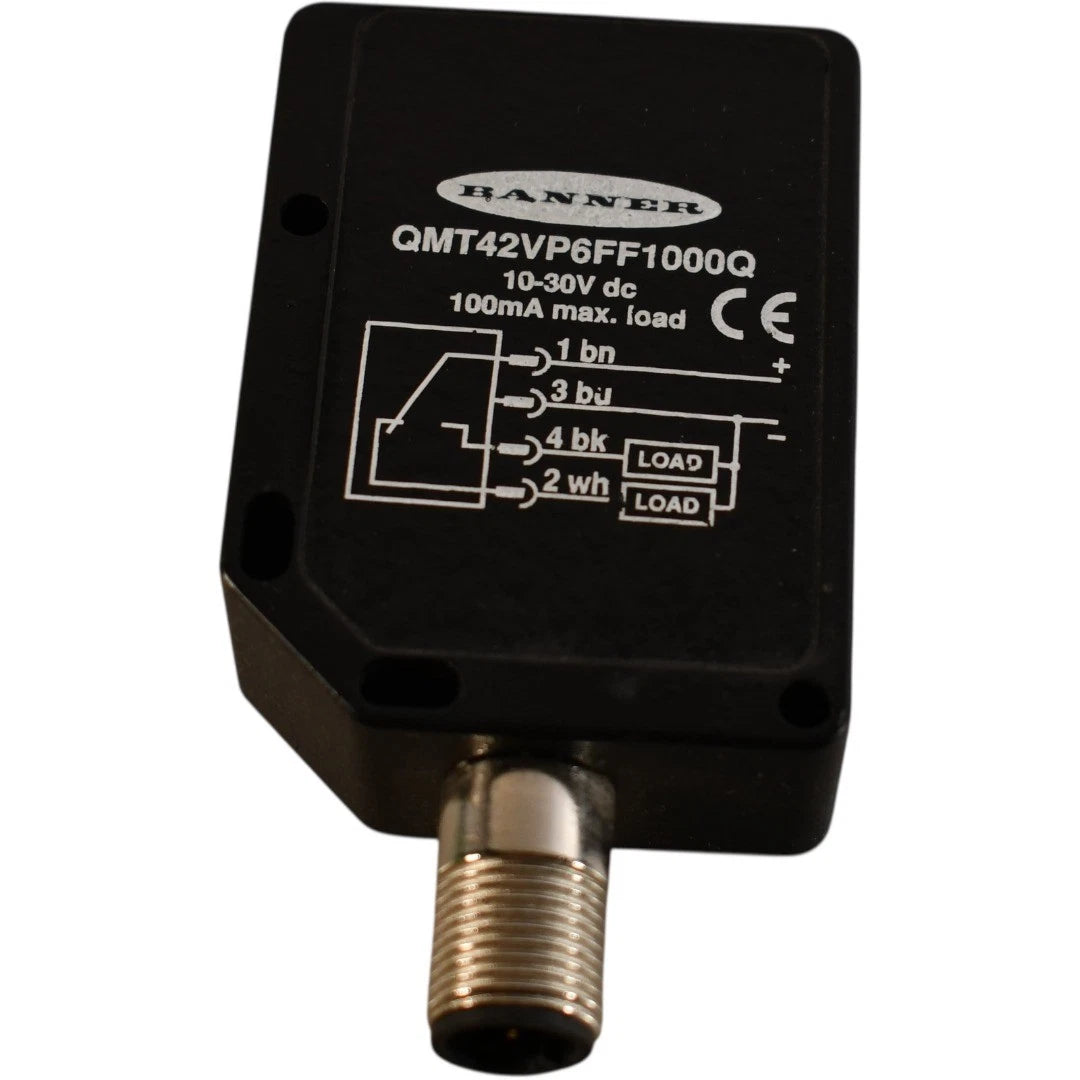

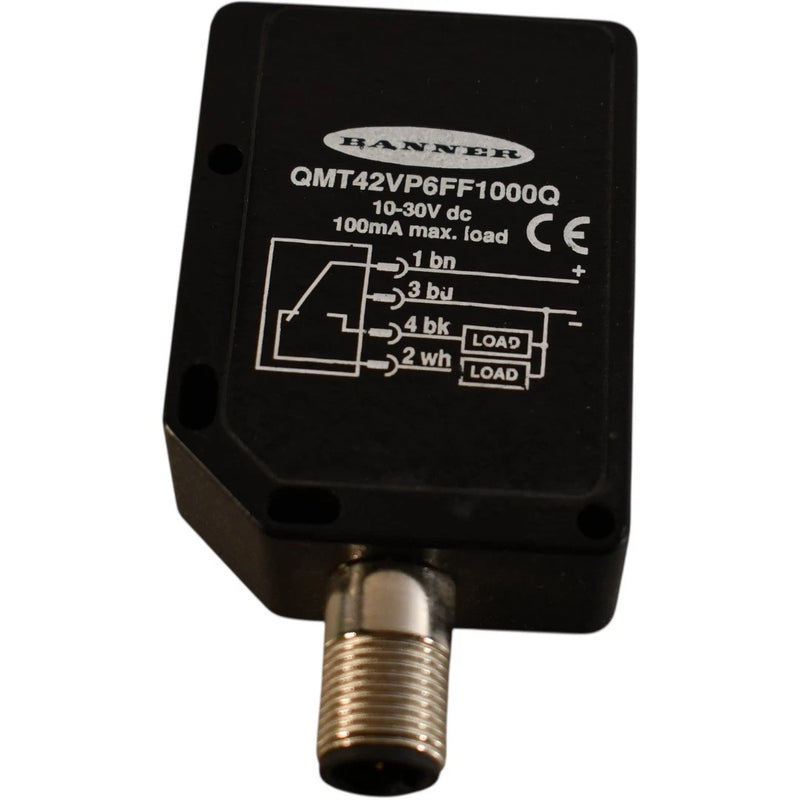

Banner Engineering QMT42VP6FF1000Q 1000mm Fixed Field Photoelectric Sensor
- Regular price
- $445.00
- Sale price
- $445.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QMT42VP6FF1000Q
Description
The Banner Engineering QMT42VP6FF1000Q is a QMT42 Series fixed-field photoelectric sensor designed for non-contact object detection in industrial automation applications. It provides a 1000 mm sensing cutoff using an infrared LED and fixed background suppression, with a complementary PNP output configuration. The sensor operates from 10–30 VDC and uses a 4-pin M12 integral quick-disconnect connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | QMT42VP6FF1000Q |
| Subcategory | Photoelectric Sensors |
| Series | QMT42 |
| Sensor Type | Fixed-Field Photoelectric Sensor |
| Sensing Mode | Proximity / Fixed Background Suppression |
| Sensing Range | 1000 mm (1 m) |
| Sensing Beam | Infrared LED |
| Wavelength | 880 nm |
| Output | SPDT / Complementary PNP |
| Supply Voltage | 10–30 VDC |
| Connection | 4-Pin Integral M12 Quick Disconnect |
| Operation | Light/Dark Operate |
| Response Time | 1 ms |
| Repeatability | 250 µs |
| Housing Material | Zinc Alloy Die-Cast |
| Housing Style | Rectangular |
| Lens Material | Acrylic |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -20°C to +55°C |
| Relative Humidity | 90% @ 50°C |
| Weight | 0.332 lb |
Information About QMT42VP6FF1000Q
The QMT42VP6FF1000Q is a Banner Engineering QMT42 Series fixed-field proximity sensor with a maximum sensing distance of 1000 mm. It uses infrared LED sensing at an 880 nm wavelength and provides complementary PNP outputs with selectable light/dark operation. The sensor has a zinc alloy die-cast rectangular housing and an acrylic lens. Its IP67 and NEMA 4X protection make it suitable for industrial sensing environments.
Key Features:
- Fixed-Field Sensing: Detects objects within a defined 1000 mm sensing field while suppressing background objects.
- 1000 mm Range: Provides a maximum sensing distance of 1 meter for industrial object detection.
- Infrared LED: Uses an 880 nm infrared LED sensing beam.
- Complementary PNP Output: Provides SPDT complementary PNP output for industrial control integration.
- 10–30 VDC Operation: Supports a standard industrial DC supply range.
- M12 Quick Disconnect: Features an integral 4-pin M12 quick-disconnect connection.
- Rugged Housing: Uses a zinc alloy die-cast rectangular housing designed for industrial installations.
- Fast Response: Provides a 1 ms output response time.
The QMT42VP6FF1000Q delivers the reliability and precision required for industrial automation, object detection, material handling, and machine-control applications.
