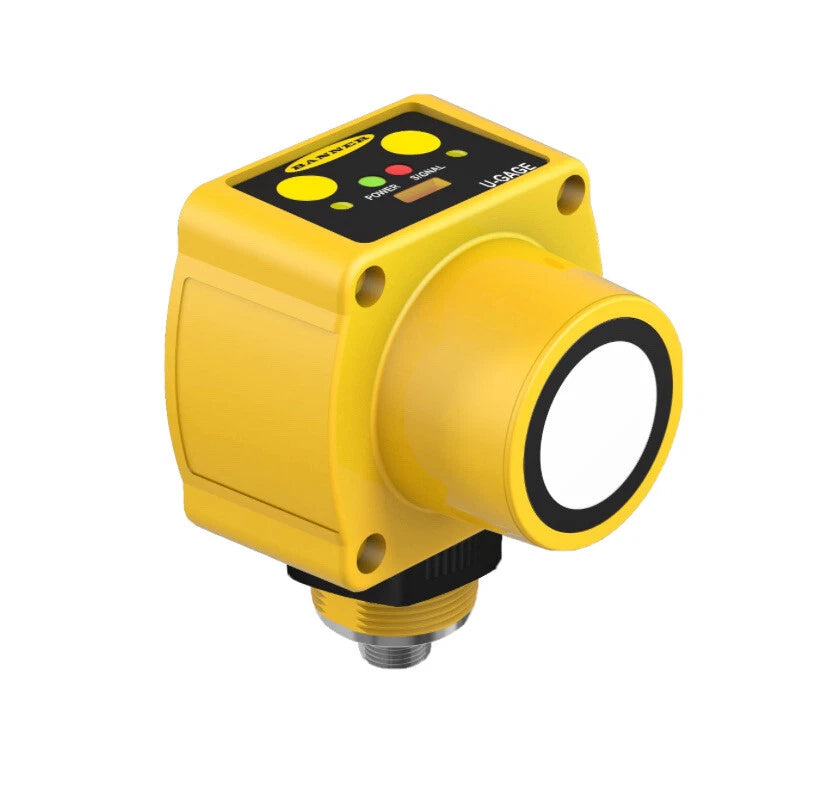

Banner Engineering QT50UDBQ6 QT50U 8m Ultrasonic Proximity Sensor
- Regular price
- $1,032.00
- Sale price
- $1,032.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QT50UDBQ6
Description
The Banner Engineering QT50UDBQ6 is a QT50U Series ultrasonic proximity sensor designed for non-contact distance and object detection. It provides a 200 mm to 8 m sensing range, operates on 10–30 VDC, and features two configurable NPN/PNP discrete outputs. The sensor uses a 5-pin M12 integral quick-disconnect and is housed in a rectangular PBT enclosure with IP67 and NEMA 4X protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | QT50UDBQ6 |
| Subcategory | Ultrasonic Sensors |
| Series | QT50U / U-GAGE |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Proximity / Time of Flight |
| Sensing Range | 200 mm – 8 m |
| Ultrasonic Frequency | 75 kHz |
| Supply Voltage | 10–30 VDC |
| Outputs | 2 Discrete NPN/PNP Configurable |
| Connection | 5-Pin Integral M12 Quick Disconnect |
| Housing Material | PBT / Thermoplastic |
| Housing Style | Rectangular |
| Minimum Sensing Distance | 200 mm |
| Maximum Sensing Distance | 8,000 mm |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -20°C to +70°C |
| Thread Size | M30 |
| Remote Teach | Yes |
| Weight | 0.90 lb |
Information About QT50UDBQ6
The QT50UDBQ6 is part of Banner Engineering's U-GAGE QT50U Series of long-range ultrasonic sensors. It uses time-of-flight ultrasonic sensing at a 75 kHz frequency to determine the distance to a target without physical contact. The sensor provides two selectable NPN or PNP switched outputs and supports remote teach programming. Its 5-pin M12 connection and rugged PBT housing make it suitable for integration into industrial automation and material-detection systems.
Key Features:
- 8 m Sensing Range: Detects targets from 200 mm up to 8 m for long-distance industrial applications.
- Ultrasonic Detection: Uses ultrasonic time-of-flight technology for non-contact object and distance measurement.
- Dual Discrete Outputs: Provides two configurable NPN or PNP switched outputs.
- 10–30 VDC Operation: Supports a standard industrial DC supply range.
- 75 kHz Frequency: Uses a 75 kHz ultrasonic sensing frequency for distance detection.
- Remote Teach: Supports remote teach functionality for convenient sensor setup.
- M12 Quick Disconnect: Includes a 5-pin integral M12 connection for industrial wiring.
- IP67 Protection: Provides IP67 and NEMA 4X environmental protection for industrial installations.
The QT50UDBQ6 delivers the reliability and precision required for long-range ultrasonic object detection, distance measurement, and industrial automation applications.
