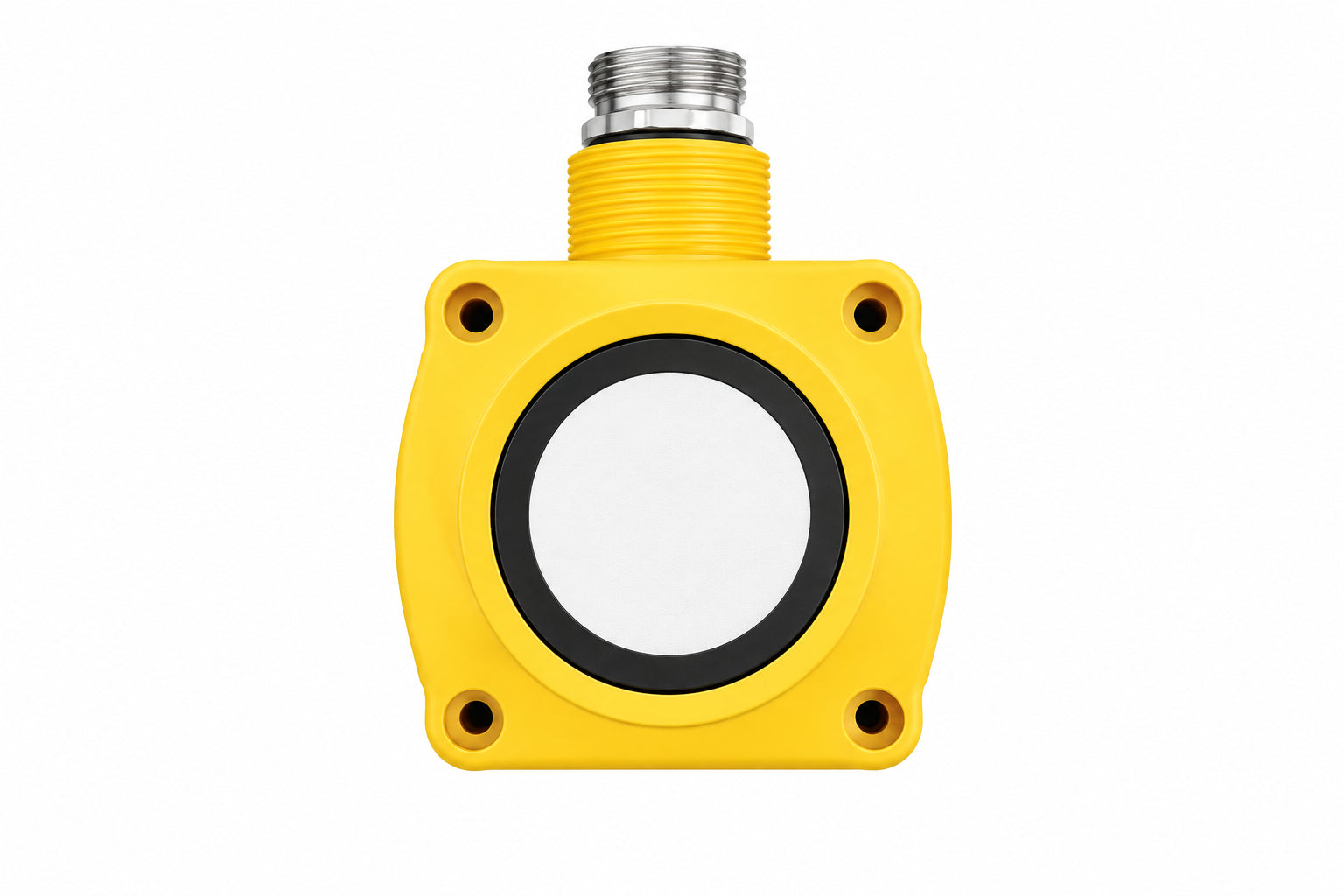

Banner Engineering QT50UVR3WQ 8m Universal Ultrasonic Proximity Sensor
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QT50UVR3WQ
Description
The Banner Engineering QT50UVR3WQ is a QT50U Series universal-voltage ultrasonic proximity sensor designed for non-contact object and position detection. It provides a 200 mm to 8 m sensing range and uses a 75 kHz ultrasonic beam with an SPDT electromechanical relay output. The sensor accepts 85–264 VAC or 48–250 VDC and uses a 5-pin Mini-style integral quick-disconnect connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | QT50UVR3WQ |
| Subcategory | Ultrasonic Sensors |
| Series | QT50U / U-GAGE |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Proximity / Time of Flight |
| Sensing Range | 200 mm–8 m |
| Ultrasonic Frequency | 75 kHz |
| Supply Voltage | 85–264 VAC / 48–250 VDC |
| Output | SPDT Electromechanical Relay |

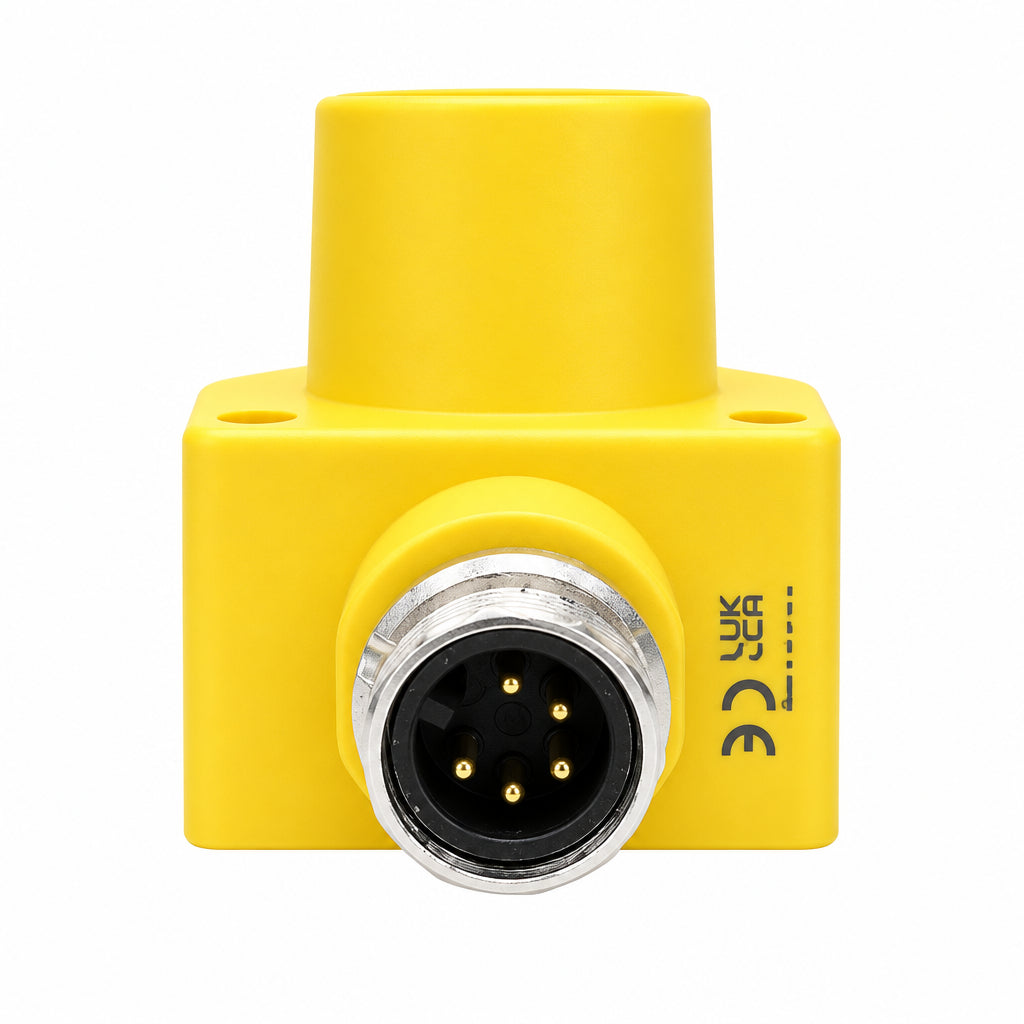

| Connection | 5-Pin Integral Quick Disconnect |
| QD Type | 7/8 in. Mini-Style |
| Housing Material | PBT |
| Housing Style | Rectangular |
| Minimum Response Time | 100 ms |
| Operating Temperature | -20°C to +70°C |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Remote Teach | Yes |
| Clear Object Detection | Yes |
| Weight | 0.86 lb |
Information About QT50UVR3WQ
The QT50UVR3WQ is a Banner Engineering U-GAGE QT50U Series ultrasonic sensor configured for window-limit proximity operation. It uses time-of-flight ultrasonic sensing and can detect targets from 200 mm to 8 m. The sensor provides an SPDT electromechanical relay output suitable for switching higher-capacity loads and supports push-button Teach-mode programming. Its PBT housing provides IP67 and NEMA 4X protection for industrial environments.
Key Features:
- Ultrasonic Sensing: Uses time-of-flight ultrasonic technology for non-contact object detection.
- 8 m Sensing Range: Provides a 200 mm to 8 m operating range for long-distance applications.
- Universal Voltage Input: Accepts 85–264 VAC or 48–250 VDC.
- SPDT Relay Output: Provides a normally open/normally closed electromechanical relay output.
- 75 kHz Ultrasonic Frequency: Uses a 75 kHz sensing frequency for distance detection.

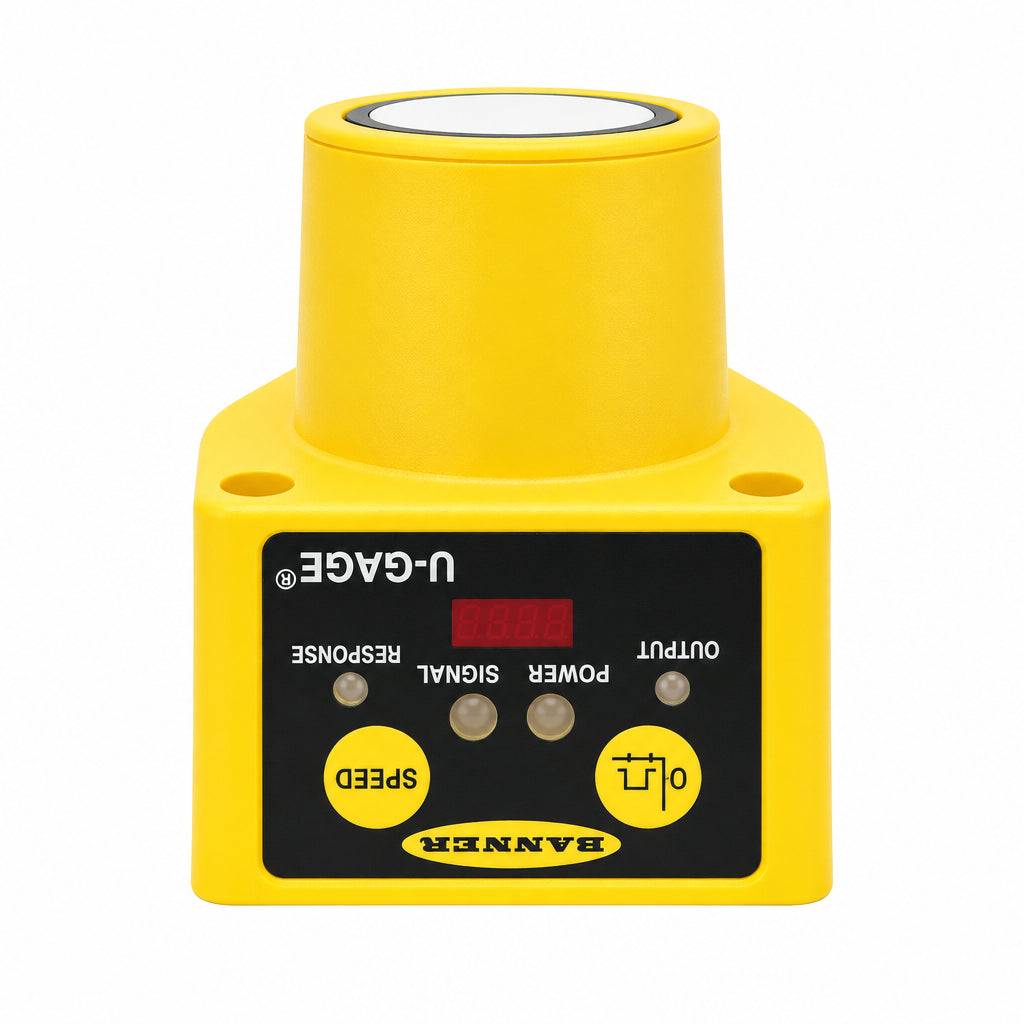

- Teach-Mode Programming: Supports simple push-button sensor setup without potentiometer adjustments.
- M12-Style QD Connection: Uses a 5-pin 7/8-inch Mini-style integral quick disconnect.
- Rugged Housing: Provides IP67 and NEMA 4X environmental protection.
The QT50UVR3WQ delivers the reliability and precision required for industrial position monitoring, object detection, and automation applications.
