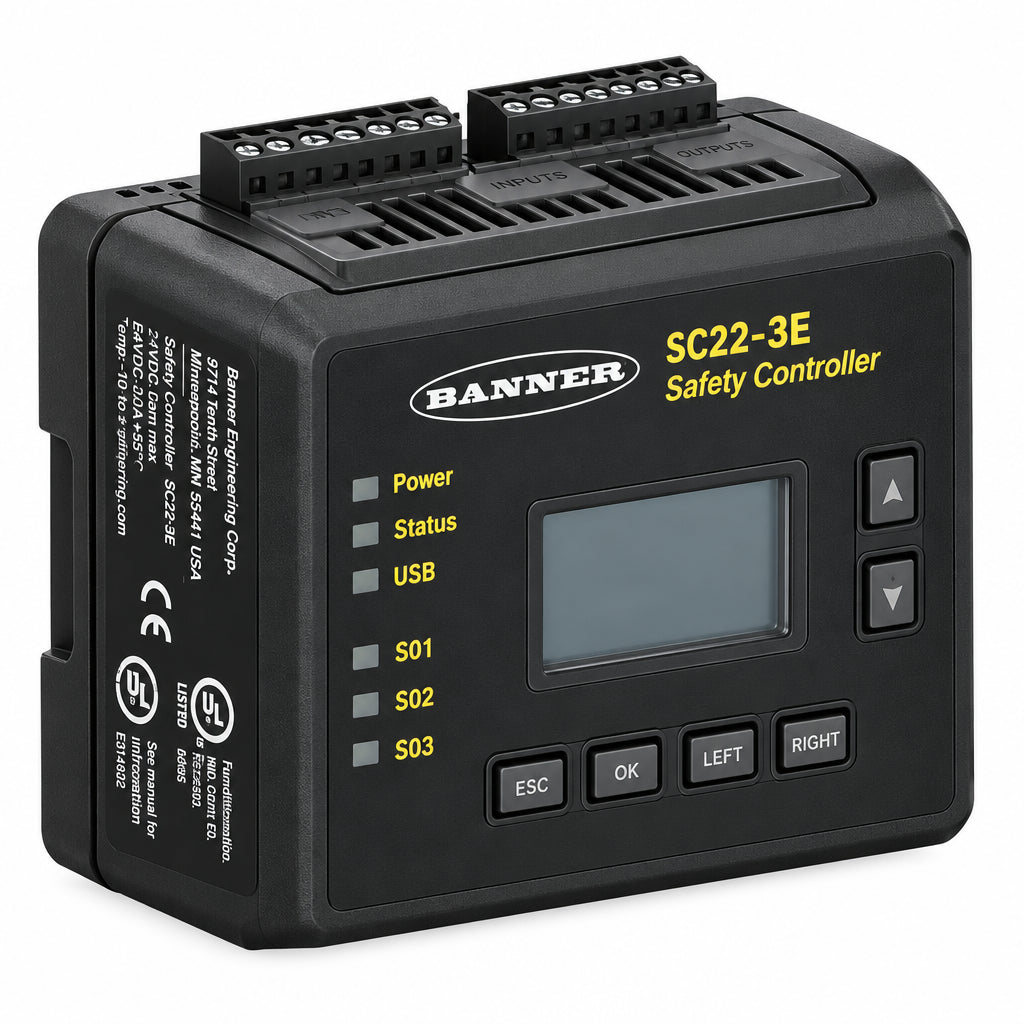

Banner Engineering SC22-3E Ethernet Safety Controller 22-Input
- Regular price
- $1,952.00
- Sale price
- $1,952.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SC22-3E
Description
The Banner Engineering SC22-3E is an SC22 Series Ethernet safety controller designed to monitor safety devices and control machine-safety circuits. It provides 22 configurable safety inputs, three pairs of PNP safety outputs rated at 0.5 A each, and 10 auxiliary status outputs, with Ethernet communication supporting protocols including Modbus/TCP and PCCC. The controller operates from 24 VDC and is rated for Category 4, PL e, and SIL 3 safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Safety & Machine Controls |
| Part Number | SC22-3E |
| Subcategory | Safety Controllers |
| Series | SC22 |
| Device Type | Ethernet Safety Controller |
| Supply Voltage | 24 VDC ±20% |
| Safe Inputs | 22 |
| Input Configuration | Configurable |
| Safety Outputs | 3 independently controlled OSSD pairs |
| Safety Output Rating | 0.5 A max. at 24 VDC per output |
| Status Outputs | 10 PNP |
| Virtual Status Outputs | 32 |
| Safety Category | Category 4 |
| Performance Level | PL e |
| SIL Rating | SIL 3 / SIL CL 3 |
| Communication | Ethernet |
| Supported Protocols | Modbus/TCP, PCCC, Common Ethernet Protocol |
| IP Rating | IP20 |
| Dimensions | 112 × 131 × 64 mm |
| Operating Temperature | Up to 55°C |
| Relative Humidity | 90% at 50°C |
| Terminal Type | Removable clamp terminals |
| LCD Display | Yes |
| Expansion | No |
| Weight | 2.01 lbs |
Information About SC22-3E
The SC22-3E is a Banner Engineering SC22 Series Ethernet safety controller with 22 configurable inputs for safety and non-safety devices. It provides three independently controlled dual-channel OSSD output pairs, with each safety output rated at up to 0.5 A at 24 VDC. The controller also provides 10 configurable physical PNP status outputs and 32 virtual status outputs available through Ethernet communication. It supports applications including emergency stops, safety mats, two-hand controls, muting, gate switches, and safety light curtains.
Key Features:
- 22 Configurable Inputs: Supports safety and non-safety input devices with configurable input operation.
- Three Safety Output Pairs: Provides three independently controlled dual-channel PNP/OSSD safety outputs.
- Ethernet Communication: Supports network-based monitoring and configuration through Ethernet.
- Modbus/TCP Support: Provides Modbus/TCP communication for industrial network integration.
- Auxiliary Outputs: Includes 10 configurable PNP status outputs and 32 virtual status outputs.
- Multiple Safety Functions: Supports E-stops, safety mats, two-hand controls, muting, gate switches, and light curtains.
- High Safety Rating: Designed for Category 4, PL e, and SIL 3 safety applications.
- 24 VDC Operation: Uses a 24 VDC power supply for industrial control installations.
The SC22-3E delivers the reliability and precision required for machine safety control, emergency-stop systems, guard monitoring, and industrial automation applications.
