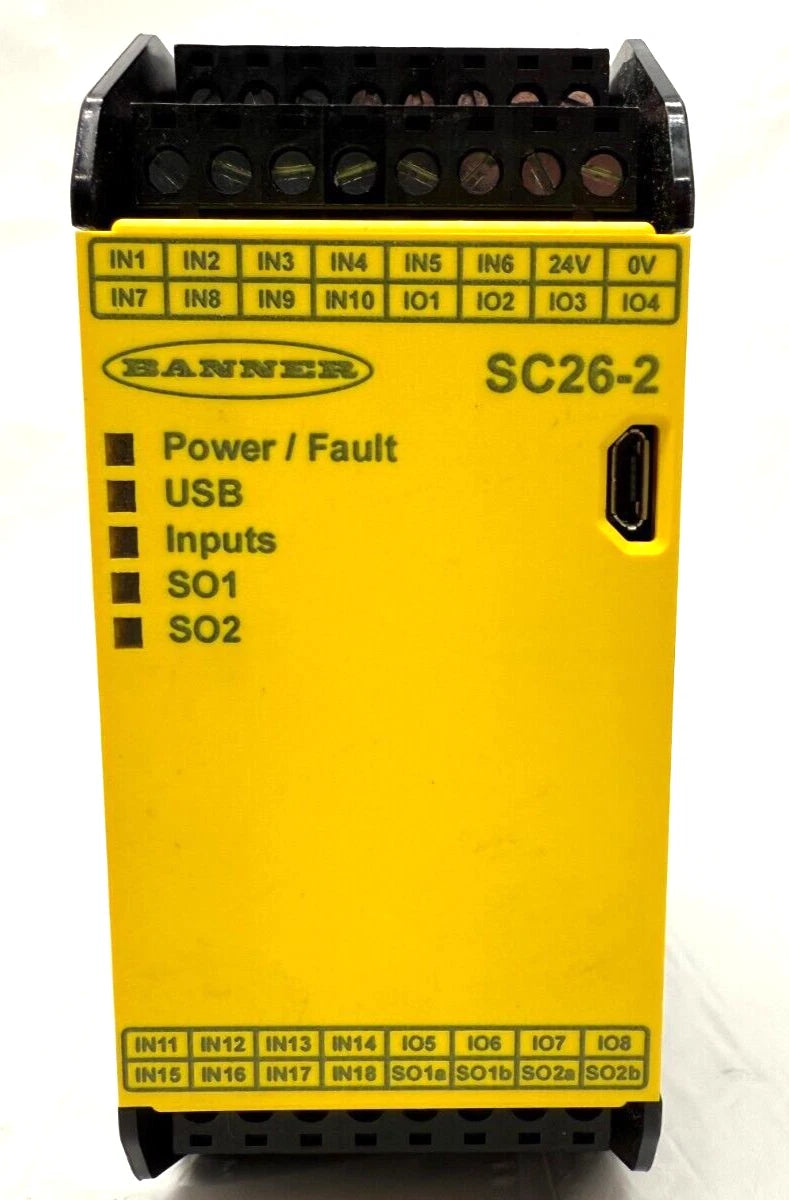

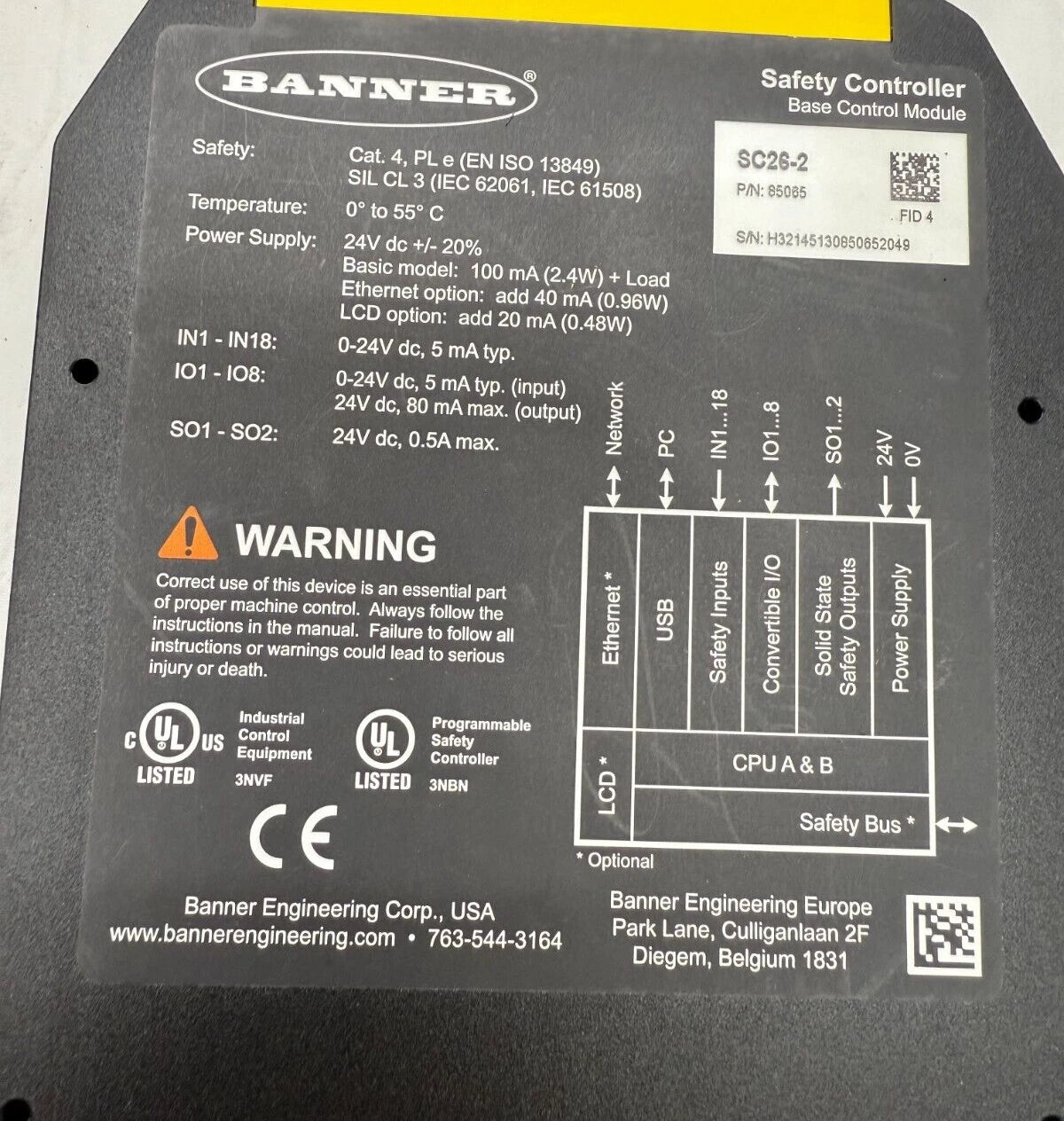

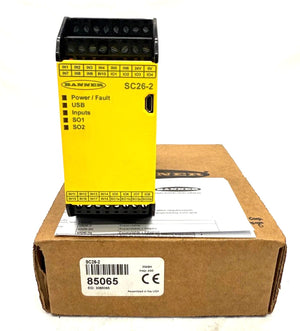

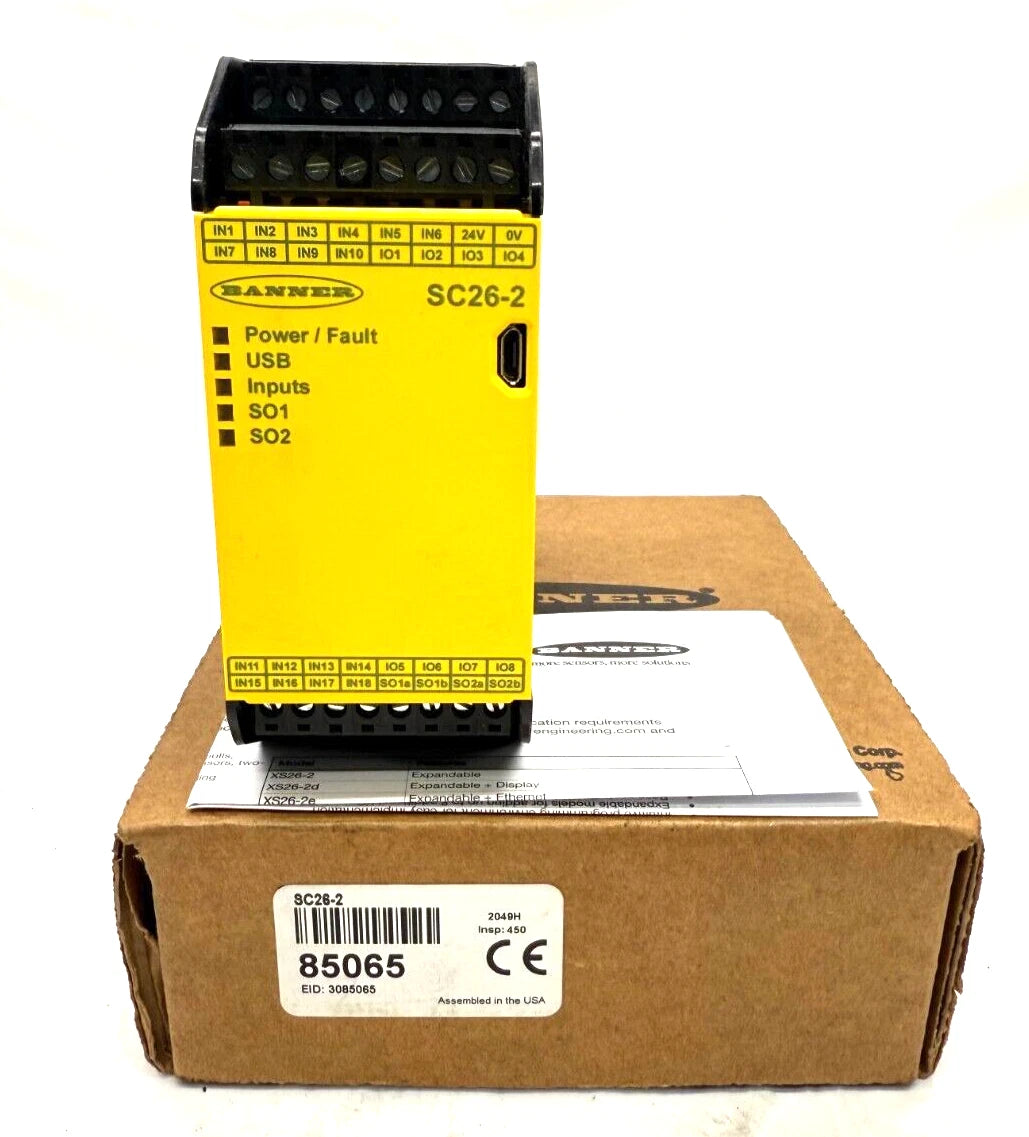

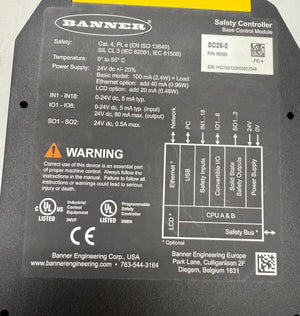

Banner Engineering SC26-2 Configurable Safety Controller
- Regular price
- $829.00
- Sale price
- $829.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SC26-2
Description
The Banner Engineering SC26-2 is a configurable safety controller designed to monitor and control a wide range of machine safety devices in industrial automation systems. Featuring 26 configurable safety inputs, dual OSSD safety outputs, and certified Category 4, PLe, and SIL3 performance, it provides flexible and reliable machine safeguarding without the need for expansion modules.
Technical Specifications
| Condition | New |
| Brand | Banner Engineering |
| Part Number | SC26-2 |
| Category | Safety Systems |
| Subcategory | Safety Controller |
| Product Type | Configurable Safety Controller |
| Series | SC26-2 |
| Supply Voltage | 24 VDC |
| Power Supply | DC |
| Safe Inputs | 26 Configurable Digital Inputs |
| Convertible Inputs | 8 |
| Safe Outputs | 4 (2 OSSD Pairs) |
| Non-Safe Outputs | Up to 11 PNP |
| Output Rating | 0.5 A @ 24 VDC (OSSD) |
| Expandable | No |
| Safety Rating | Category 4, PLe, SIL3 |
| Protection Rating | IP20 (IP54 when installed in enclosure) |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Terminal |
| Operating Temperature | 0°C to +55°C |
| Dimensions (H × W × D) | 110 × 45 × 129 mm |
| Approval Agency | CE, cULus, UL |
| Weight | 0.25 lbs |
Information About SC26-2
The SC26-2 is part of Banner Engineering's SC26 Series Safety Controllers, offering programmable safety logic for standalone machine safety applications. It supports 26 configurable digital safety inputs, four independently controlled safe outputs (two OSSD pairs), and up to eleven configurable non-safe PNP outputs. Designed for monitoring emergency stops, safety mats, gate switches, light curtains, muting, and two-hand controls, the controller simplifies machine safety implementation through intuitive configuration software. Unlike the XS26 Series, the SC26-2 is a non-expandable safety controller, making it an ideal solution for fixed-size safety systems.
Key Features:
- SC26 Series configurable safety controller
- 26 configurable digital safety inputs
- Four independently controlled safety outputs (2 OSSD pairs)
- Up to 11 configurable non-safe PNP outputs
- Standalone, non-expandable design
- Supports E-Stops, light curtains, gate switches, safety mats, muting, and two-hand controls
- Certified to Category 4, PLe, and SIL3 safety standards
- Screw terminals with removable connectors
- DIN rail mounting
- Intuitive software configuration for simplified safety programming
The SC26-2 delivers flexible machine safety control for industrial automation and manufacturing applications.
