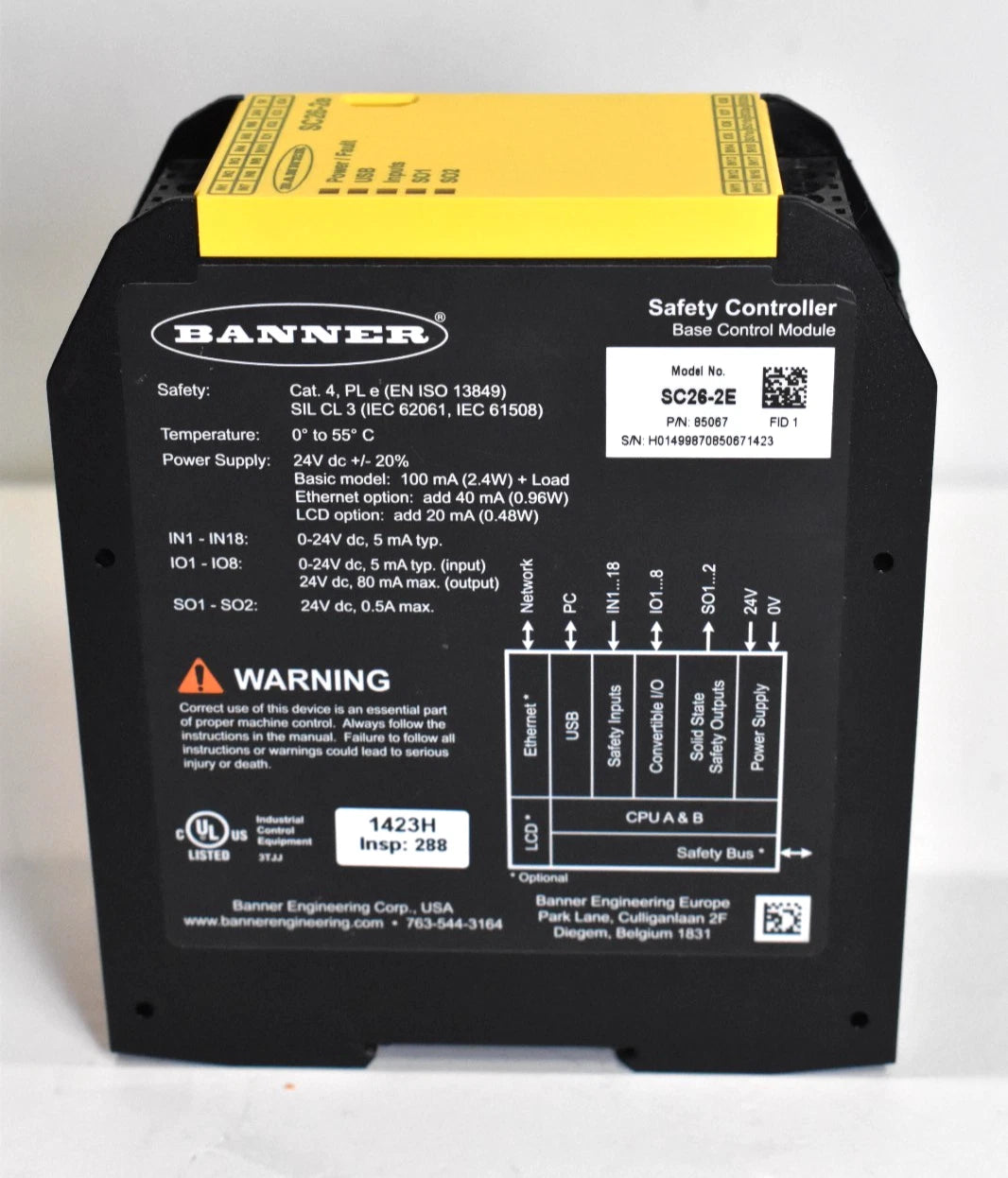

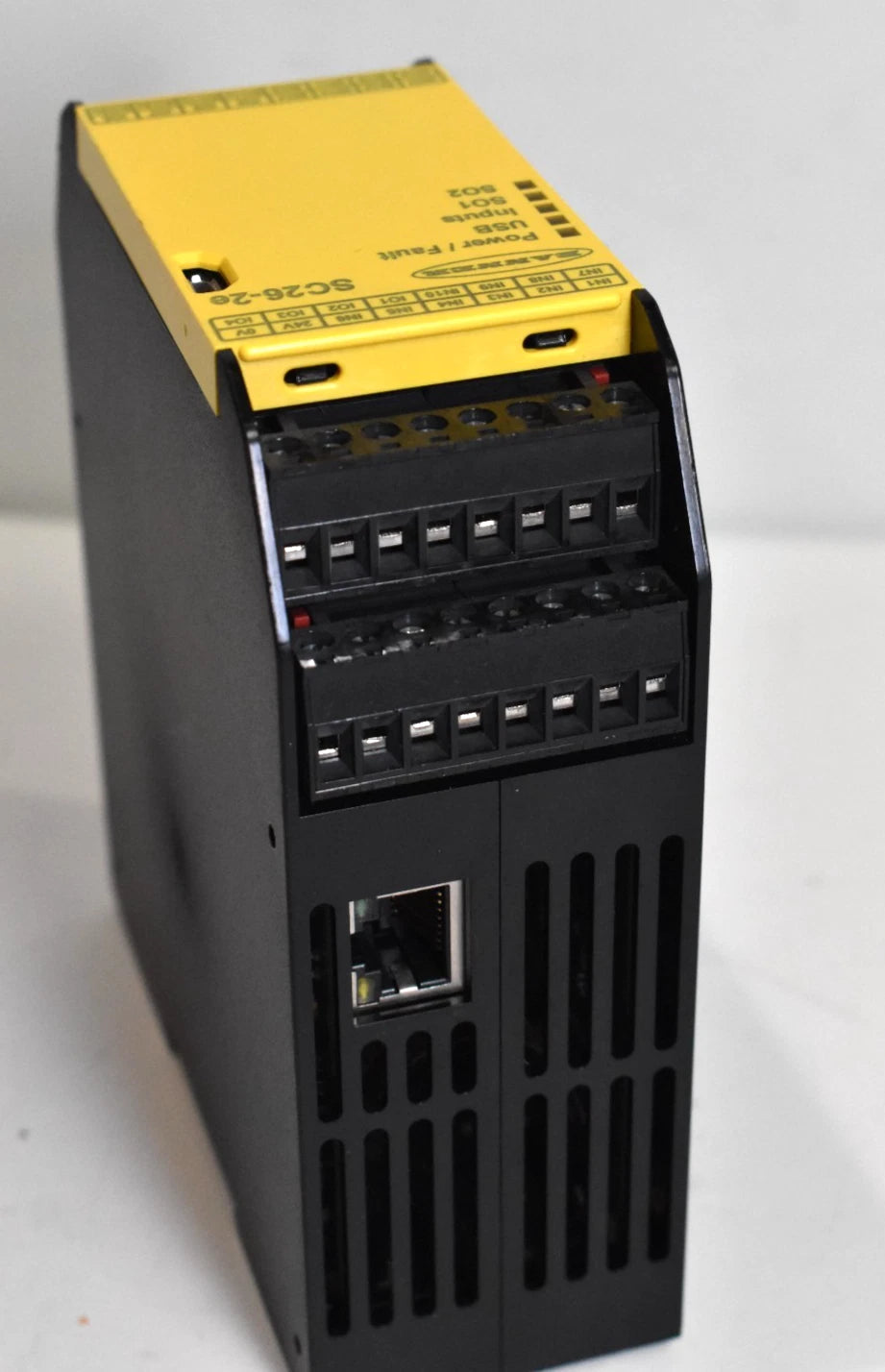

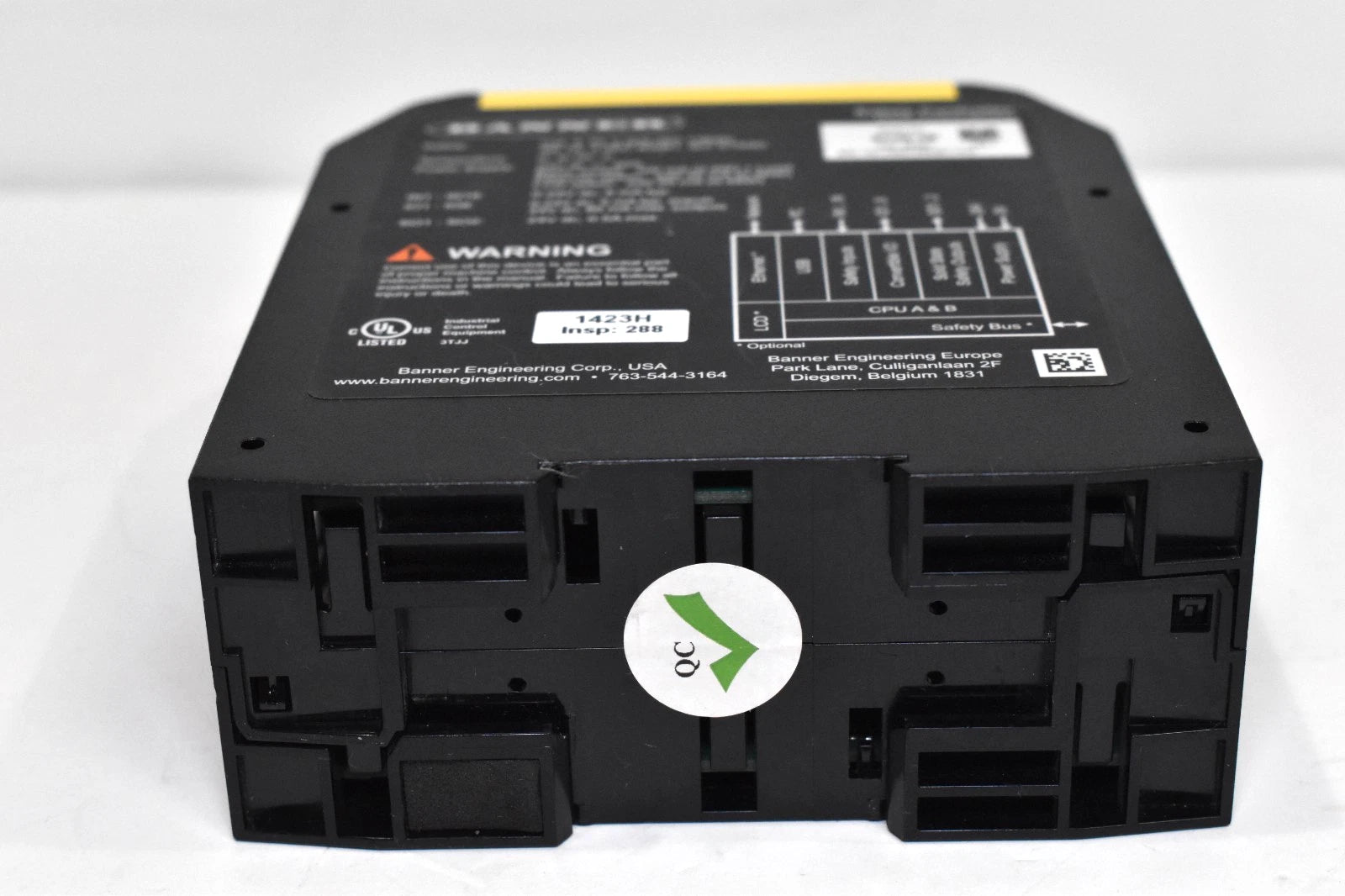

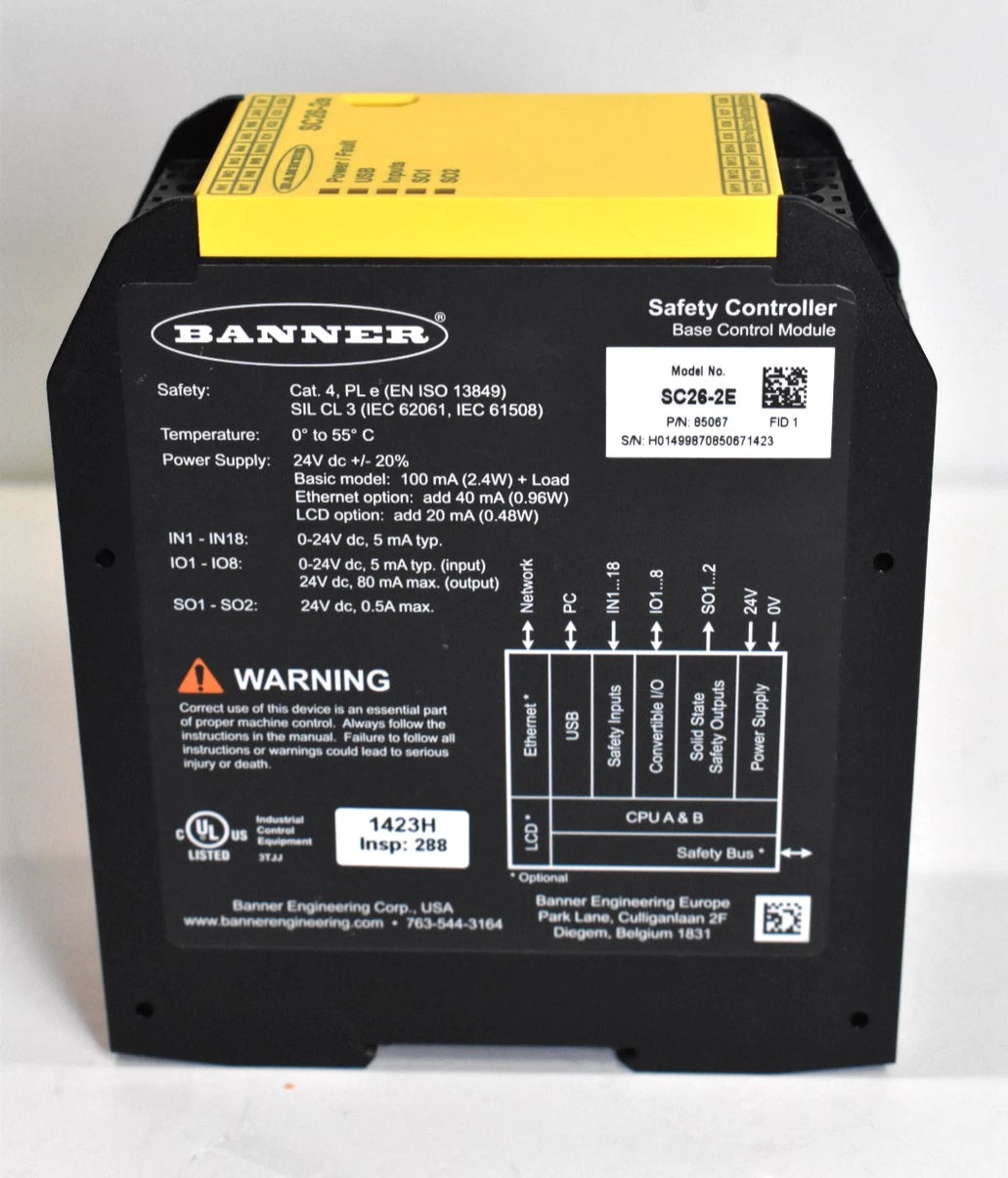

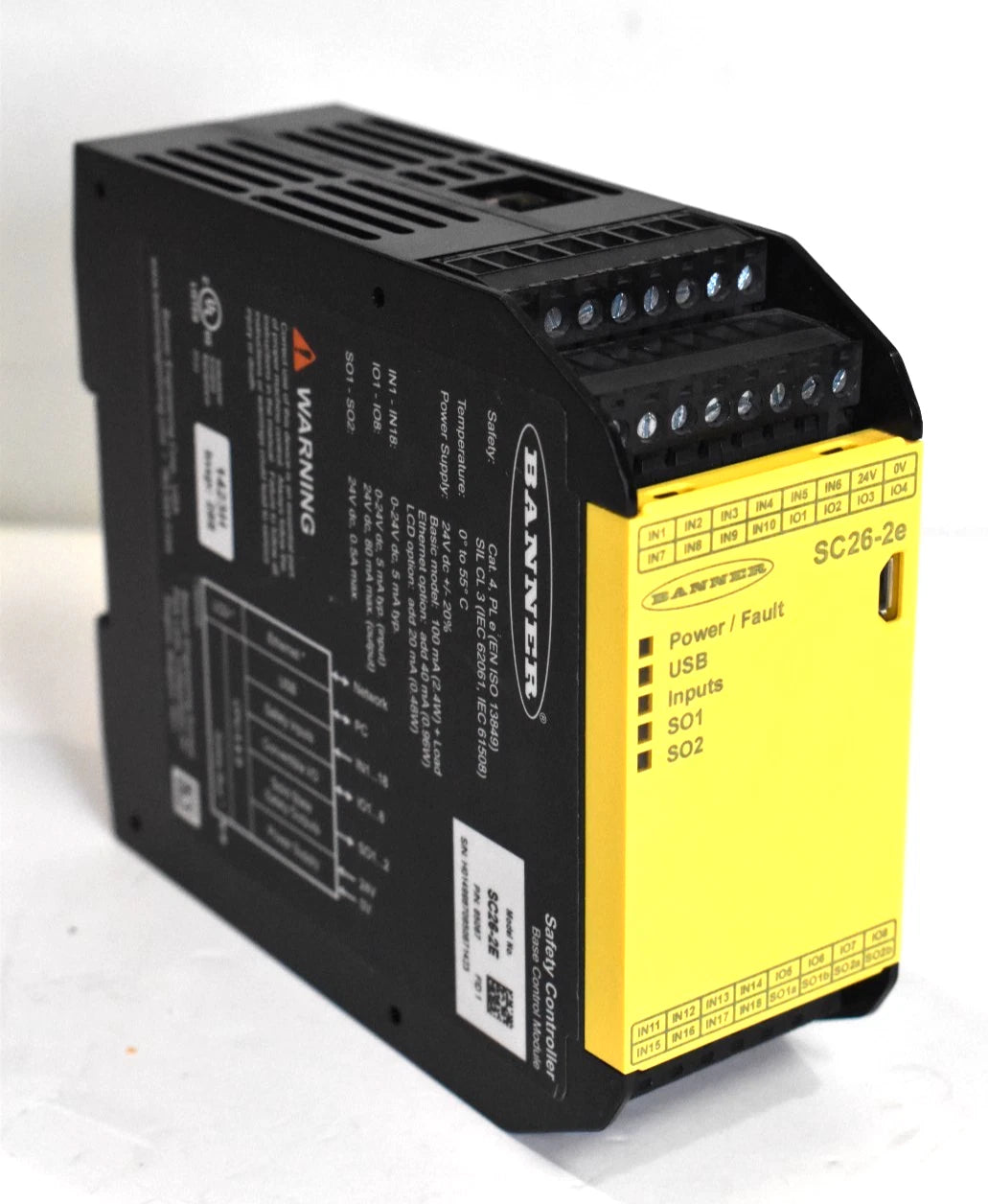

Banner Engineering SC26-2E Ethernet Safety Controller
- Regular price
- $822.00
- Sale price
- $822.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SC26-2E
Description
The Banner Engineering SC26-2E is an Ethernet-enabled configurable safety controller designed to monitor and control complex machine safety systems. Featuring 26 configurable safety inputs, integrated industrial Ethernet communications, and certified Category 4, PLe, and SIL3 safety performance, it provides flexible machine safeguarding with seamless PLC and network integration.
Technical Specifications
| Condition | New |
| Brand | Banner Engineering |
| Part Number | SC26-2E |
| Category | Safety Systems |
| Subcategory | Safety Controller |
| Product Type | Configurable Safety Controller |
| Series | SC26-2 |
| Supply Voltage | 24 VDC |
| Power Supply | DC |
| Safe Inputs | 26 Configurable Digital Inputs |
| Convertible Inputs | 8 |
| Safe Outputs | 4 (2 OSSD Pairs) |
| Non-Safe Outputs | Up to 11 PNP |
| Communication | EtherNet/IP, PROFINET, Modbus/TCP, PCCC |
| Expandable | No |
| Safety Rating | Category 4, PLe, SIL3 |
| Protection Rating | IP20 (IP54 when installed in enclosure) |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Terminal |
| Operating Temperature | 0°C to +55°C |
| Dimensions (H × W × D) | 110 × 45 × 129 mm |
| Approval Agency | CE, cULus, UL |
| Weight | 0.68 lbs |
Information About SC26-2E
The SC26-2E is part of Banner Engineering's SC26 Series Safety Controllers, combining configurable safety logic with built-in EtherNet/IP, PROFINET, and Modbus/TCP communications. It supports 26 configurable digital safety inputs, four independently controlled safe outputs (two OSSD pairs), and up to eleven configurable non-safe PNP outputs. Designed for standalone machine safety applications, the controller monitors emergency stops, safety mats, gate switches, light curtains, muting functions, and two-hand controls. Its integrated Ethernet connectivity simplifies diagnostics, remote configuration, and communication with industrial control systems.
Key Features:
- SC26 Series Ethernet-enabled safety controller
- 26 configurable digital safety inputs
- Four independently controlled safety outputs (2 OSSD pairs)
- Up to 11 configurable non-safe PNP outputs
- Built-in EtherNet/IP, PROFINET, Modbus/TCP, and PCCC communications
- Supports E-Stops, light curtains, gate switches, safety mats, muting, and two-hand controls
- Certified to Category 4, PLe, and SIL3 safety standards
- Screw terminals with removable connectors
- DIN rail mounting
- Network configuration and diagnostics support
The SC26-2E delivers flexible standalone machine safety control with integrated industrial Ethernet communications.
Description
The Banner Engineering SC26-2E is an Ethernet-enabled configurable safety controller designed to monitor and control complex machine safety systems. Featuring 26 configurable safety inputs, integrated industrial Ethernet communications, and certified Category 4, PLe, and SIL3 safety performance, it provides flexible machine safeguarding with seamless PLC and network integration.
Technical Specifications
| Condition | New |
| Brand | Banner Engineering |
| Part Number | SC26-2E |
| Category | Safety Systems |
| Subcategory | Safety Controller |
| Product Type | Configurable Safety Controller |
| Series | SC26-2 |
| Supply Voltage | 24 VDC |
| Power Supply | DC |
| Safe Inputs | 26 Configurable Digital Inputs |
| Convertible Inputs | 8 |
| Safe Outputs | 4 (2 OSSD Pairs) |
| Non-Safe Outputs | Up to 11 PNP |
| Communication | EtherNet/IP, PROFINET, Modbus/TCP, PCCC |
| Expandable | No |
| Safety Rating | Category 4, PLe, SIL3 |
| Protection Rating | IP20 (IP54 when installed in enclosure) |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Terminal |
| Operating Temperature | 0°C to +55°C |
| Dimensions (H × W × D) | 110 × 45 × 129 mm |
| Approval Agency | CE, cULus, UL |
| Weight | 0.68 lbs |
Information About SC26-2E
The SC26-2E is part of Banner Engineering's SC26 Series Safety Controllers, combining configurable safety logic with built-in EtherNet/IP, PROFINET, and Modbus/TCP communications. It supports 26 configurable digital safety inputs, four independently controlled safe outputs (two OSSD pairs), and up to eleven configurable non-safe PNP outputs. Designed for standalone machine safety applications, the controller monitors emergency stops, safety mats, gate switches, light curtains, muting functions, and two-hand controls. Its integrated Ethernet connectivity simplifies diagnostics, remote configuration, and communication with industrial control systems.
Key Features:
- SC26 Series Ethernet-enabled safety controller
- 26 configurable digital safety inputs
- Four independently controlled safety outputs (2 OSSD pairs)
- Up to 11 configurable non-safe PNP outputs
- Built-in EtherNet/IP, PROFINET, Modbus/TCP, and PCCC communications
- Supports E-Stops, light curtains, gate switches, safety mats, muting, and two-hand controls
- Certified to Category 4, PLe, and SIL3 safety standards
- Screw terminals with removable connectors
- DIN rail mounting
- Network configuration and diagnostics support
The SC26-2E delivers flexible standalone machine safety control with integrated industrial Ethernet communications.
